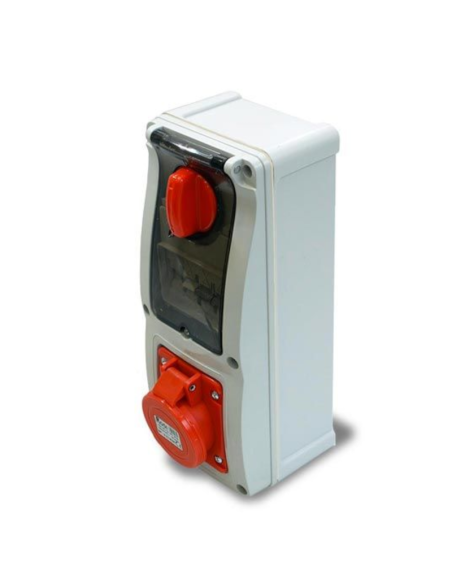

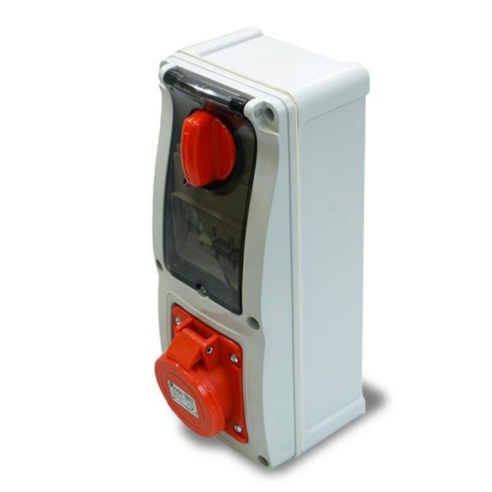

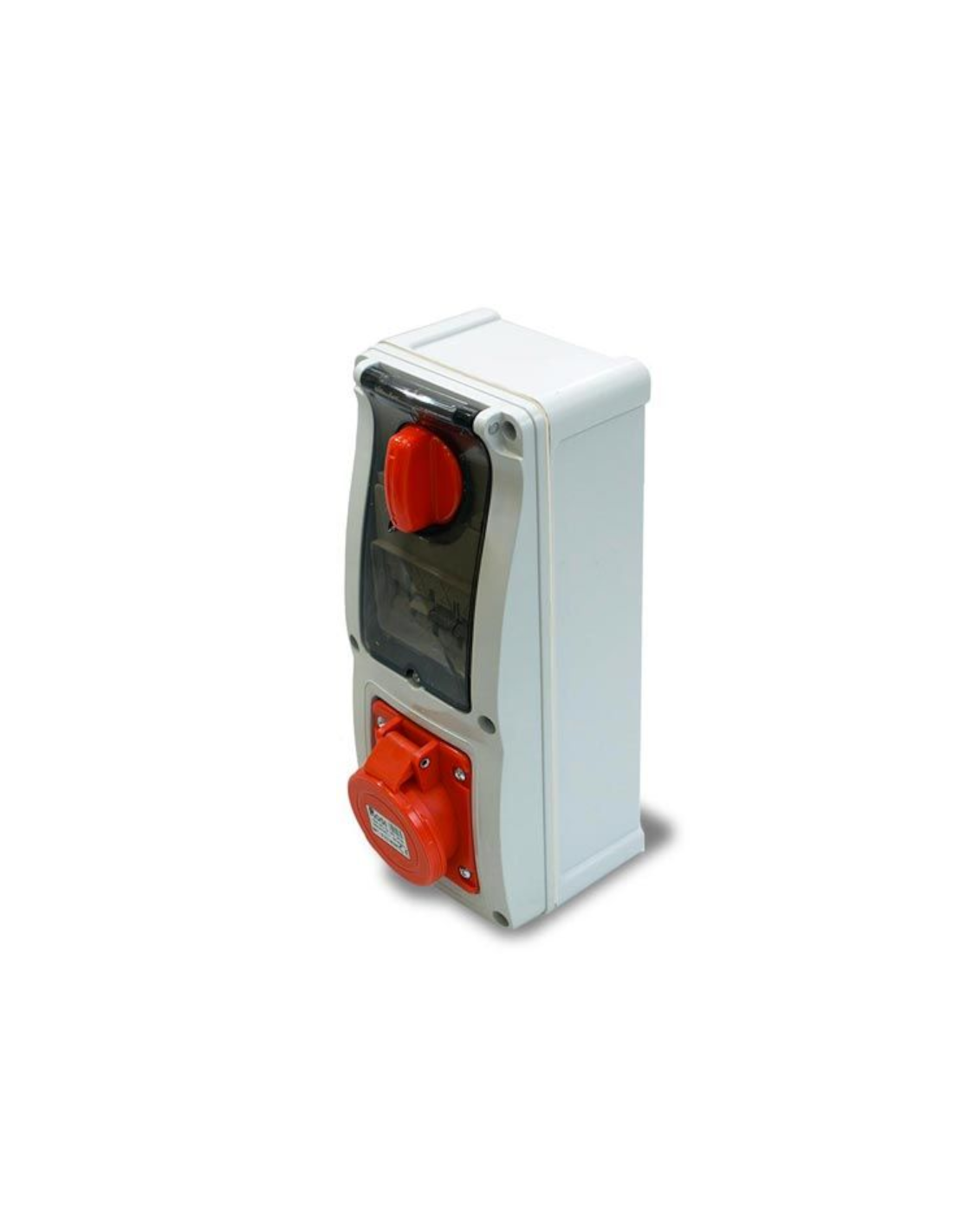

Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 5-pole, 32A, IP54 - Rosi 16.3434R6MT

Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 5-pole, 32A, IP54 - Rosi 16.3434R6MT

Name: Vertical interlocked socket outlet with disconnect switch, with circuit breaker, 380V, 5-pole, 32A, IP54 - Rosi 16.3434R6MT
Brand: Rosi
SKU: 61.402.0520013
Price: 164.8 EUR
Availability: InStock

SKU 61.402.0520013

In stock 7 Items

€164.80

Tax included

The thermal-magnetic circuit breaker is operated and reset directly via the external knob without the need to open the door or covers.

Description

Commercial series	Series 16 IEC 309 IP54
Number of poles	3P+N+T
Current	32 A
Voltage	380 ~ 415 Vac
Thermal-magnetic circuit breaker	Curve C, 6kA
IP Rating	IP54
IK Rating	8
Operating temperature	-25°C ~ +70°C
Glow wire	+650 / +850 °C
Material	Abs, nylon, rubber

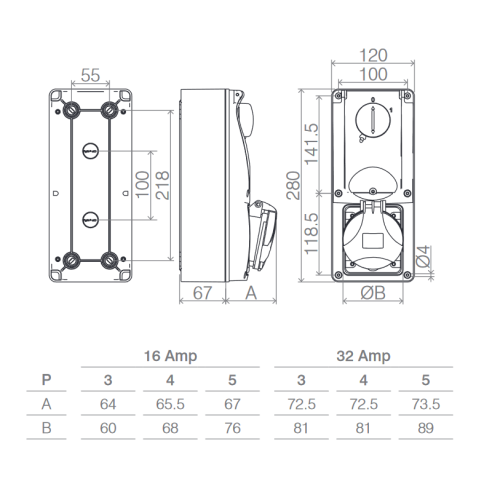

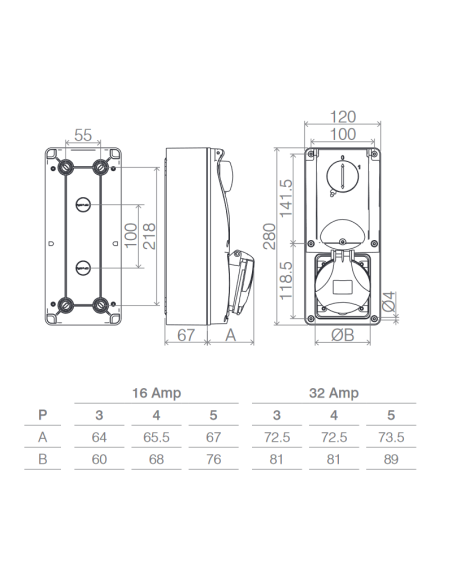

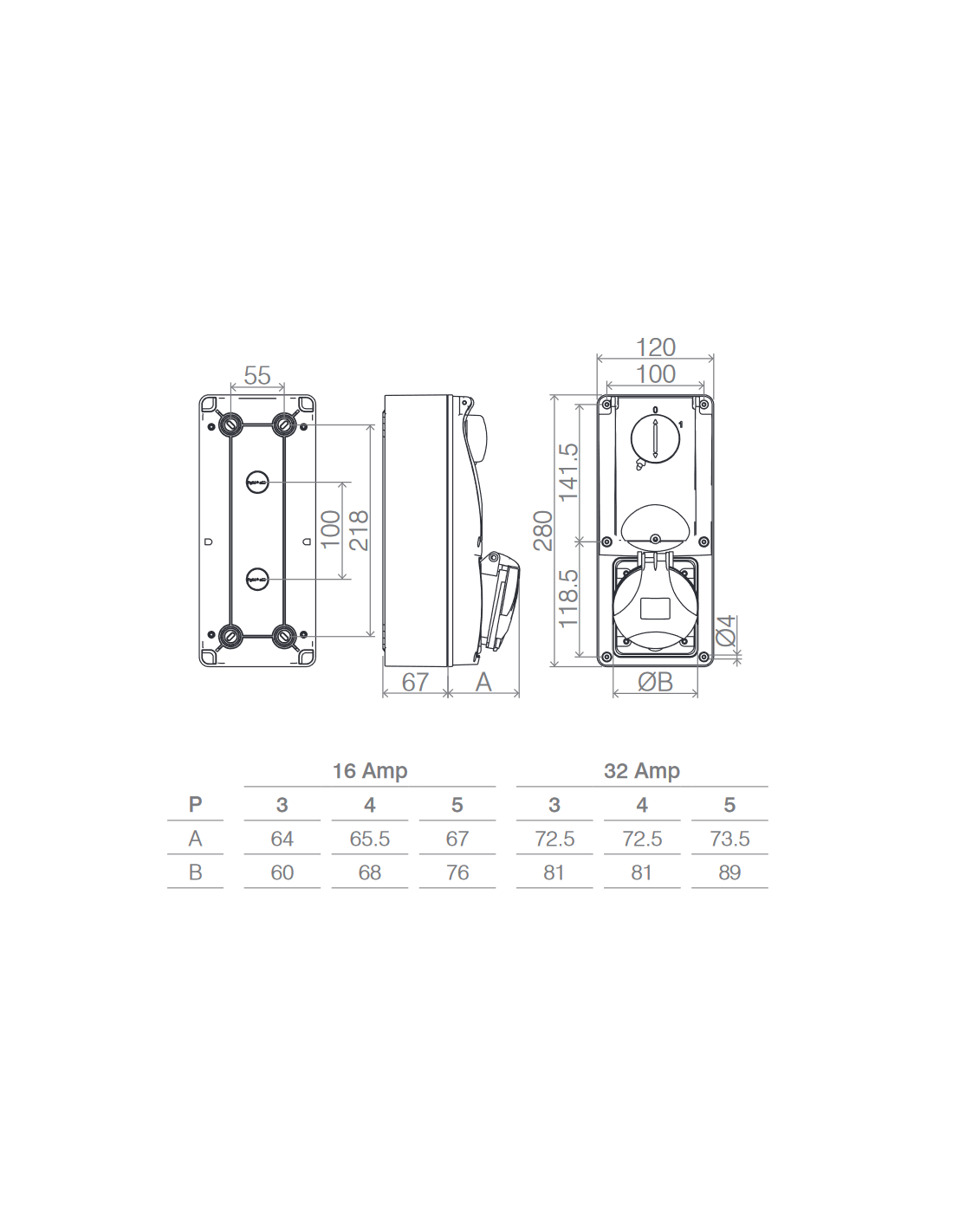

Dimensions	28 x 12 x 14 cm
Weight	1.27 kg
EAN	8033509918783
Model	16.3434R6MT
Manufacturer	Rosi srl
