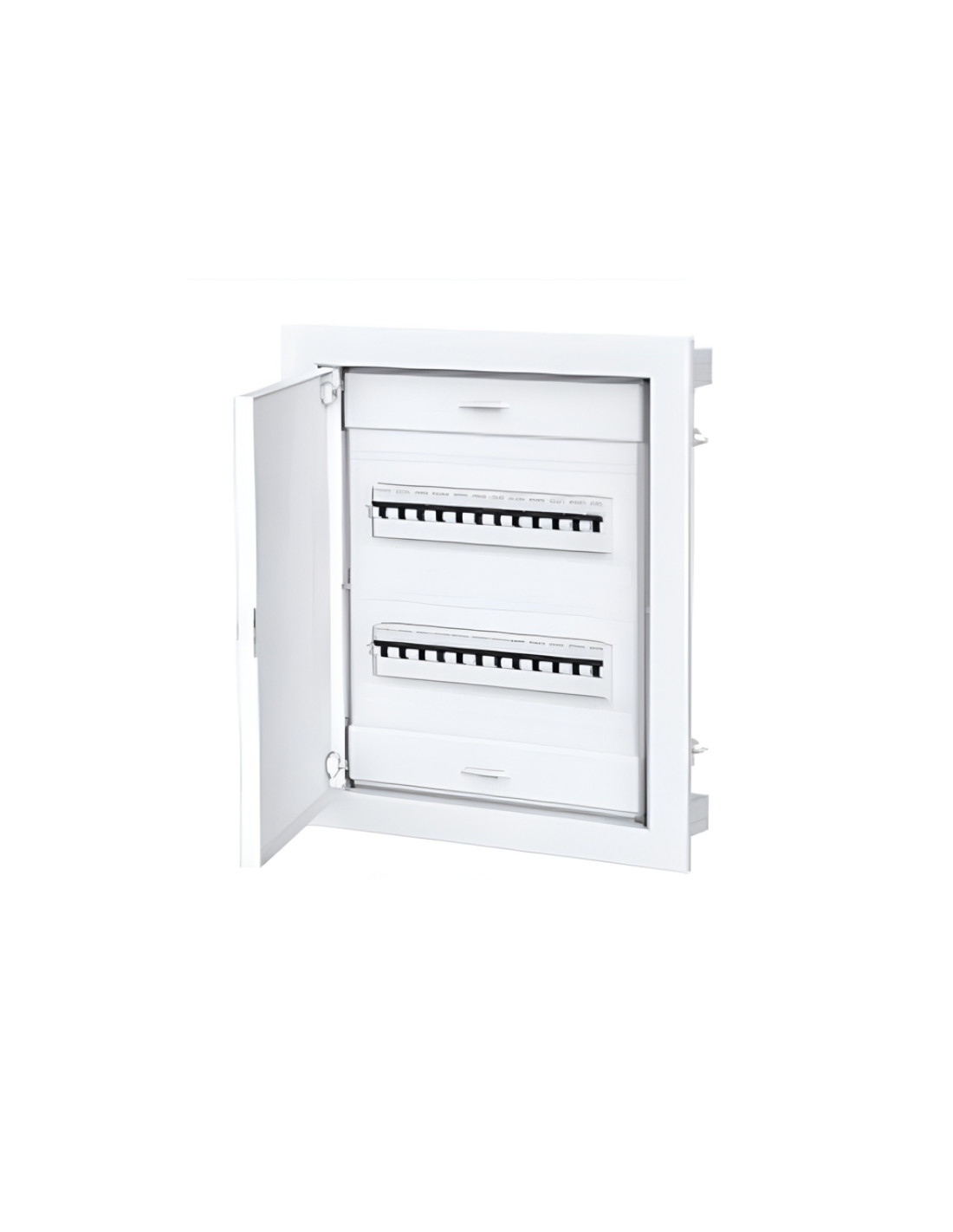

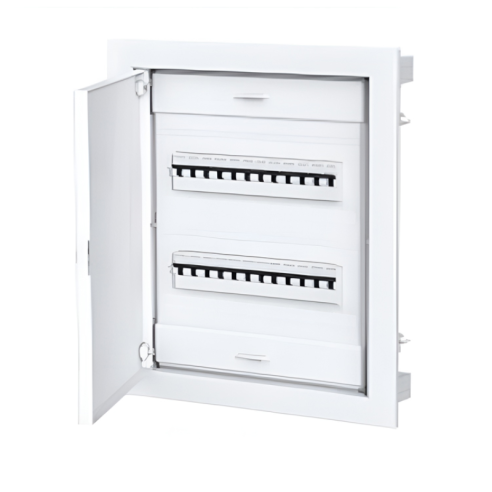

Flush-mounted switchboard with metal door, for plasterboard, 24+4 (2x12) modules, white, IP40 - Elettrocanali EC63624

- With accessories for mounting on plasterboard and hollow walls.
- Reversible metal front door and frame, colour white RAL 9003.
- Shock-proof technopolymer housing, IK07.
- Heat resistance: thermopressure with sphere 70° C.
- Abnormal heat resistance according to IEC 60695-2-11: 650° / 850° C.
- Rated current: up to 63A, 400V~, class II.
- Installation temperature: min. -15° C, max. +60° C.
- DIN-rail in galvanised steel EN 50022, already assembled on removable support, unused module cover cap included.
- Insulated ground/neutral connectors, suitable for Glow Wire Test of 960°C.
- DIN EN 50022 galvanised steel bar mounted on removable and adjustable support.
- Packaged in single carton for better storage of parts to be installed later.
- Front door shrink-wrapped.
- Equipped with bubble for perfect horizontal alignment.
- Extra-flat design: protrusion from wall of only 9 mm constant.
- Lockable inner door for DIN modules.
- Concealed central opening system.
