ICE 680R Analogue Multimeter

Name: ICE 680R Analogue Multimeter
Brand: ICE
SKU: 40.001.0012002
Price: 99.9 EUR
Availability: InStock

SKU 40.001.0012002

In stock 36 Items

€99.90

Tax included

Functions: DC voltage, AC voltage, DC current, AC current, resistance, capacitance, decibel, diode and transistor test.

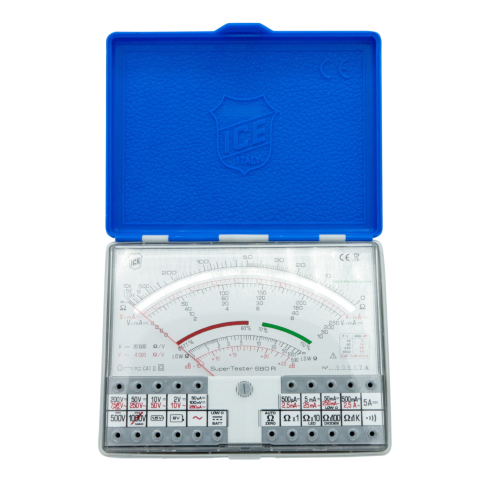

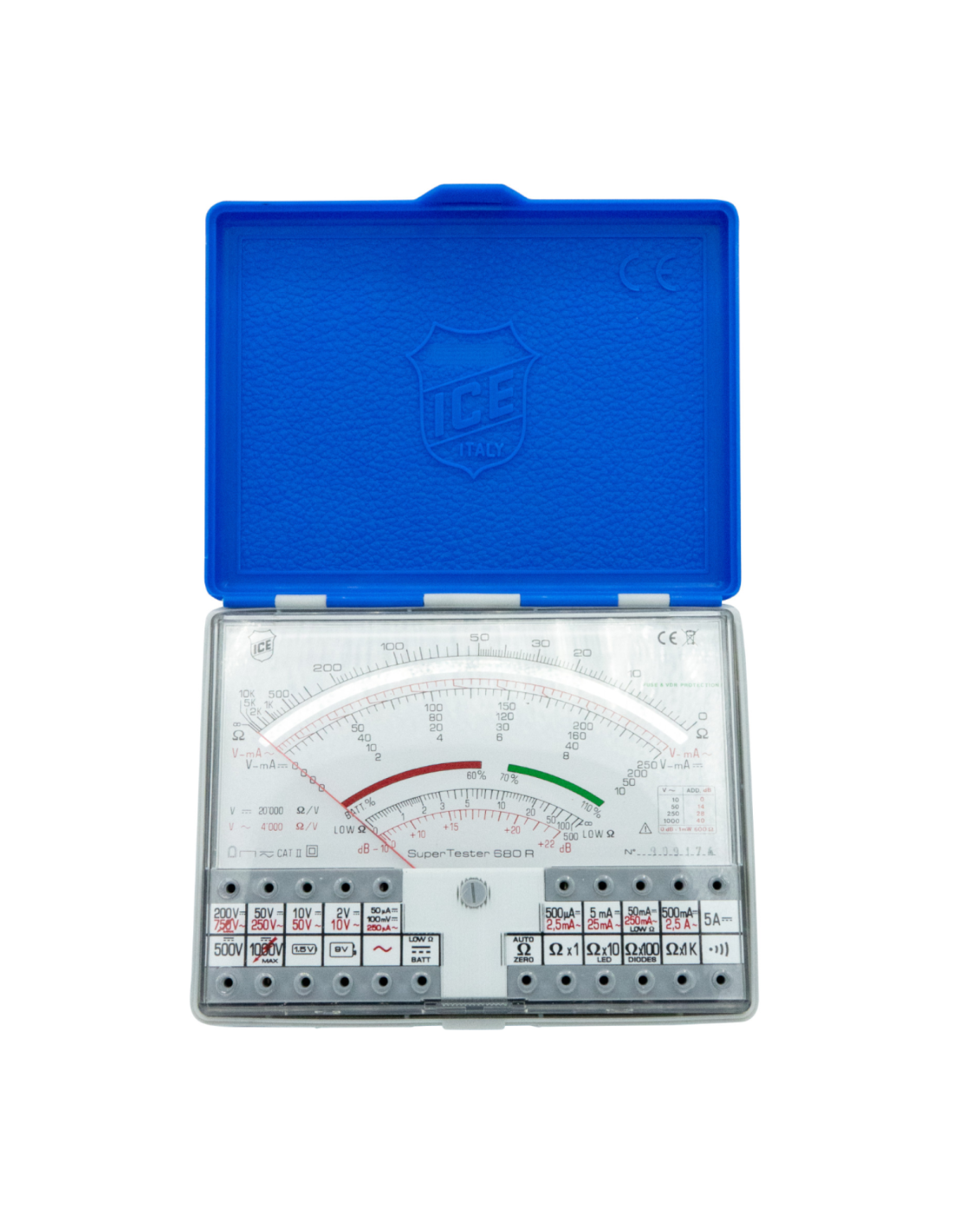

The ICE 680R Analogue Multimeter is a professional high-precision instrument.
It is the model that has made history, not only for ICE Instrumentation, but for the entire control and measurement instrument sector.
The 680R is still produced with the same design as when it was made in the 1960s, not out of simple taste for industrial archaeology forms but because it would be difficult to find a rational reason for improvement.
680 R continues to be the picture of functionality associated with precision.

Features:
- Large scale (unique in the world) 100° with minimal external dimensions of the instrument;
- High accuracy for an analogue type multimeter (class 2);
- Quick ohmmeter operation (no manual zeroing required);
- Large selection of accessories for particular analogue measurements;
- Tips with ultra-soft, heat-resistant silicone cable;
- Measurement of low ohmmetrical values (down to a tenth of an ohm);
- Complies with IEC 1010 CAT. II 750V AC - 1000V DC.

Description

Sensitivity	20 kΩ/V DC - 4 kΩ/V AC
Accuracy	Volt-Ampère DC: ±2% f.s.
	Volt-Ampère AC: ±2% f.s.
	Ohm: ±2% of the angular amplitude of the scale
Portate	Volts DC: 100 mV - 2V - 10V - 50V - 200V - 500V - 1000V
	DC amps: 50 μA - 500 μA - 5 mA - 50 mA - 500 mA - 5 A
	AC Volts: 10V - 50V - 250V - 750V
	AC amps: 250 μA - 2.5 mA - 25 mA - 250 mA - 2.5A
	Ohm: Ωx1 - Ωx10 - Ωx100 - Ωx1000 (measuring range 0 to 10 MΩ)
	Capacity: 22 μF - 220 μF - 2200 μF - 22000 μF (ballistic method measurement)
	Decibel: range in four ranges ( -10 + 62 dB)
Functions	Continuity test with buzzer signal
	diode and transistor testing
	LED test
	Battery test 1.5 Volt and 9 Volt
	Low Ω test 0 to 500 Ω
Protections	Galvanometer with silicon diodes - measurements in Ω with fuse and varistors
Power supply	9V battery type 6F22
Dimensions	128 x 96 x 35 mm
Weight	300 g
Accessories	Pair of tips
	Low Ω jumper
	Spare fuse

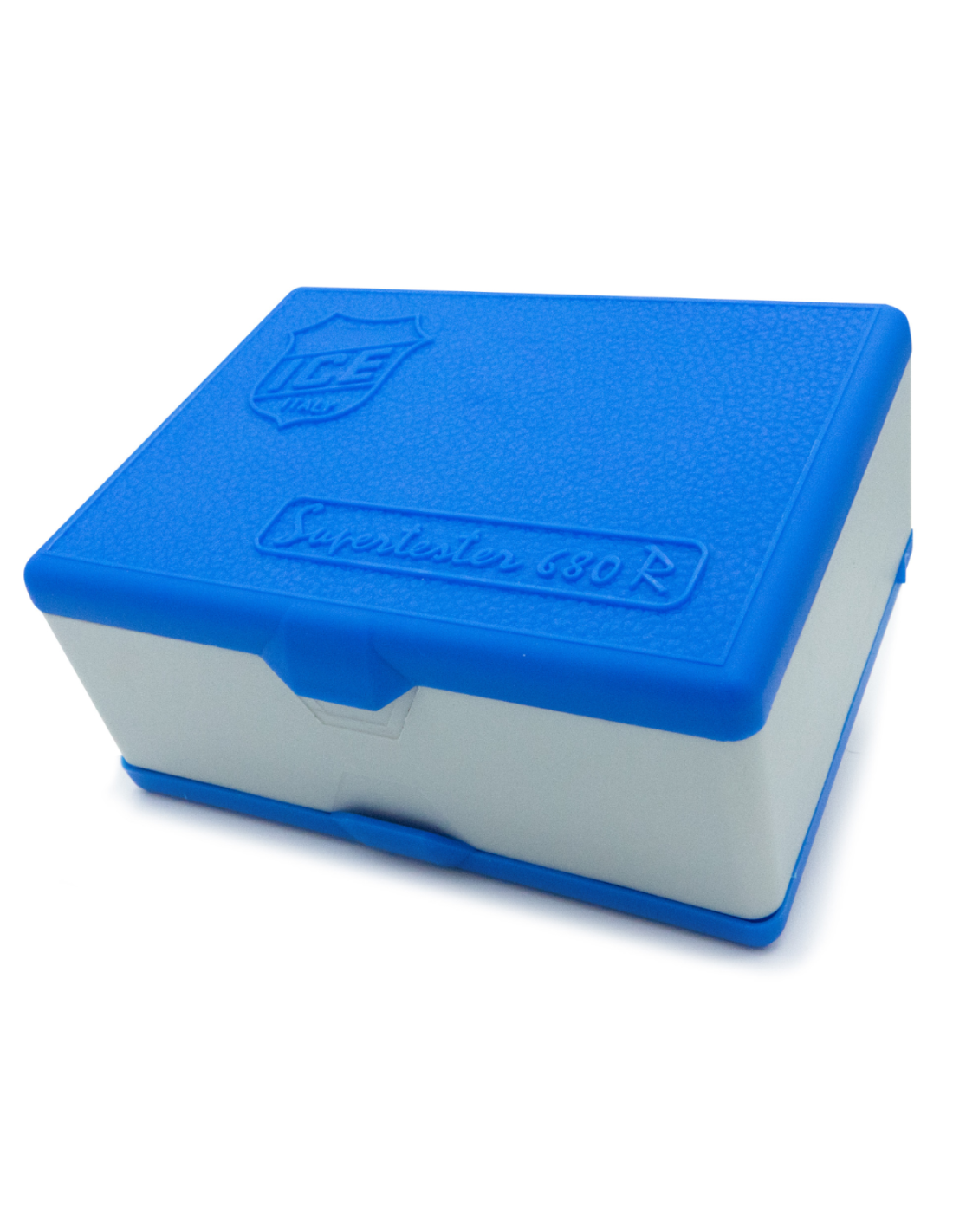

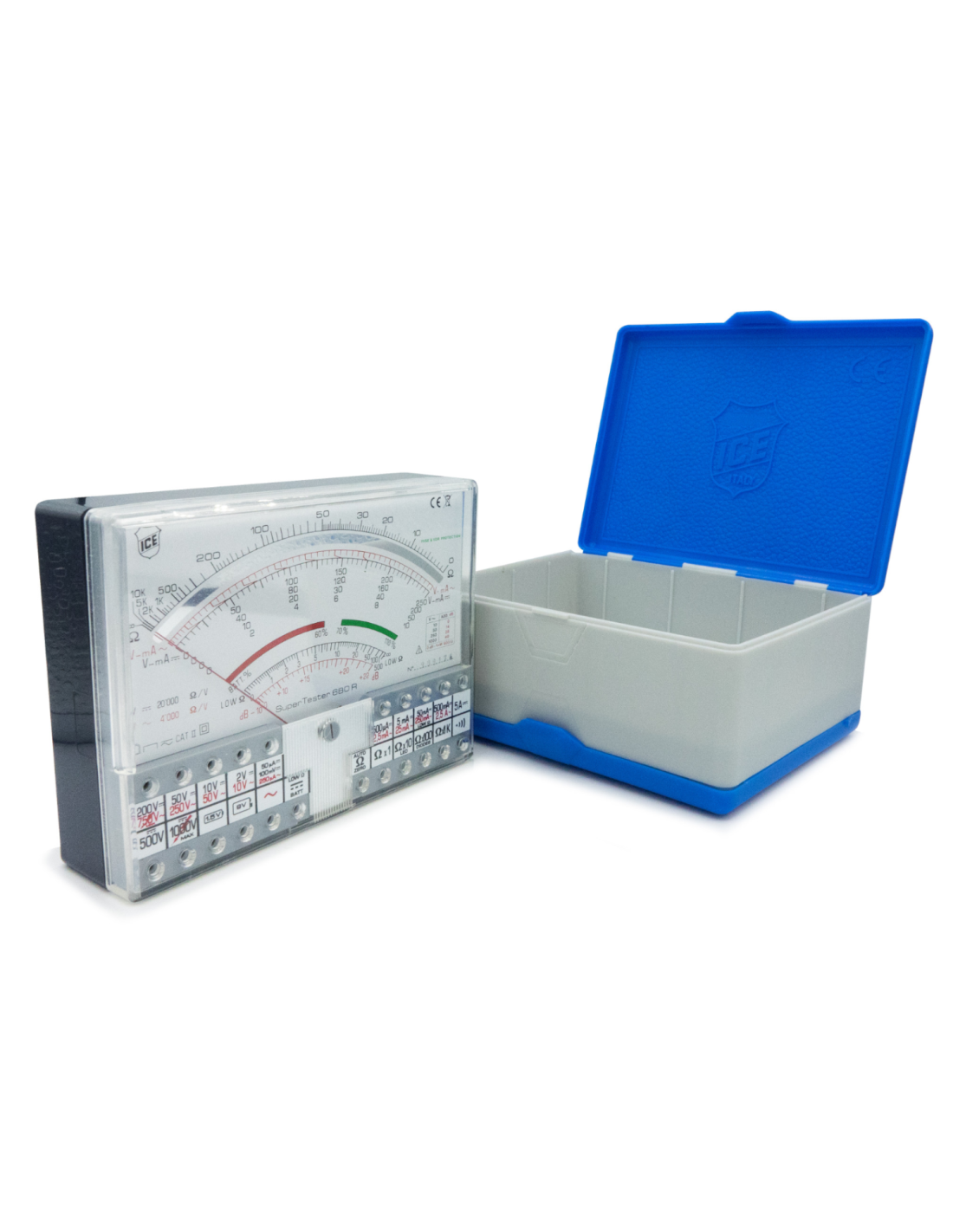

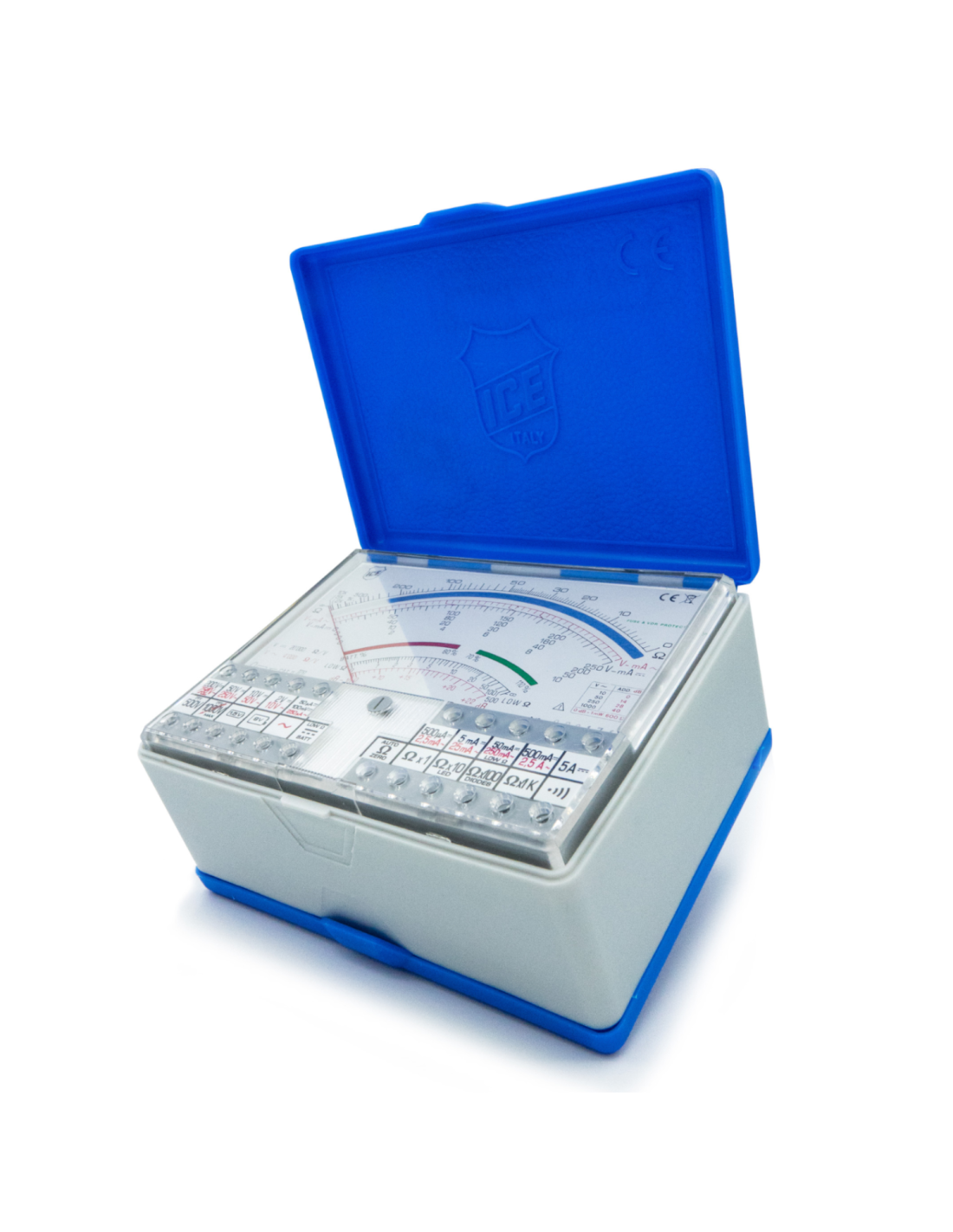

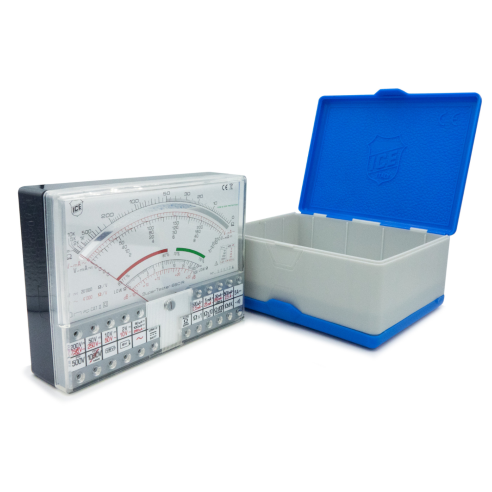

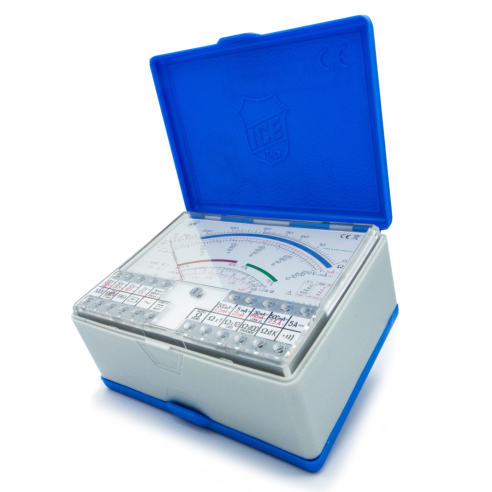

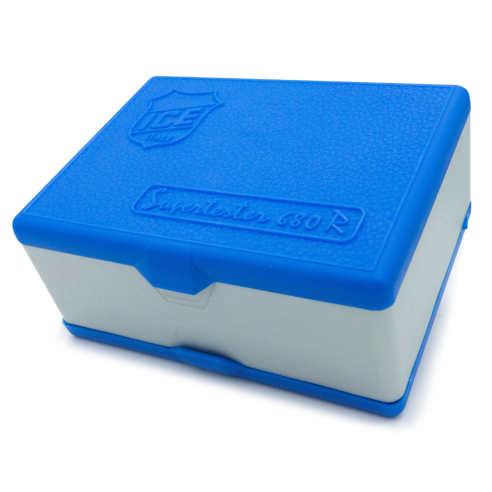

	Shock-proof, double-bottomed case for housing equipment and 45° positioning of the instrument
	Instruction manual

Product Details

Brand: ICE
Functions: AC current
AC voltage
Capacity
Continuity test
DC current
DC voltage
Decibel
Diode test
LED test
Resistance
Transistor test
Type of instrument: Analog
Replaces product code: 4983
