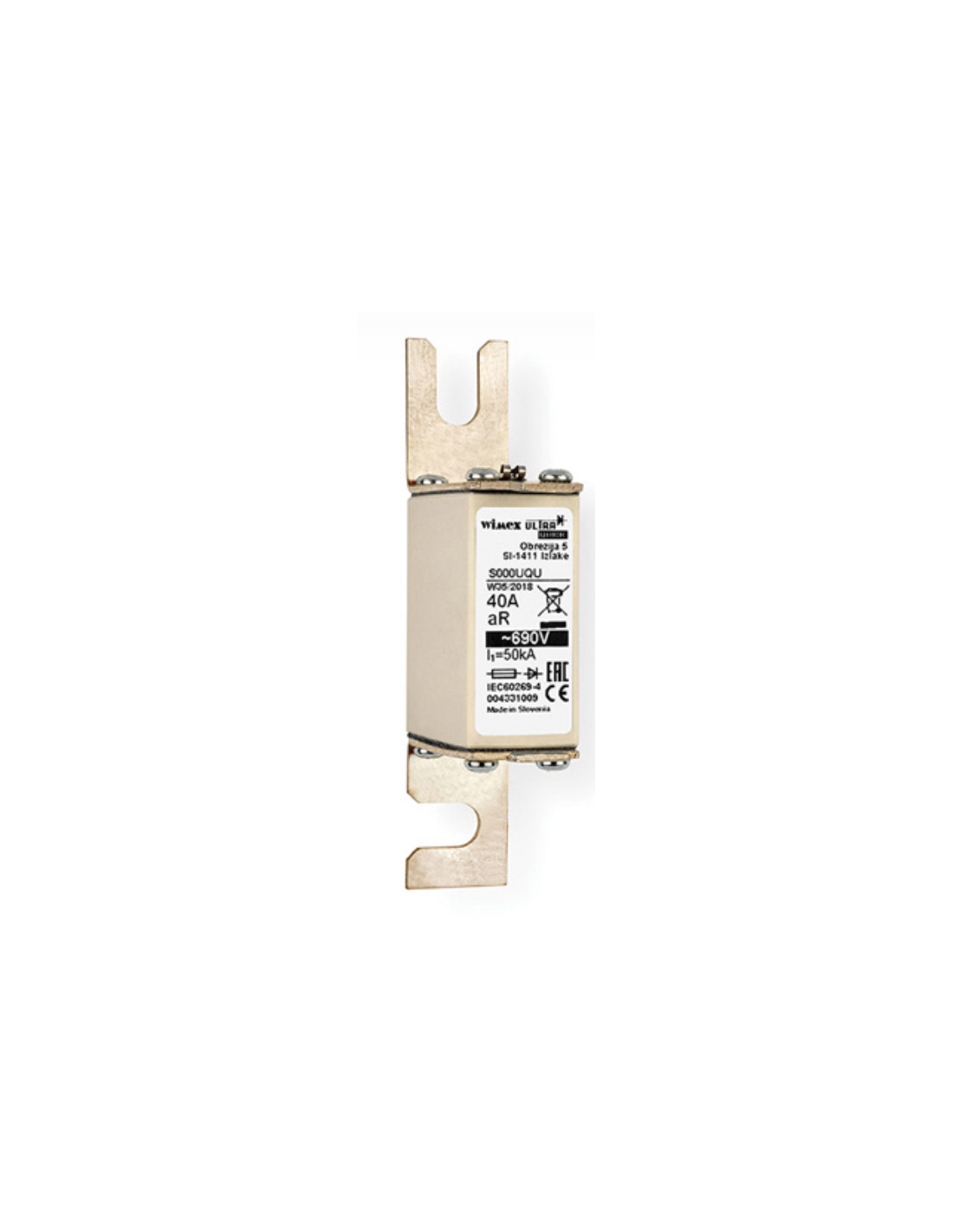

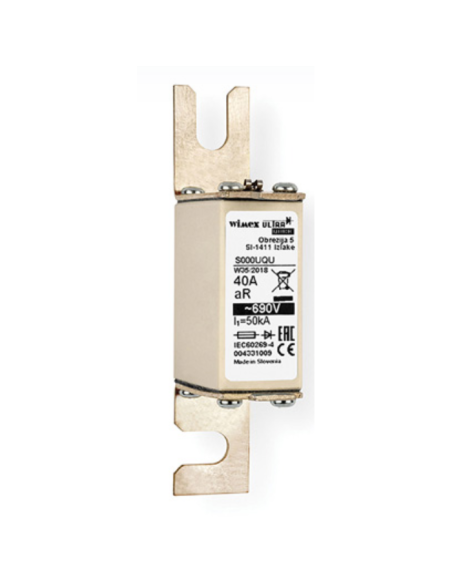

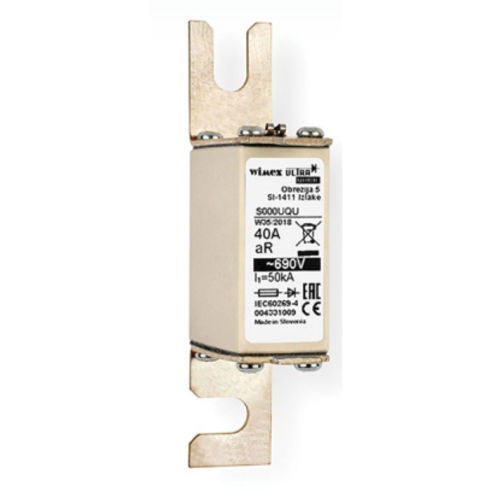

Fuse NH 000 B aR, super fast, with striker, 690V 40A, bolt fixing - Wimex 5522007

Fuse NH 000 B aR, super fast, with striker, 690V 40A, bolt fixing - Wimex 5522007

Name: Fuse NH 000 B aR, super fast, with striker, 690V 40A, bolt fixing - Wimex 5522007
Brand: Wimex
SKU: 61.001.2204208
Price: 22.4 EUR
Availability: InStock

SKU 61.001.2204208

In stock 15 Items

€22.40

Tax included

NH super-rapid industrial fuses, characterised by high breaking capacity and low specific energy throughput (I²t), are manufactured with blade and bolt fixing, with both aR (short-circuit protection) and gR (full short-circuit and overload protection) characteristics.
Reference standards: IEC 32.1-.7,IEC EN 60269.1-.4, DIN 43653.

Description

Rated voltage	690 Vac / 440 Vdc
Interrupting power (lk)	690V AC 50KA; 440V DC 20KA
Material	Steatite
Intervention characteristic	Super fast
Interruption range	AR
I²t	1500
Pw	11
Reference Standards	CEI 32.1-.7,IEC EN 60269.1-.4, DIN 43653
Model	5522007
Manufacturer	Wimex
