Switching power supply ultracompact, 20W, AC 100-240V, DC 12V 1.66A, IP67, 5.5x2.1mm plug - AlcaPower IP1220R

Switching power supply ultracompact, 20W, AC 100-240V, DC 12V 1.66A, IP67, 5.5x2.1mm plug - AlcaPower IP1220R

Name: Switching power supply ultracompact, 20W, AC 100-240V, DC 12V 1.66A, IP67, 5.5x2.1mm plug - AlcaPower IP1220R
Brand: Alcapower
SKU: 05.002.0607002
Price: 9.8 EUR
Availability: InStock

SKU 05.002.0607002

In stock 275 Items

€9.80

Tax included

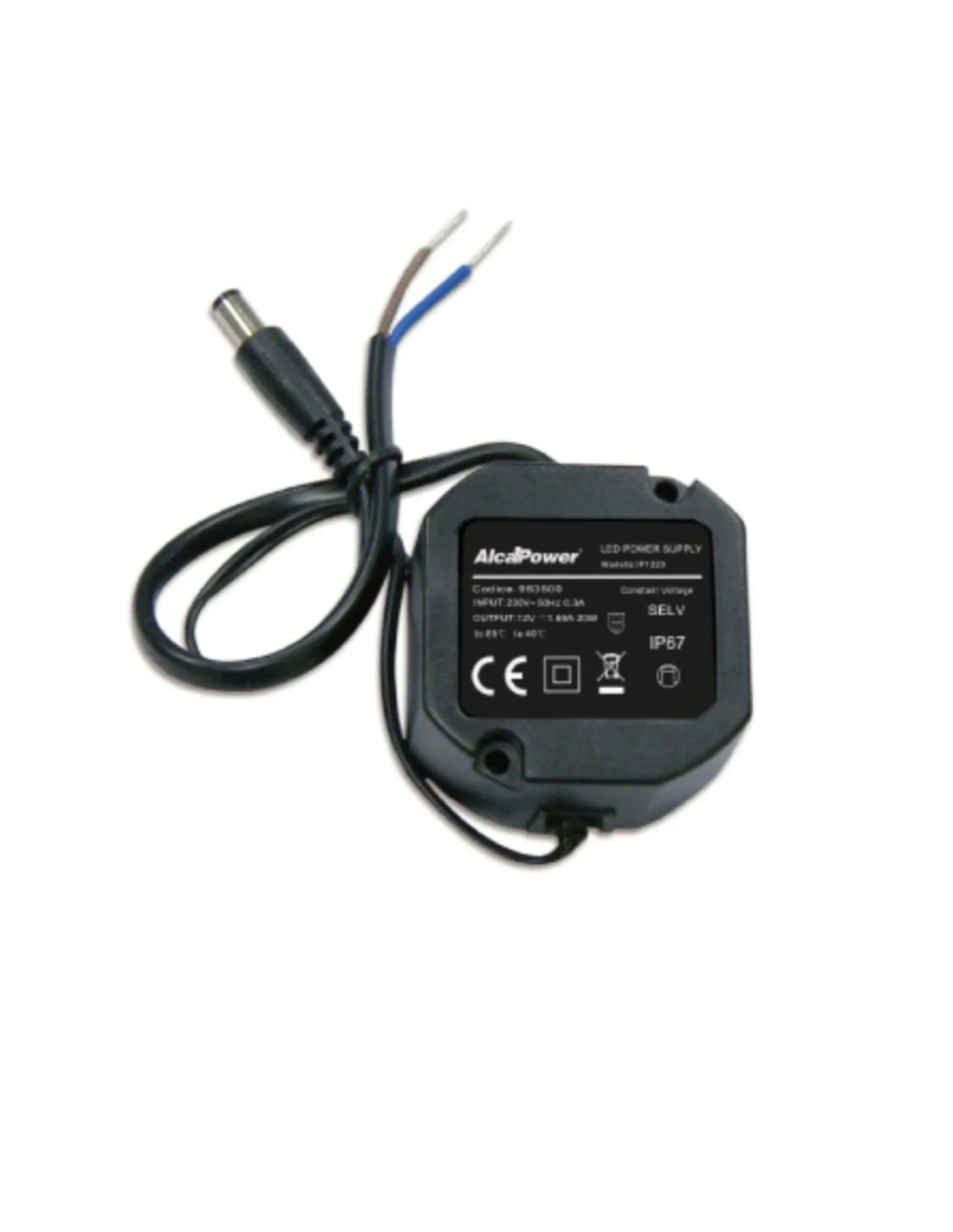

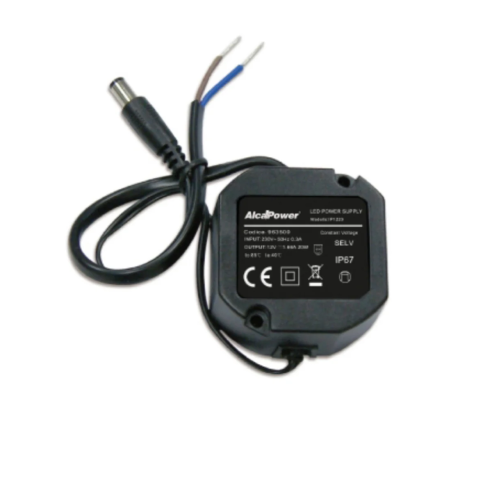

The ultracompact IP1220R switching power supply is a waterproof IP67 unit with DC 5.5x2.1mm plug for lighting applications in humid or outdoor settings.
With universal 100-240V AC 50/60Hz input and 12V DC ±5% 1.67A max output (20W nominal), it features high average efficiency 89.11% and no-load consumption <0.1W.
Class II insulation, full protections and start-up time <3s make it safe and efficient.
Ultracompact dimensions 50x50x25mm with 120cm AC input cable and 20cm DC output cable, ideal for discreet installations.
Wide operating temperature range and IP67 rating ensure reliability in protected exteriors, bathrooms or moist areas.
Perfect for powering 12V LED strips with standard plug.

Description

Input voltage	100-240V AC 50/60Hz
Input current	0.4A max
Insulation class	Class II
Output voltage	12V DC ±5%
Output current	1.67A max
Nominal power	20.0W
Average active efficiency	89.11%
Low load efficiency (10%)	83.33%
No-load consumption	<0.1W
Start-up time	<3s
Protection rating	IP67
AC input cable	120cm / 2x0.75mm²
DC output cable	20cm with DC plug 5.5x2.1mm
Dimensions	50x50x25mm
Weight	140g
Product code	963521
Model	IP1220R
Manufacturer	AlcaPower
