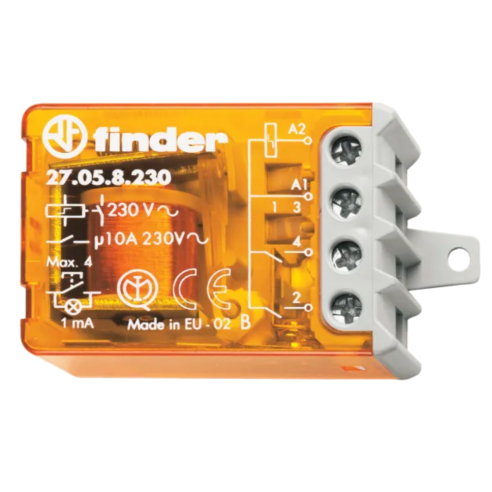

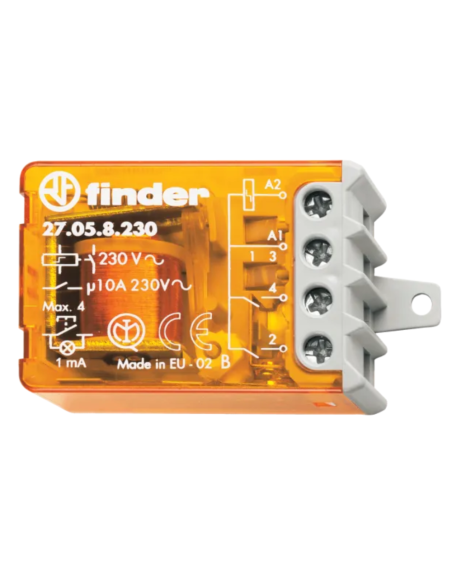

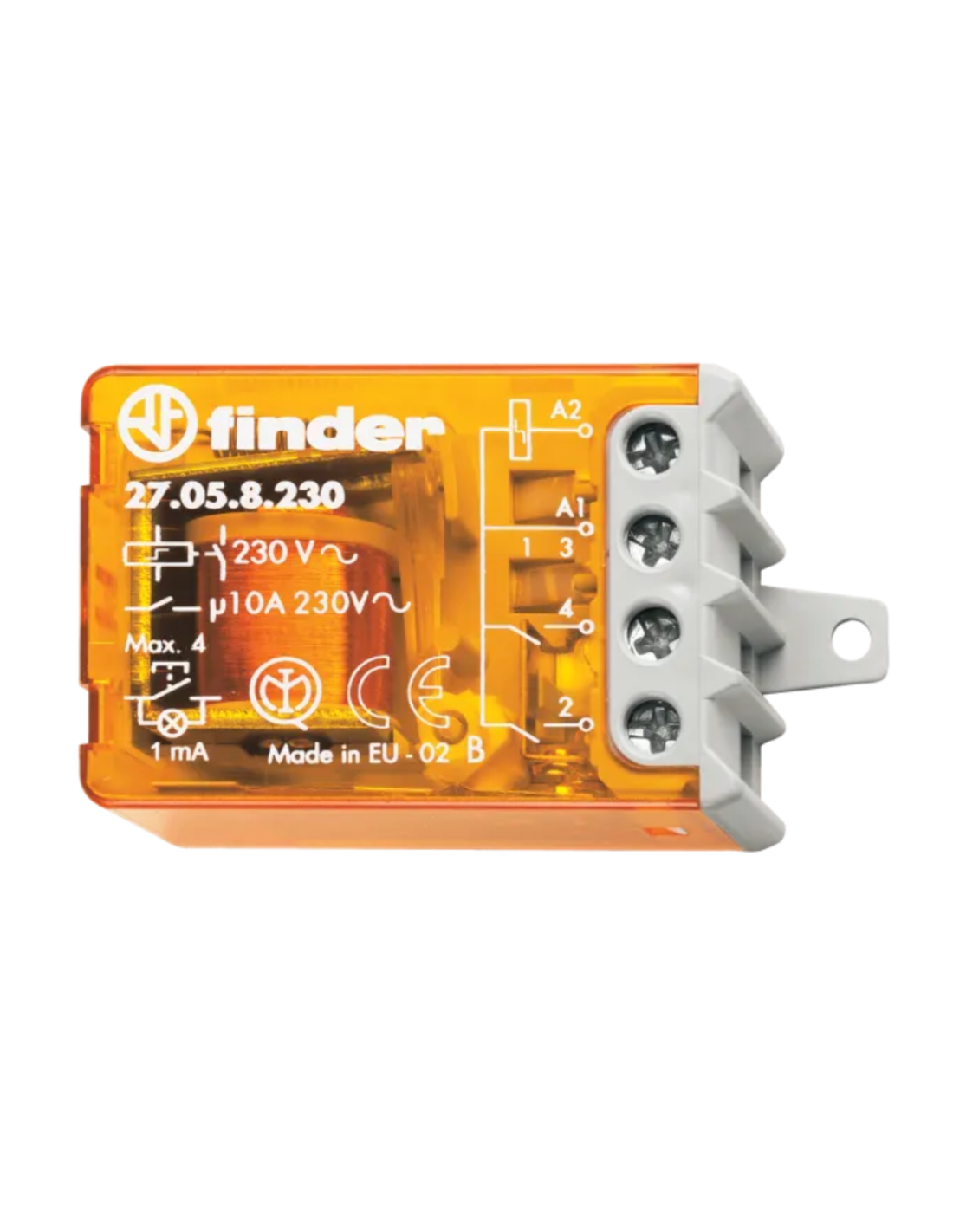

Stepper relay, electromechanical impulse, 230 Vac, 2 NO contacts, 10A, Series 27 - Finder 27.05.8.230.0000

Stepper relay, electromechanical impulse, 230 Vac, 2 NO contacts, 10A, Series 27 - Finder 27.05.8.230.0000

Name: Stepper relay, electromechanical impulse, 230 Vac, 2 NO contacts, 10A, Series 27 - Finder 27.05.8.230.0000
Brand: Finder
SKU: 61.181.0102005
Price: 14 EUR
Availability: InStock

SKU 61.181.0102005

In stock 12 Items

€14.00

Tax included

Electromechanical impulse relay with coil circuit and common excitation contacts.
Connection with 24 light buttons via adapter 027.00.

Features:
- Socket terminals;
- AC coil;
- Panel mounting;
- Cadmium-free contacts;
- Italian patent.

Quantity	Unit price	You Save
10	€13.30	€7.00

Description

Contact characteristics
Number of contacts	2 NO
Rated current/maximum instantaneous current	10A / 20A
Rated voltage	230 Vac
Nominal load in AC1	2300VA
Nominal load in AC15	500VA
Lamp range	Incandescent / halogen: 1000W
	Fluorescents: 400W
	CFL: 200W
	Led: 200W
	Halogen with electronic transformer: 200W
	Halogen with electromagnetic transformer: 400W
Minimum switchable load	10mW
Contact material	AgNi
Coil characteristics
Nominal supply voltage	230Vac
General features
Mechanical durability	300 x 10³ cycles
Electrical durability	100 x 10³ cycles
Command pulse duration	0,1 S
Product Information
Model	27.05.8.230.0000
Manufacturer	Finder
