Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101
Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101
Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101
Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101
Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101

Staircase light timer, on/off delay function, adjustment 0.1 seconds ~ 10 days, 10A, 1 NO contact - Ettroit JX18101

61.181.0200008
100 Items
€18.20
Tax included

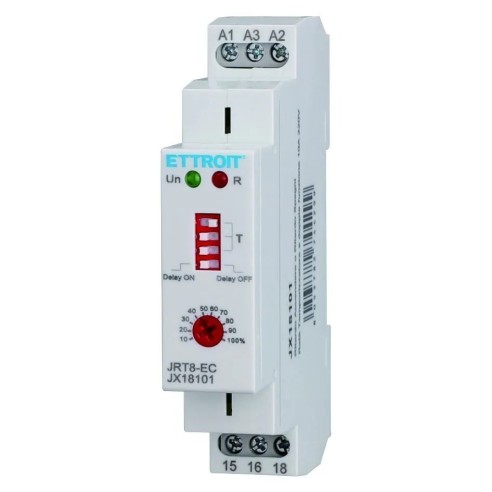

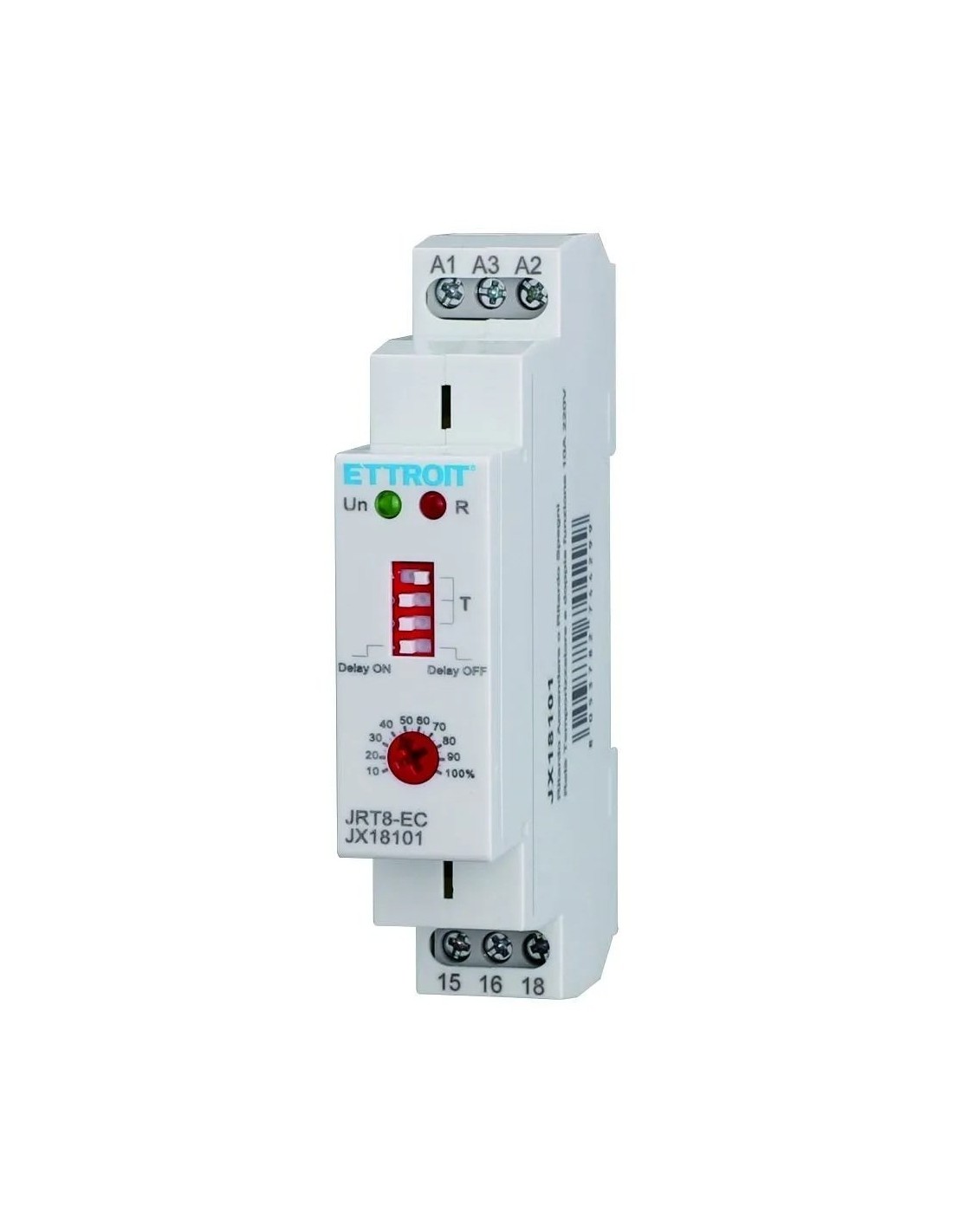

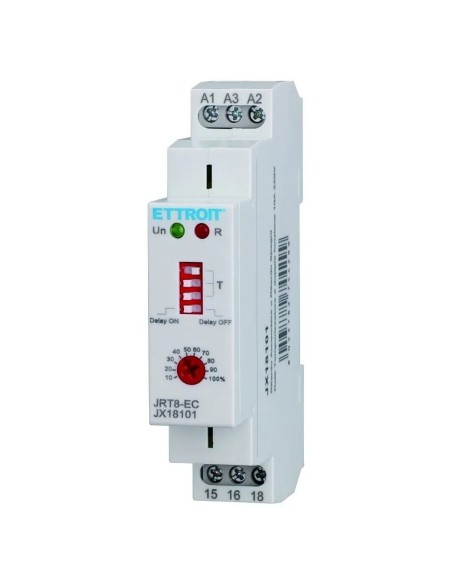

Compact multifunctional time relay with two selectable operating modes: switch-on delay and switch-off delay.
With a wide adjustment range, from 0.1 seconds up to 10 days, it is ideal for civil and industrial applications in automation, motor control, pumps, ventilation, heating and lighting.
The device integrates status LEDs to indicate power and output, and is designed for DIN-rail mounting (1 module, 18 mm). Complies with EN 61812-1 and IEC60947-5-1 standards.

Description

Power supplyAC 230V 50/60Hz ±15% / +10%
ConsumptionMax. 6VA / 1.3W

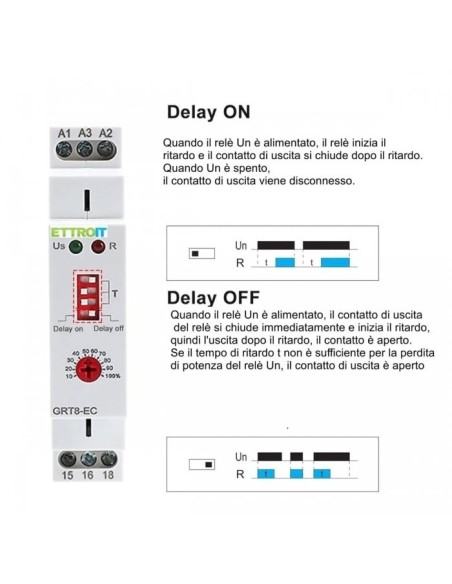

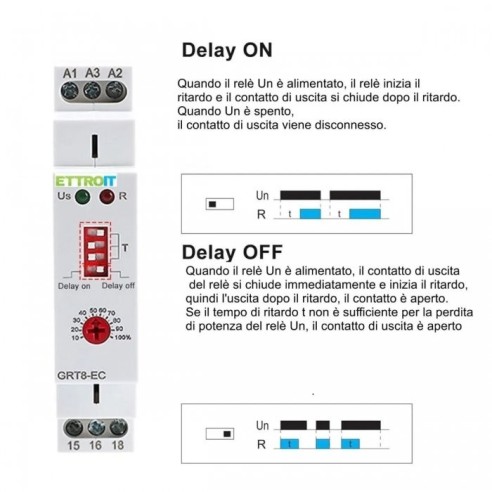

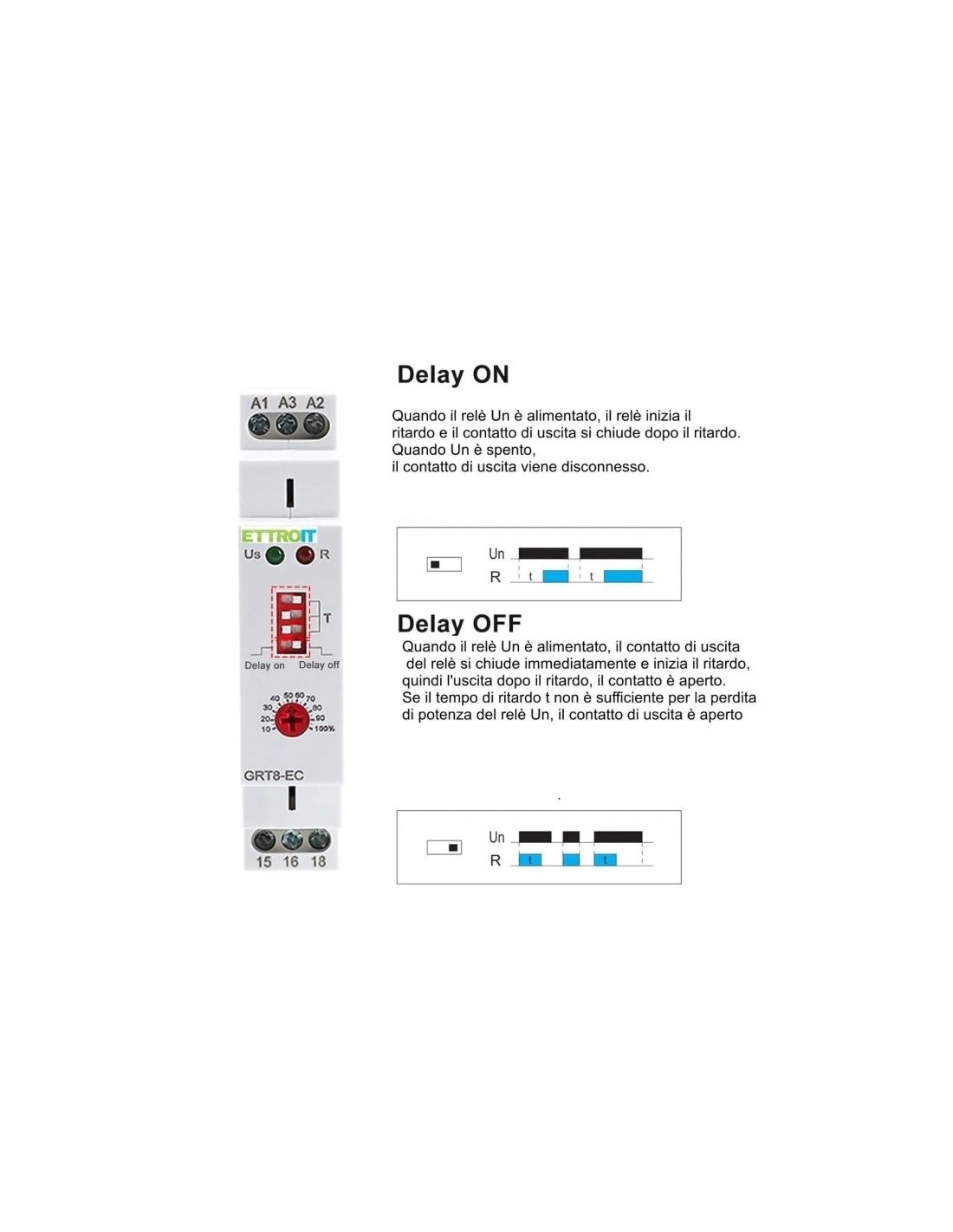

FunctionsSwitch-on delay (On Delay), Switch-off delay (Off Delay)

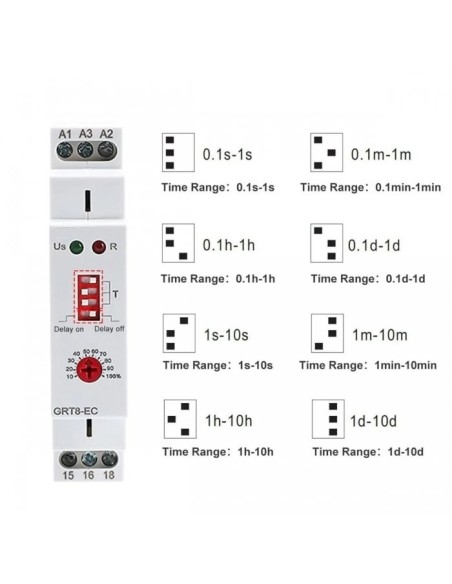

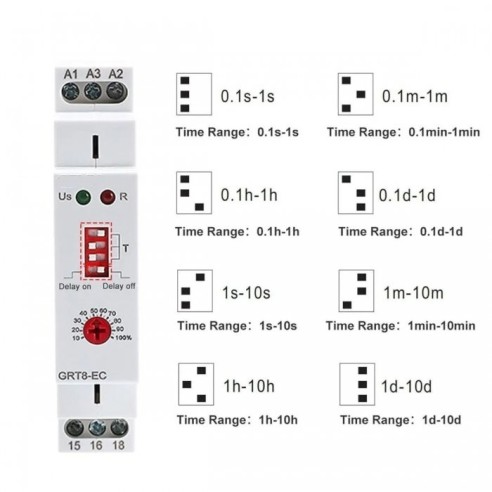

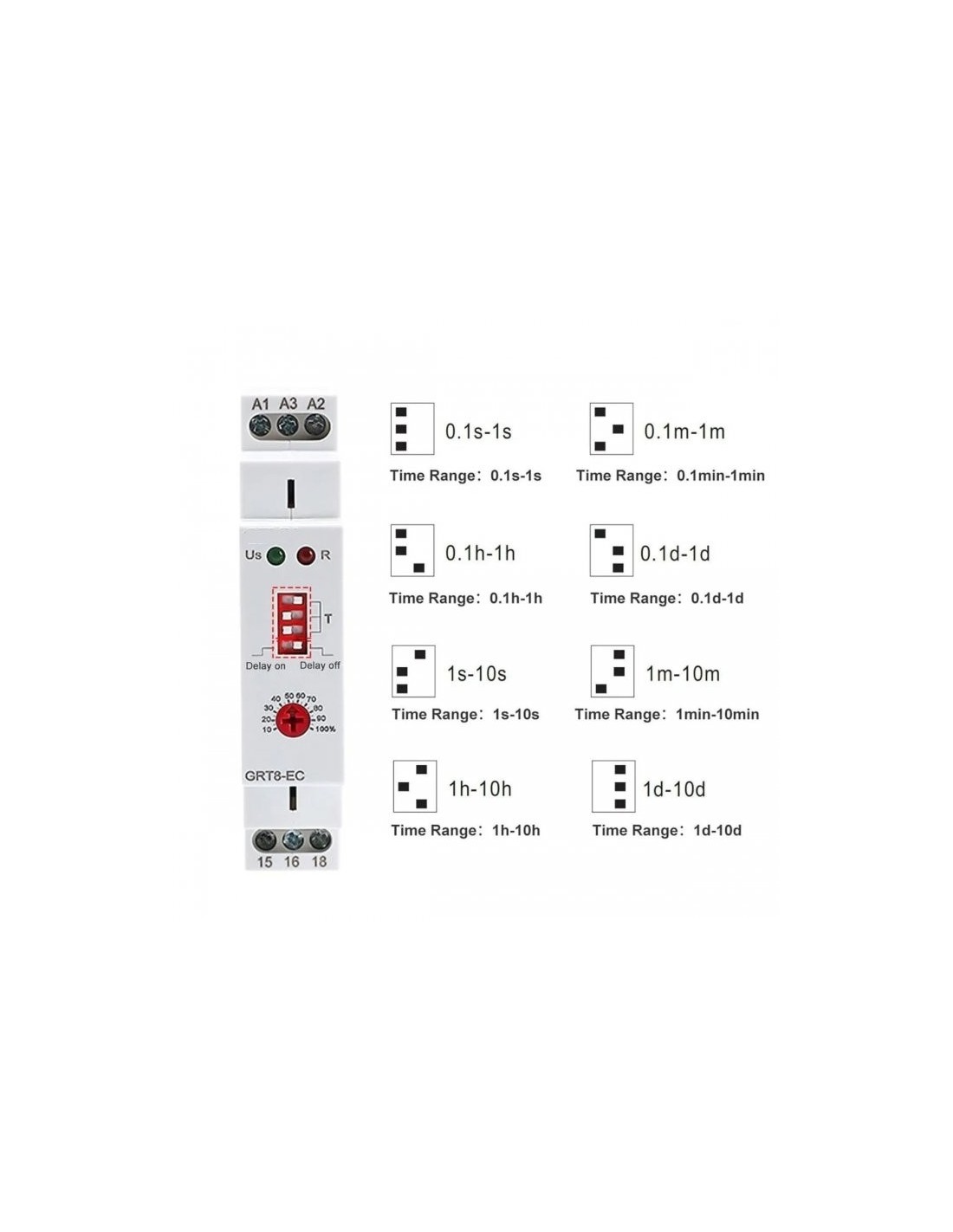

Timing0.1s - 10 days (10 selectable intervals)

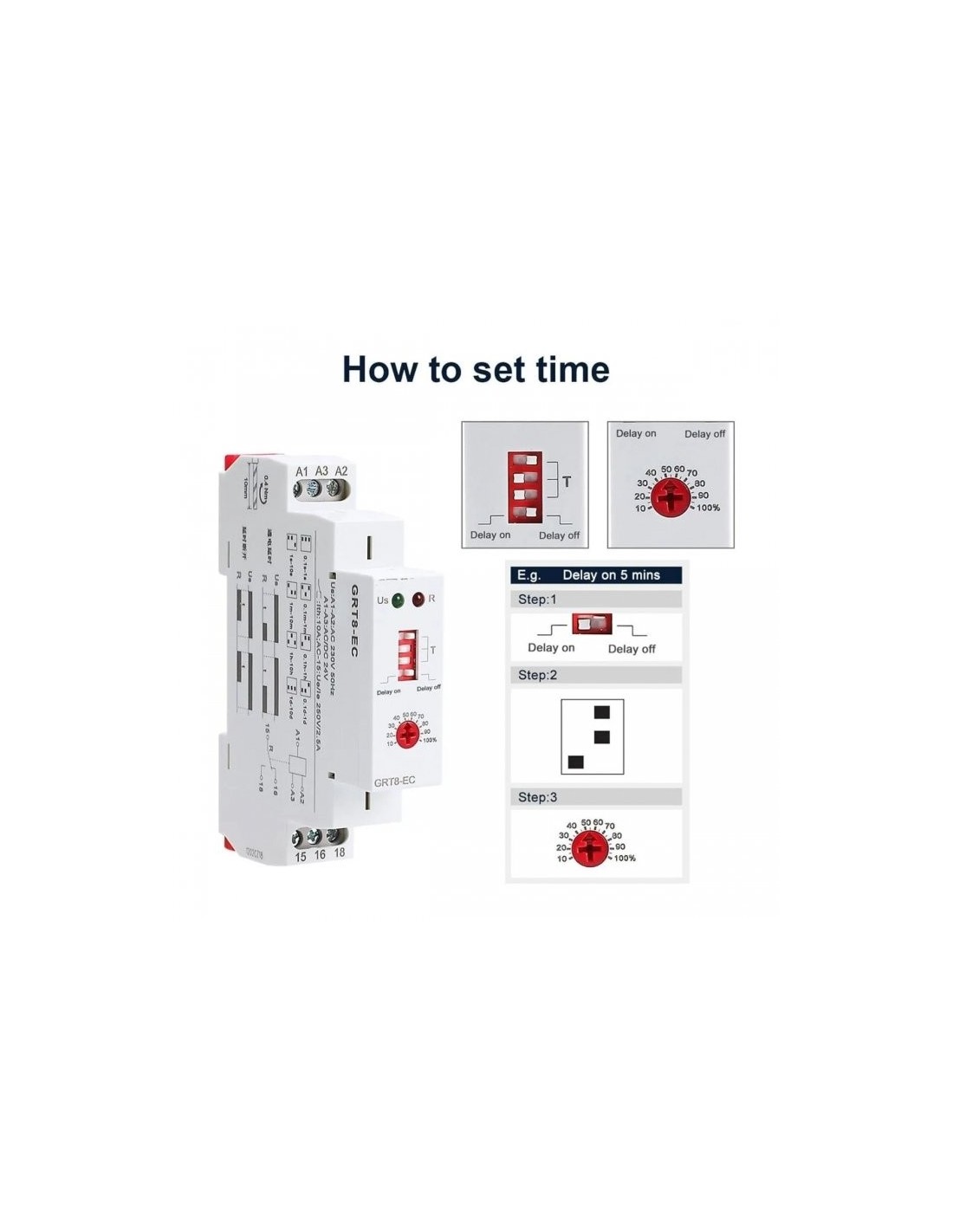

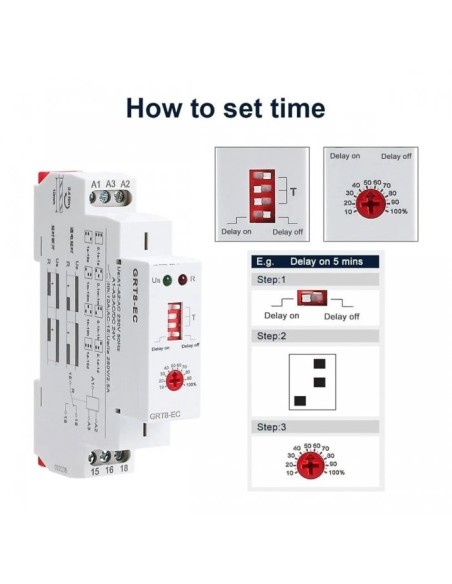

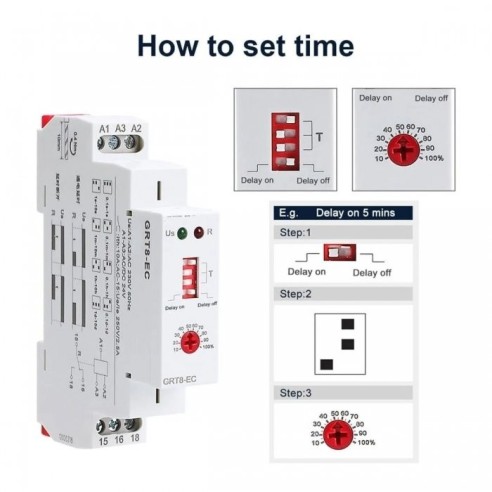

AdjustmentFunction selector + time potentiometer
Accuracy±0.2% stable value
Temperature coefficient0.05% / °C at 20 °C
Output1 × SPDT
Rated current10A (AC1)
Switching voltage250V AC / 24V DC
Minimum switchable capacity500 mW
Mechanical durability≥ 10⁷ operations
Electrical durability≥ 10⁵ operations
Reset timeMax. 200 ms

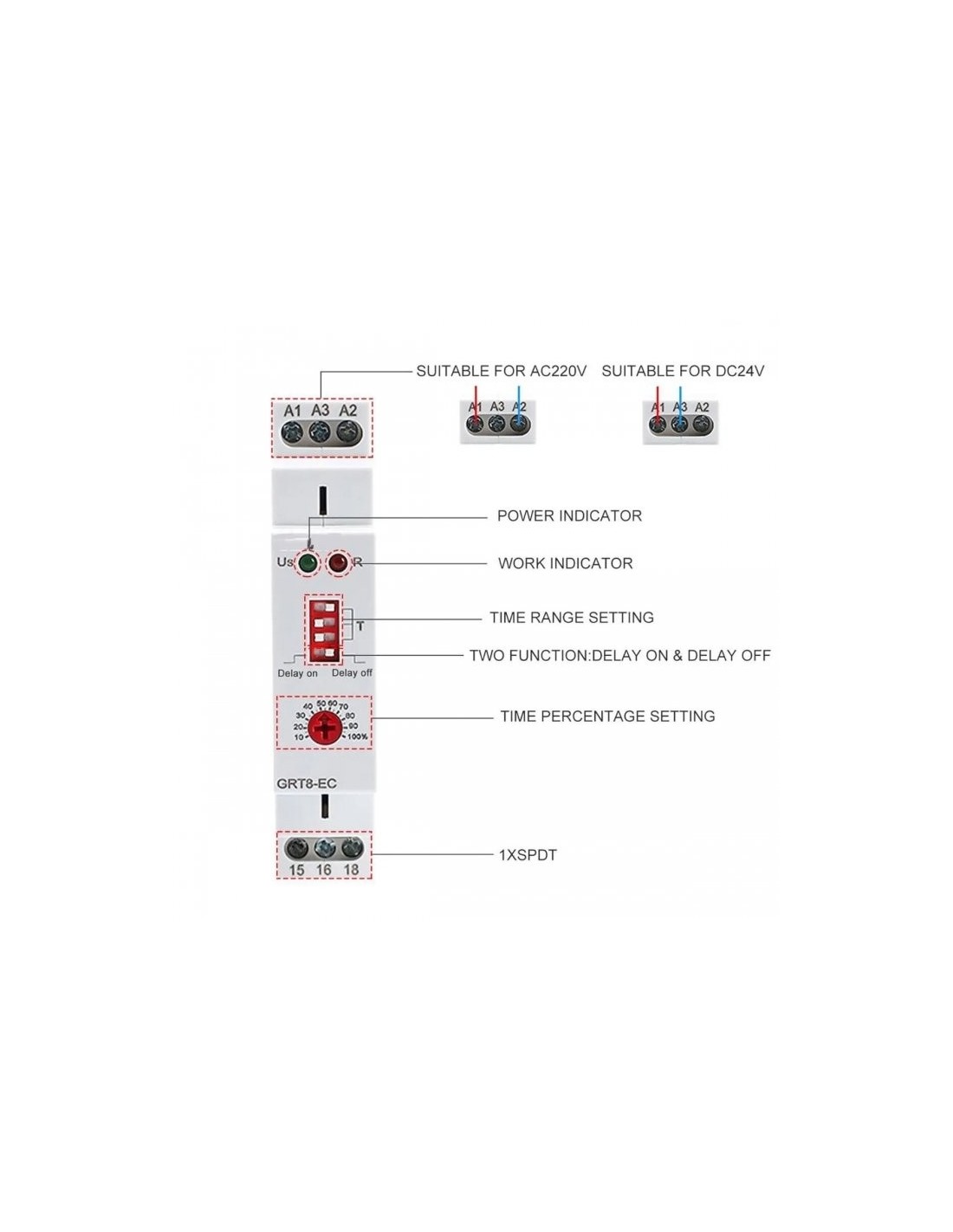

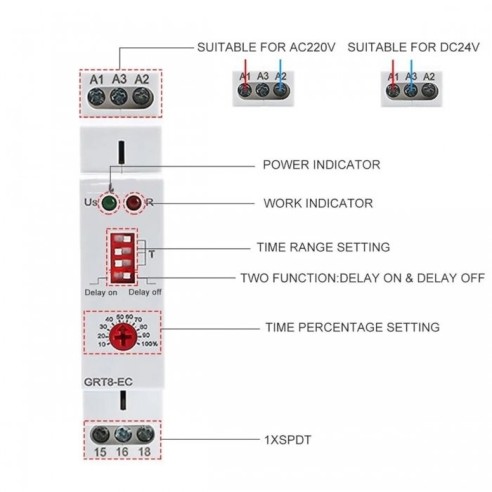

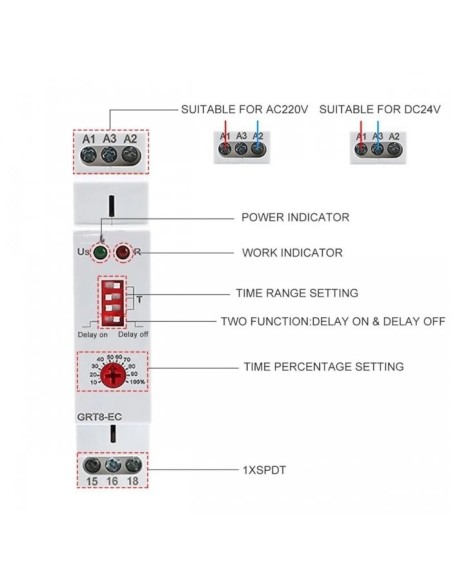

LED indicatorsGreen = supply, Red = output
Working temperature-20 ~ +55 °C
InstallationDIN rail EN/IEC 60715
IP RatingIP40 front panel / IP20 terminals
ComplianceEN 61812-1, IEC 60947-5-1
ModelJX18101
ManufacturerEttroit

Product Details

Brand
Ettroit
Mounting
DIN rail
Rated voltage
250Vac
Corrente nominale
10 A
Contact configuration
SPST-NO
Number of functions
2
