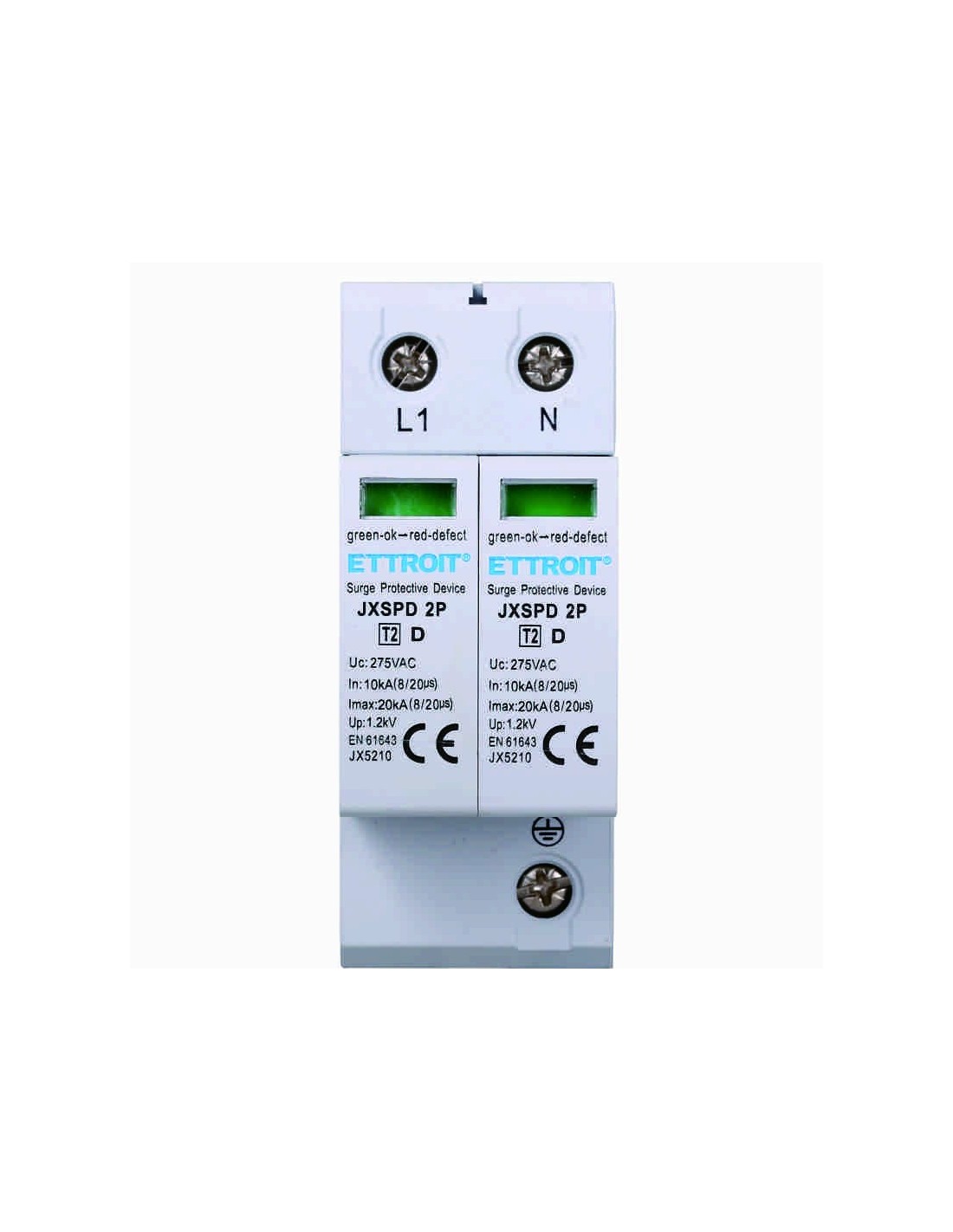

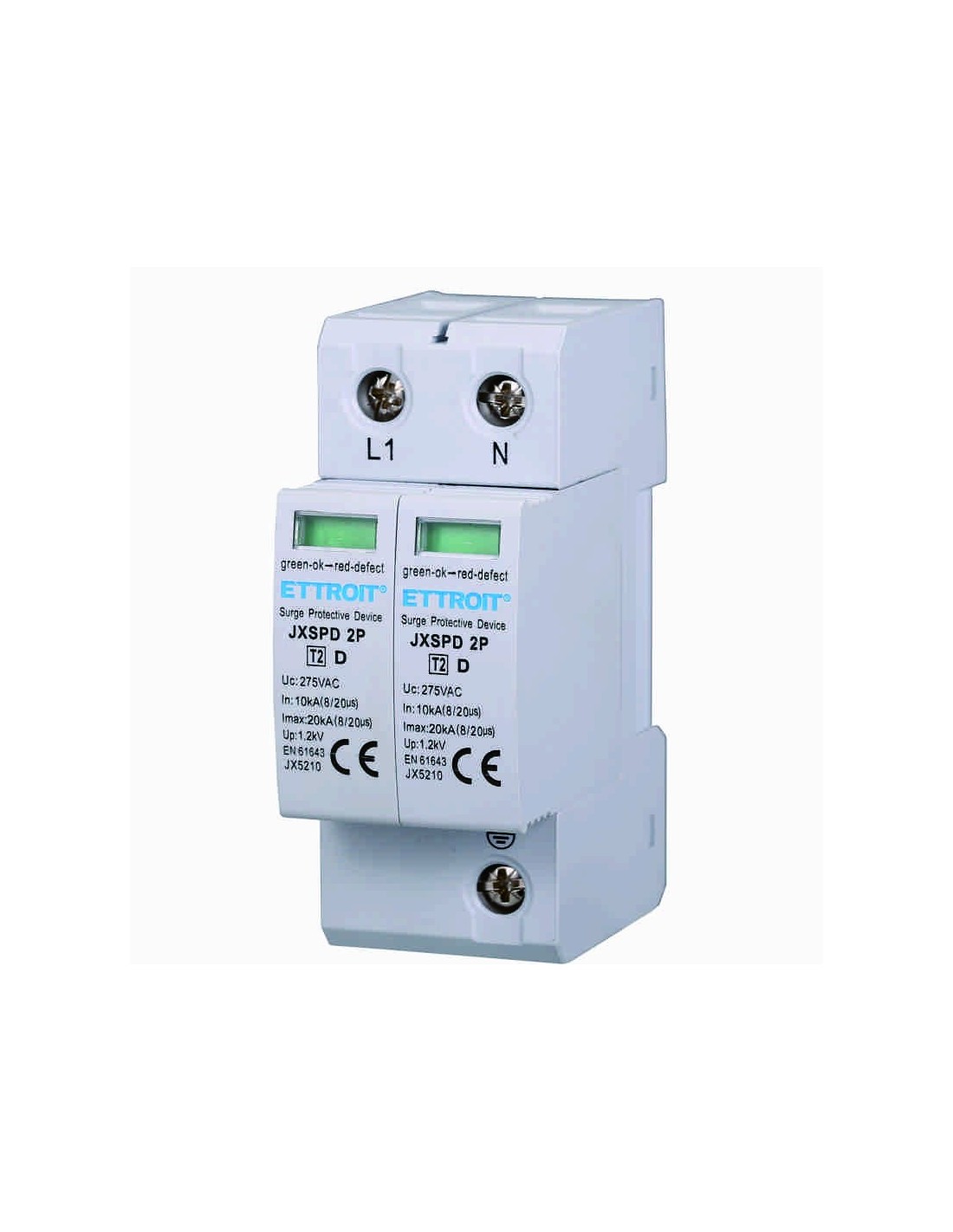

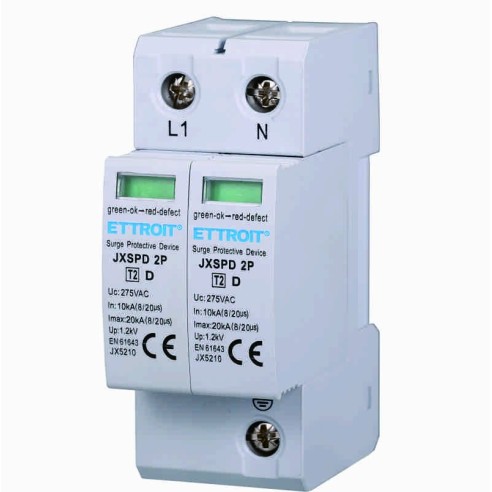

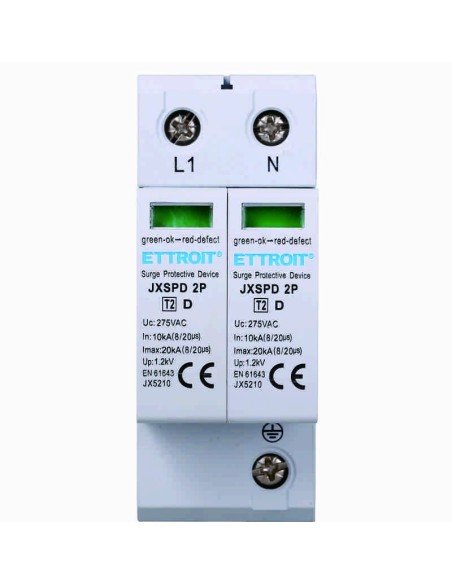

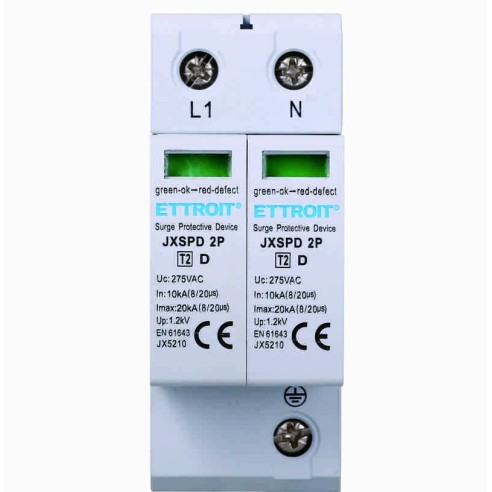

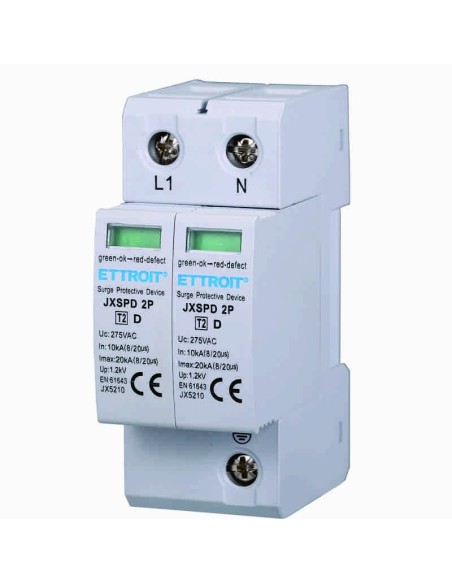

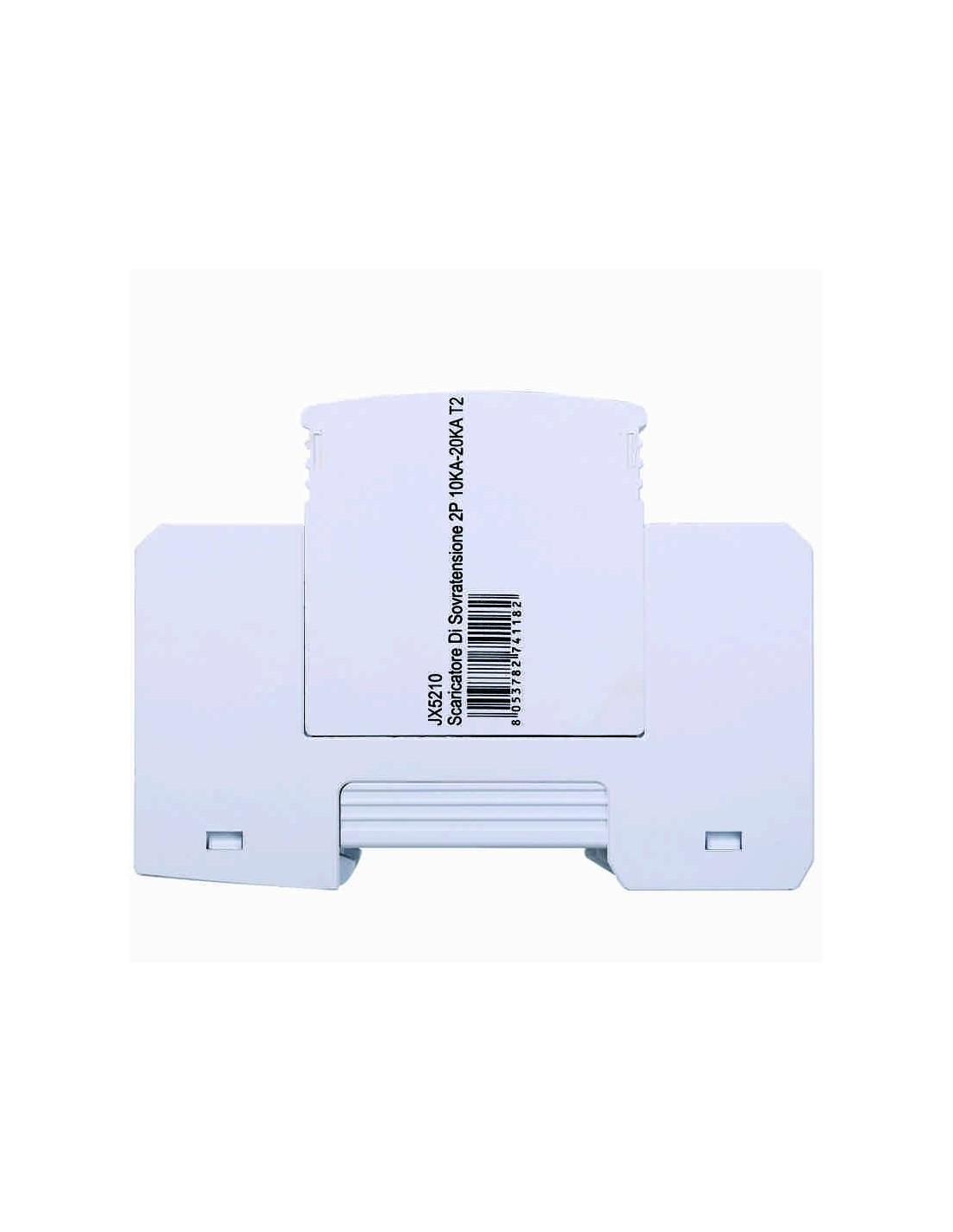

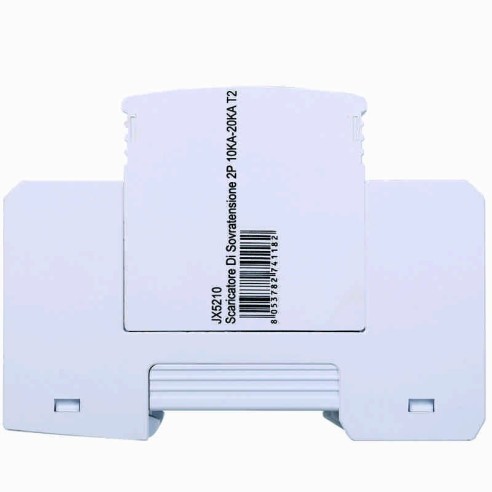

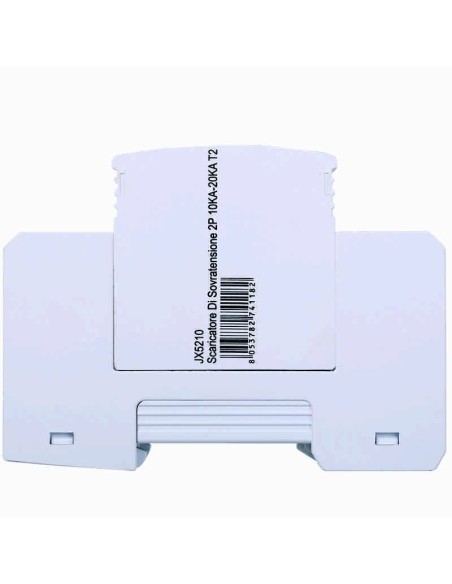

Surge arrester 2P, limiting SPD, 2 modules, 275Vac, Type T2, 10KA, 20KA - Ettroit JX5210
Surge arrester 2P, limiting SPD, 2 modules, 275Vac, Type T2, 10KA, 20KA - Ettroit JX5210
Surge arrester 2P, limiting SPD, 2 modules, 275Vac, Type T2, 10KA, 20KA - Ettroit JX5210

Surge arrester 2P, limiting SPD, 2 modules, 275Vac, Type T2, 10KA, 20KA - Ettroit JX5210

61.471.1250003
100 Items
€22.00
Tax included
The JX5210 surge arrester is designed to protect electrical installations against voltage spikes or transient overvoltages, caused by various sources such as lightning strikes, electrical switching or problems in the power grid.
This surge arrester is type T2 and mounts on a DIN rail, occupying 2 modules.
It is known as an SPD (Surge Protection Device) and offers reliable protection against damage caused by surges.
The device is designed with an operating voltage Uc of 275V AC, a rated discharge current In of 10kA (8/20us), and a maximum current Imax of 20kA (8/20us).
The voltage protection level is 1.5KV.

Description

TypeT2
Rated voltage275 Vac
Rated unloaded current10 KA
Maximum discharge current20 KA
ModelJX5210
ManufacturerEttroit

Product Details

Brand
Ettroit
Rated voltage
220 ~ 275 Vac
Configuration
2P
Number of occupied modules
2
Type of surge arrester
Type 2
Rated discharge current
10 KA
Maximum discharge current
20 KA
