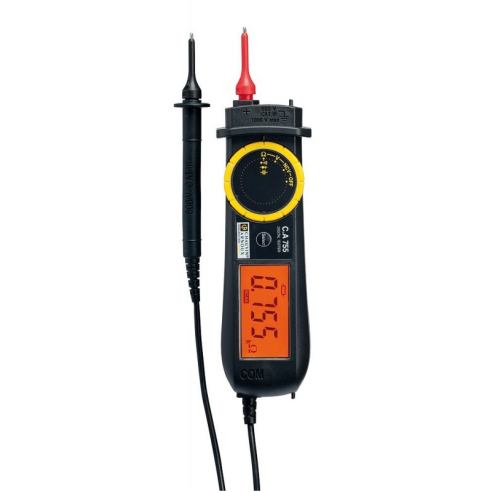

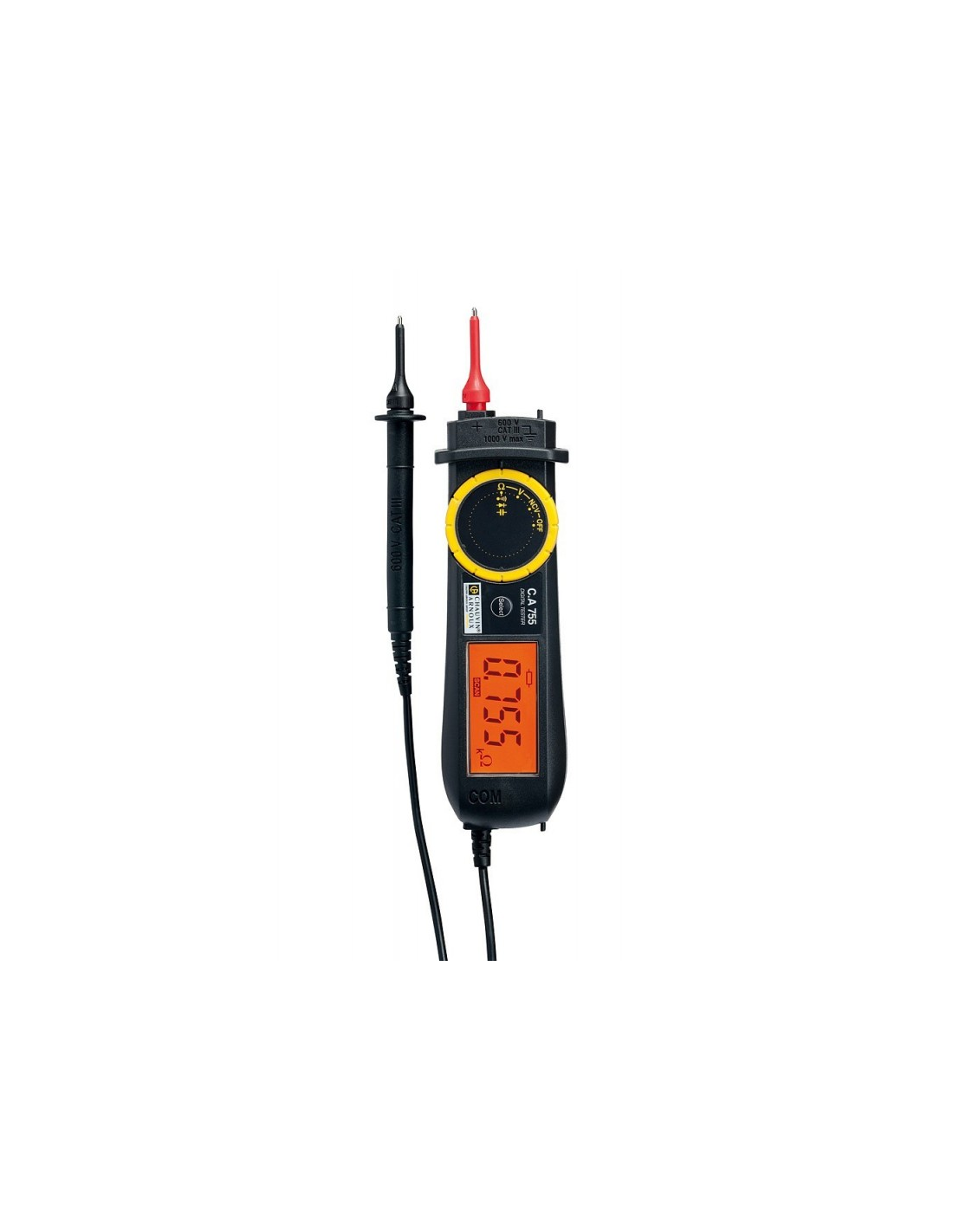

Voltage tester AMRA Chauvin Arnoux C.A. 755 CAT III 600V

Name: Voltage tester AMRA Chauvin Arnoux C.A. 755 CAT III 600V
Brand: Chauvin Arnaux
SKU: 40.001.0040001
Price: 152.3 EUR
Availability: InStock

SKU 40.001.0040001

In stock 4 Items

€152.30

Tax included

Functions: DC voltage, AC voltage, non-contact voltage, capacitance, resistance, diode test, continuity test

The C.A 755 tester meets the specific needs of professionals working on low-voltage electrical installations.
The numerous automated functions help prevent the usual handling errors.
With 600 V CAT III safety and compliance with IEC 61010-2-033, they are intended for electricians, thermal engineers, mechanics, maintenance engineers, etc.
They offer exceptional safety for testers:
- double insulation
- protection up to 6 kV for voltage measurements (electric shocks);
- protection up to 1,000 V for continuity tests and resistance or capacitance measurements;
- protection against dust thanks to their IP54 enclosure;
Features both non-contact voltage detection and hazardous voltage indication.

Description

DC voltage	3 mV ~ 1,000 V, 4 gauges; Resolution 1 mV ~ 1 V
AC voltage	100 mV ~ 1,000 V, 4 gauges; 1 mV ~ 1 V
Impedance	10 MΩ
Non Contact Voltage	230 V 50/60 Hz, 5 cm distance
Resistance	0.3 Ω ~ 30 MΩ, 6 gauges; Resolution 0.1 Ω ~ 0.01 MΩ
Continuity test	R ≤ 30 Ω
Capacity	400 pF ~ 30 mF; Resolution 0.001 nF ~ 0.01 mF
Diode test	For junction voltages between 300 mV and 2 V
Security	600 V CAT III, IEC 61010-1, IEC 61010-031, IEC 61010-032, IEC 61010-033
Power supply	2x AAA batteries
Autonomy	Approximately 100 hours
Automatic switch-off	10 minutes
Dimensions	180 x 52 x 45 mm
Weight	200 grams
Manufacturer	UNI-T
Manufacturer code	P01191755
Model	A.C. 755

Product Details

Brand: Chauvin Arnaux
Functions: AC voltage
Capacity
Continuity test
DC voltage
Diode test
Non Contact Voltage
Resistance
Type of instrument: Digital
