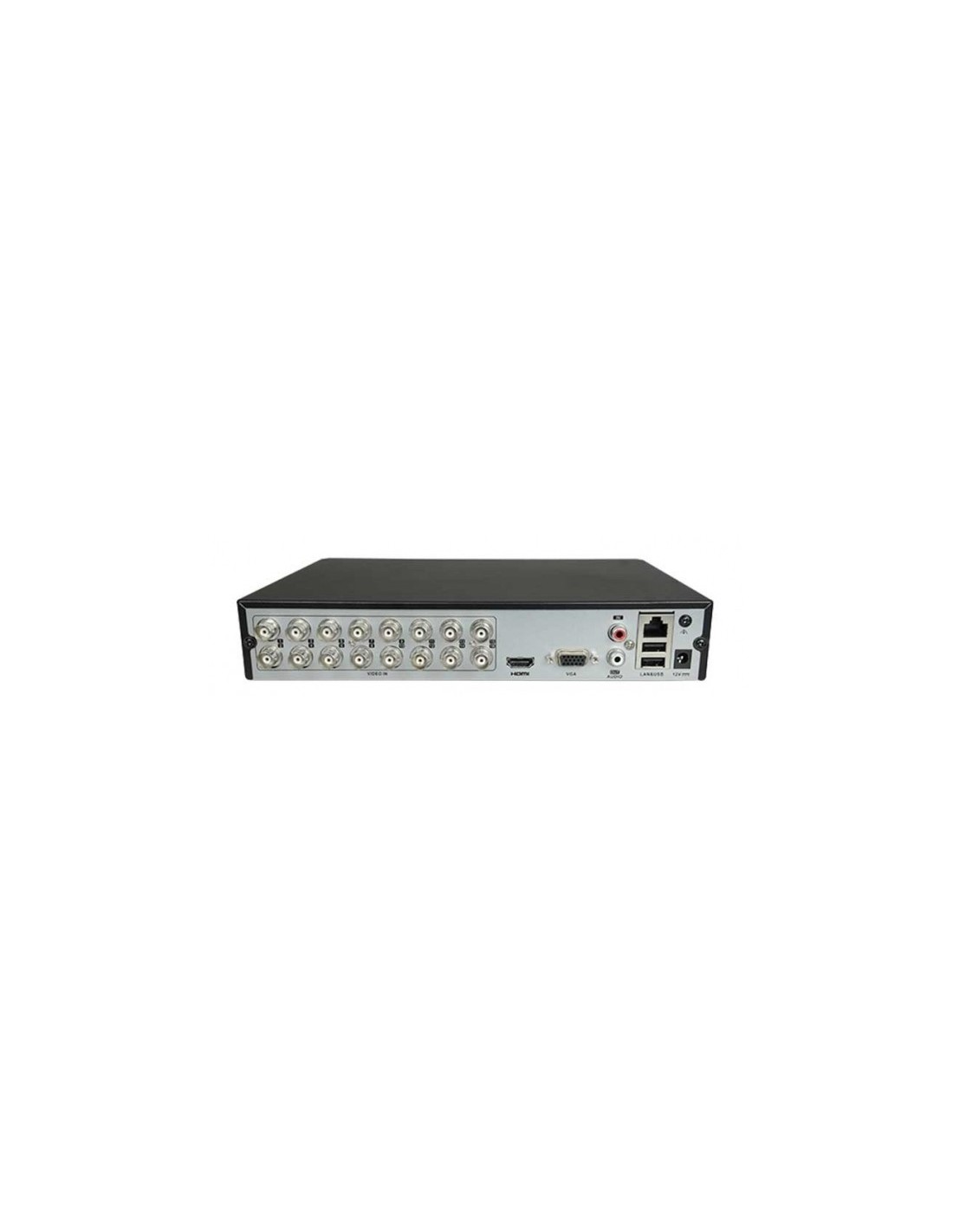

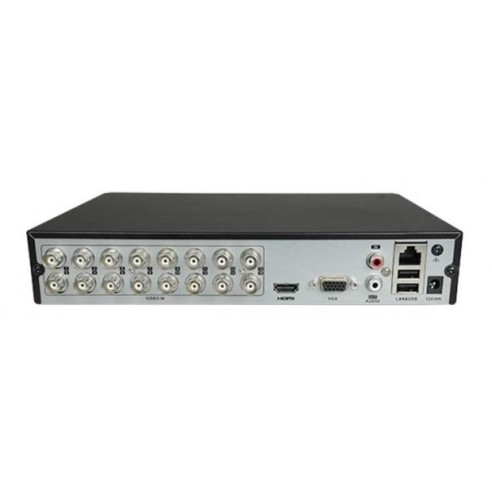

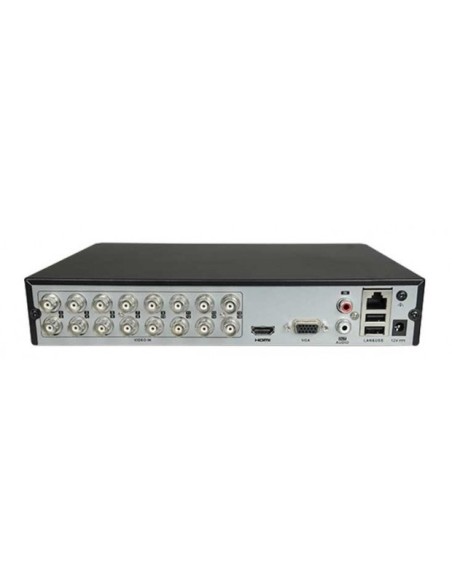

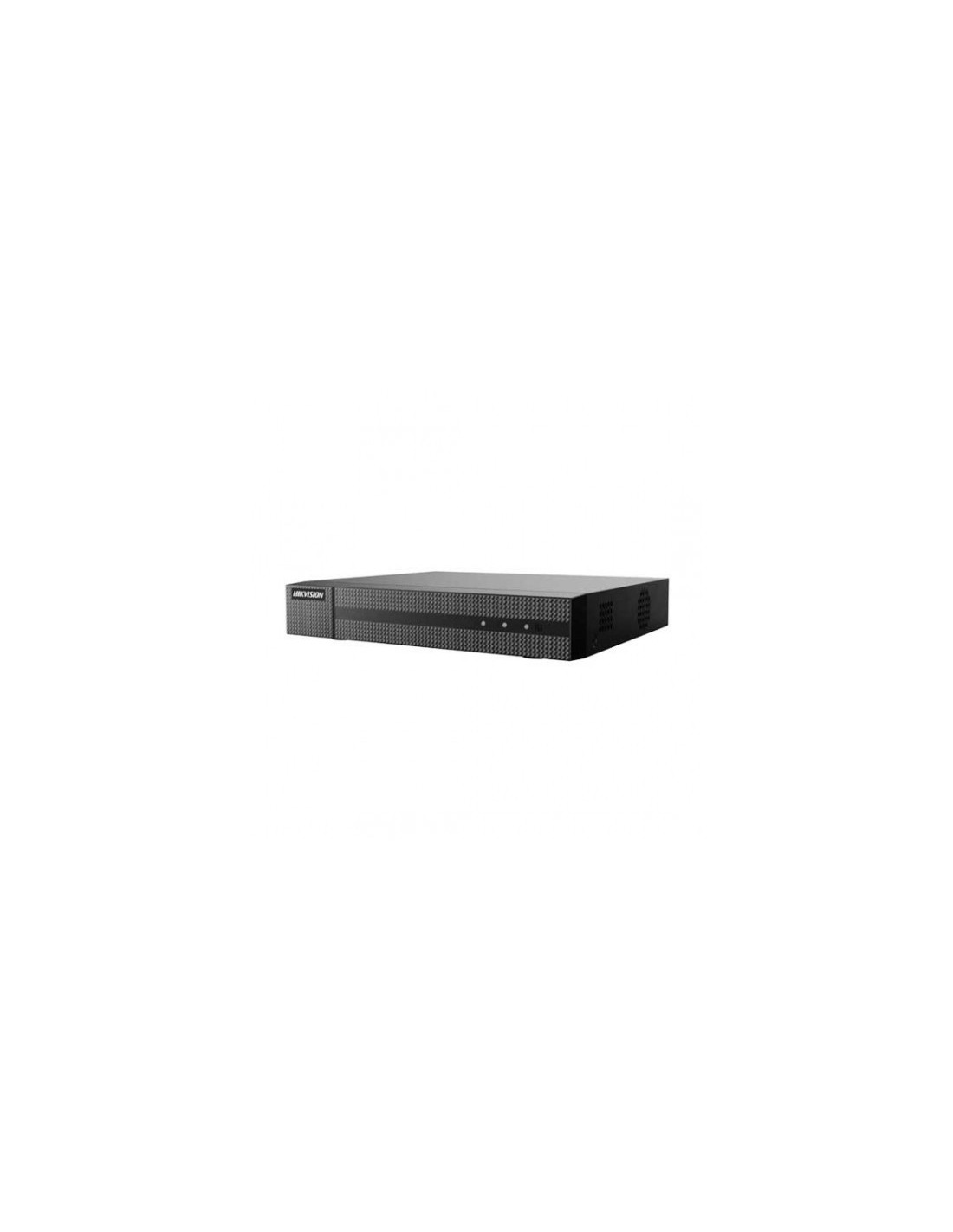

DVR HWD-5116M Hikvision Hiwatch series turbo HD 1080p 16 channels with 5IN1 CVBS/HDCVI/HDTVI/AHD + hybrid IP technology.
Full HD 1080p 16CH@25fps resolution recording + 1 IP camera up to 960p.
Thanks to the DVR's hybrid technology, it is possible to upgrade all old video surveillance systems, giving the possibility to install higher resolution cameras using the traditional micro coaxial cabling used to install analogue CVBS cameras.
The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder's settings.
The DVR offers connectivity from any device, including Windows, Mac, iPhone and Android applications.
The video surveillance system is ideal for a wide range of applications: from businesses to public administrations, from parks to government offices, from museums to airports, from villas to small environments.
Specifications
- Supported CCTV Technology Standards CVBS/HDCVI/HDTVI/AHD + IP@960p, Onvif Standard
- Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
- Recording (REC & Live) on all channels in 1080N 16CH@25fps
- Dual-stream H.264+/H.264 video compression.
- Simultaneous HDMI/VGA video output.
- Supports 1 SATA HDD up to 6TB , 2 USB2.0
- Multiple network monitoring: Web viewer, CMS, Smartphone via iVMS-4200, Hik-Connect y iVMS-5200 applications
- Easy P2P QR scan configuration with dedicated Hikvision Cloud Service.
- Multilingual menus.
| Video/Audio input | |
| Video compression | H.264+/H.264 |
| Analog video input | 16-ch |
| HDTVI input | 1080p25, 1080p30, 720p25, 720p30 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| IP video input | 2-ch (up to 18-ch) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Video/Audio output | |
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Encoding resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF; When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Main stream Frame rate | When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N); When 1080p lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) |
| Sub-stream Frame Rate | CIF/QVGA/QCIF@12fps |
| Video bit rate | 32 Kbps to 4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio bit rate | 64 Kbps |
| Dual stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 16-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA Interface | 1 SATA interface |
| Hard Disk Capacity | Up to 6 TB capacity for each disk |
| External interface | |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Network interface | 1, RJ45 10M/100M Ethernet interface |
| USB interface | Rear panel: 2 × USB 2.0 |
| General | |
| Power supply | 12 VDC |
| Consumption (without HDD) | ≤ 20 W |
| Working temperature | -10 ºC to +55 ºC |
| Working humidity | 10% to 90% |
| Dimensions | 260 × 222 × 45 mm |
| Weight (without HDD) | ≤ 1.2 kg |
| Model | HWD-5116M |
| Brand | Hikvision |
