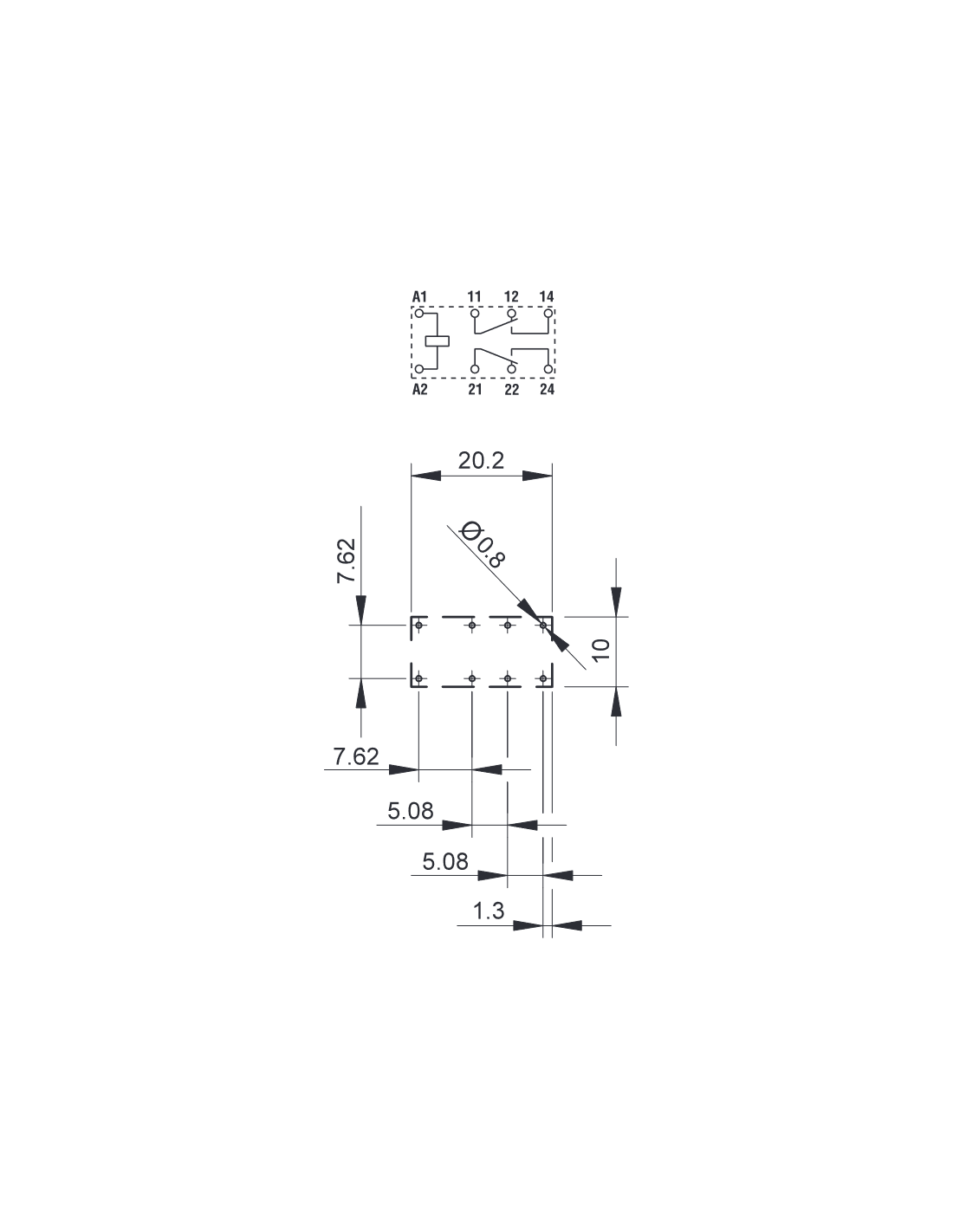

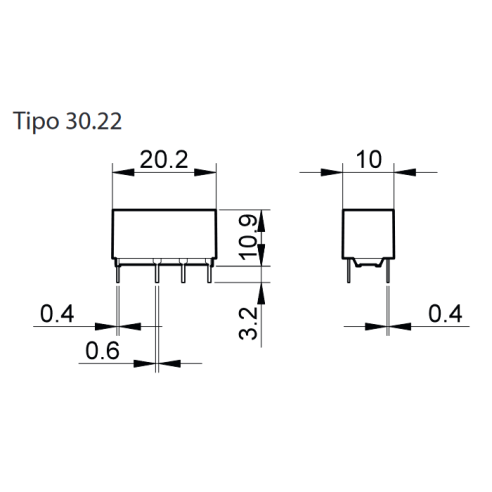

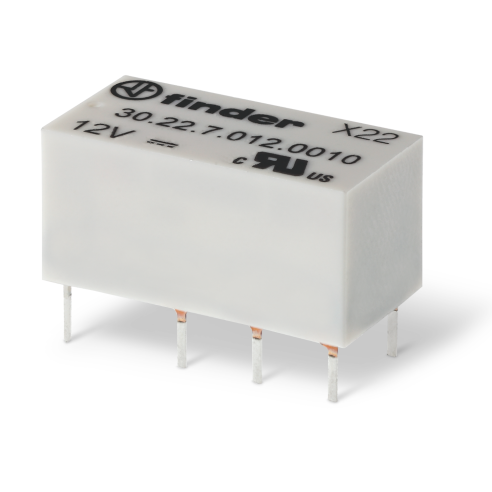

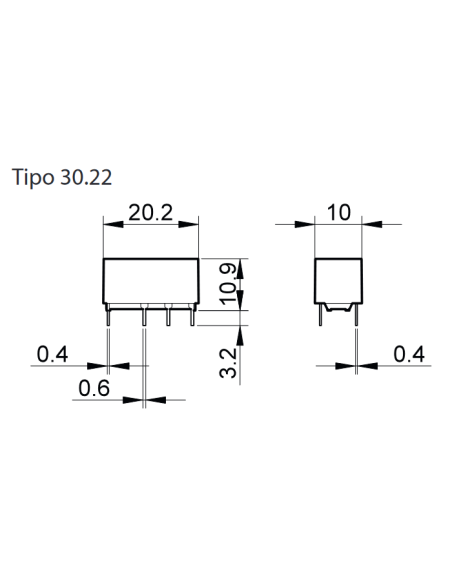

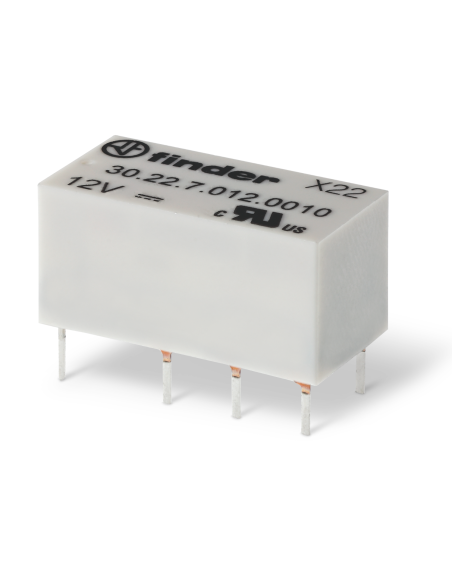

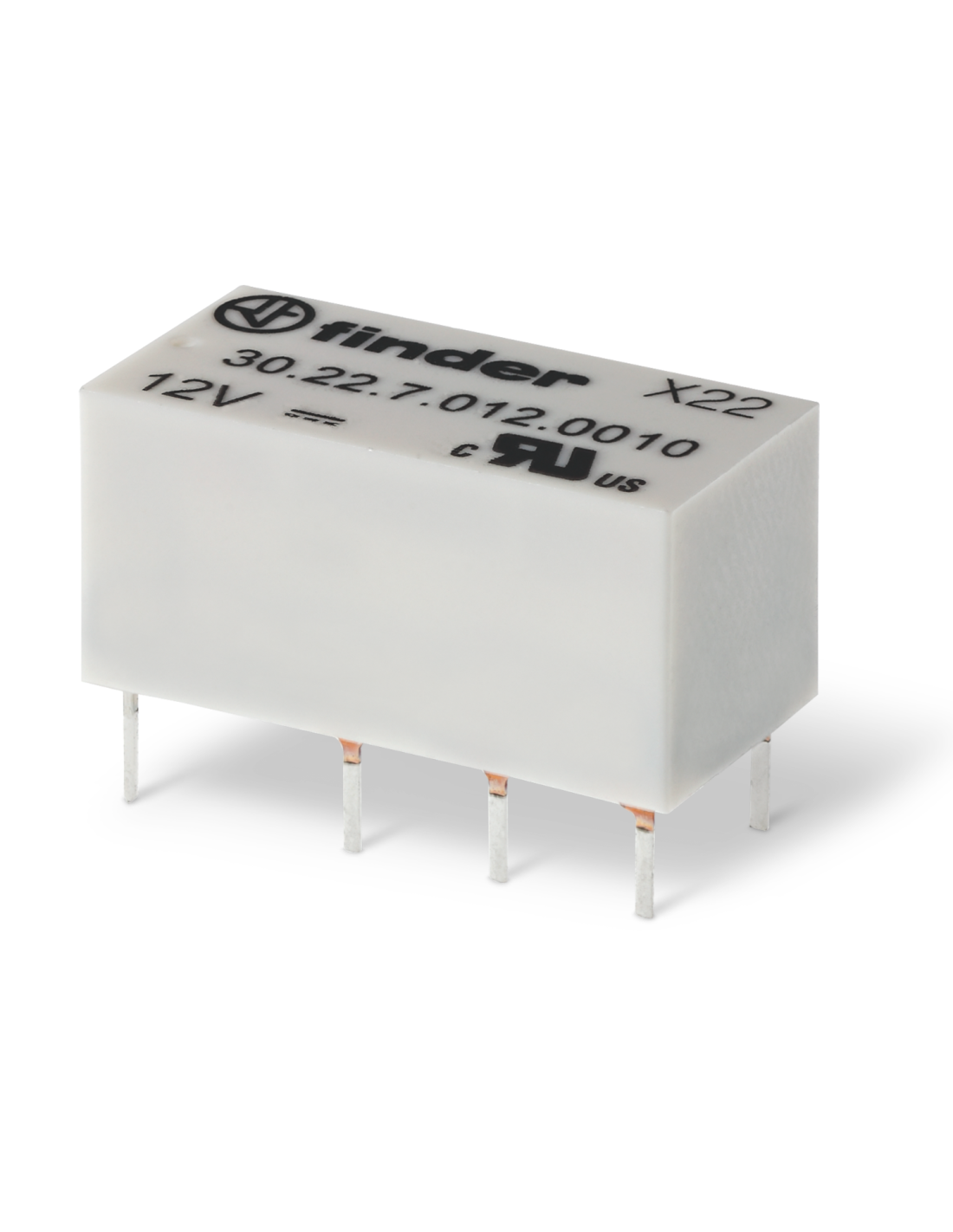

Dual in-line relay, 48 Vdc, DPDT, 2 A, through-hole (THT), 30.22 series - Finder 30.22.7.048.0010

Dual in-line relay, 48 Vdc, DPDT, 2 A, through-hole (THT), 30.22 series - Finder 30.22.7.048.0010

Name: Dual in-line relay, 48 Vdc, DPDT, 2 A, through-hole (THT), 30.22 series - Finder 30.22.7.048.0010
Brand: Finder
SKU: 52.130.1604001
Price: 9.05 EUR
Availability: InStock

SKU 52.130.1604001

In stock 19 Items

€9.05

Tax included

Dual in-line relay for PCB mounting with two changeover contacts for switching low loads.

Features:
- 2 changeover contacts for switching low loads;
- Subminiature relay for industry standard DIL type;
- Sensitive DC coil - 200 mW;
- Cadmium-free contacts;
- Low power consumption;
- Gold-plated contacts;
- Printed circuit board mounting

Quantity	Unit price	You Save
10	€8.15	€9.05

Description

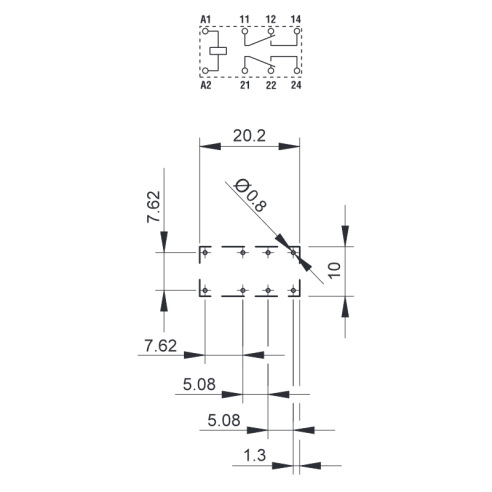

Contact configuration
Contact configuration	2 exchanges
Rated current/maximum instantaneous current	2A / 3A
Rated voltage / maximum switchable voltage	125Vac / 250Vac
Nominal load in AC1	125VA
Nominal load in AC15	25VA
Minimum switchable load	10mW
Contact material	AgNi + Au
Coil characteristics
Nominal supply voltage	48Vdc
Nominal power	0,2W
General features
Mechanical durability	2 x 10⁶ cycles
Electrical durability	100 x 10³ cycles
Switching time: excitation/de-energization	6ms / 4ms
Insulation between coil and contacts	1.5KV
Dielectric strength between open contacts	750Vac
Product information
Model	30.22.7.048.0010
Manufacturer	Finder
