| Entry |
| Maximum power | 7.8 KW |
| Input voltage | 370 V |
| MPPT voltage range | 125 - 425 V |
| Maximum current | 13 + 13 A |
| Number of MPP trackers | 2 / 1 |
| Output (AC) |
| Maximum current | 30 A |
| Power | 6 KW |
| Voltage | 230V, L + N + PE |
| Network frequency | 50Hz / 60Hz |
| Battery |
| Voltage range | 40 - 60 V |
| Charge/discharge current | 135 A |
| Battery type | Lithium/Lead |
| Efficiency |
| Maximum efficiency | 97,6% |
| MPPT efficiency | 99,9% |
| Features |
| Dimensions | 330 x 580 x 232 mm |
| Weight | 24 Kg |
| Operating temperature | -40ºC~ +60ºC |
| Cooling | Passive |
| Noise | <35dB |
| IP Rating | IP65 |
| Model | SUN-6KSG03LP1-EU 11529 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.
This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), 11539 (6kWh).

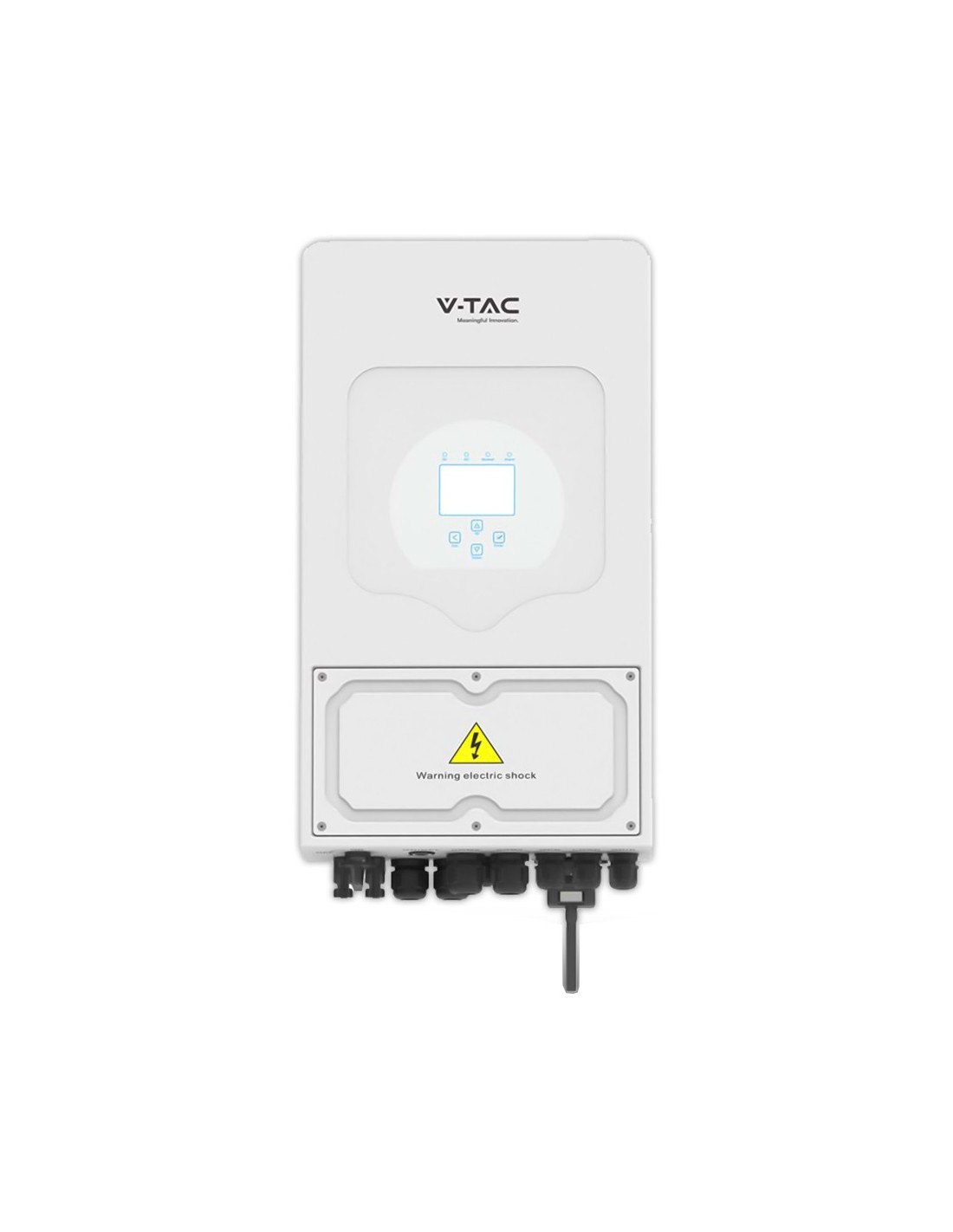

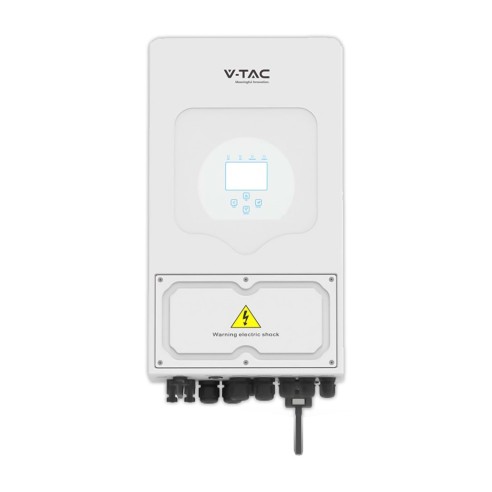

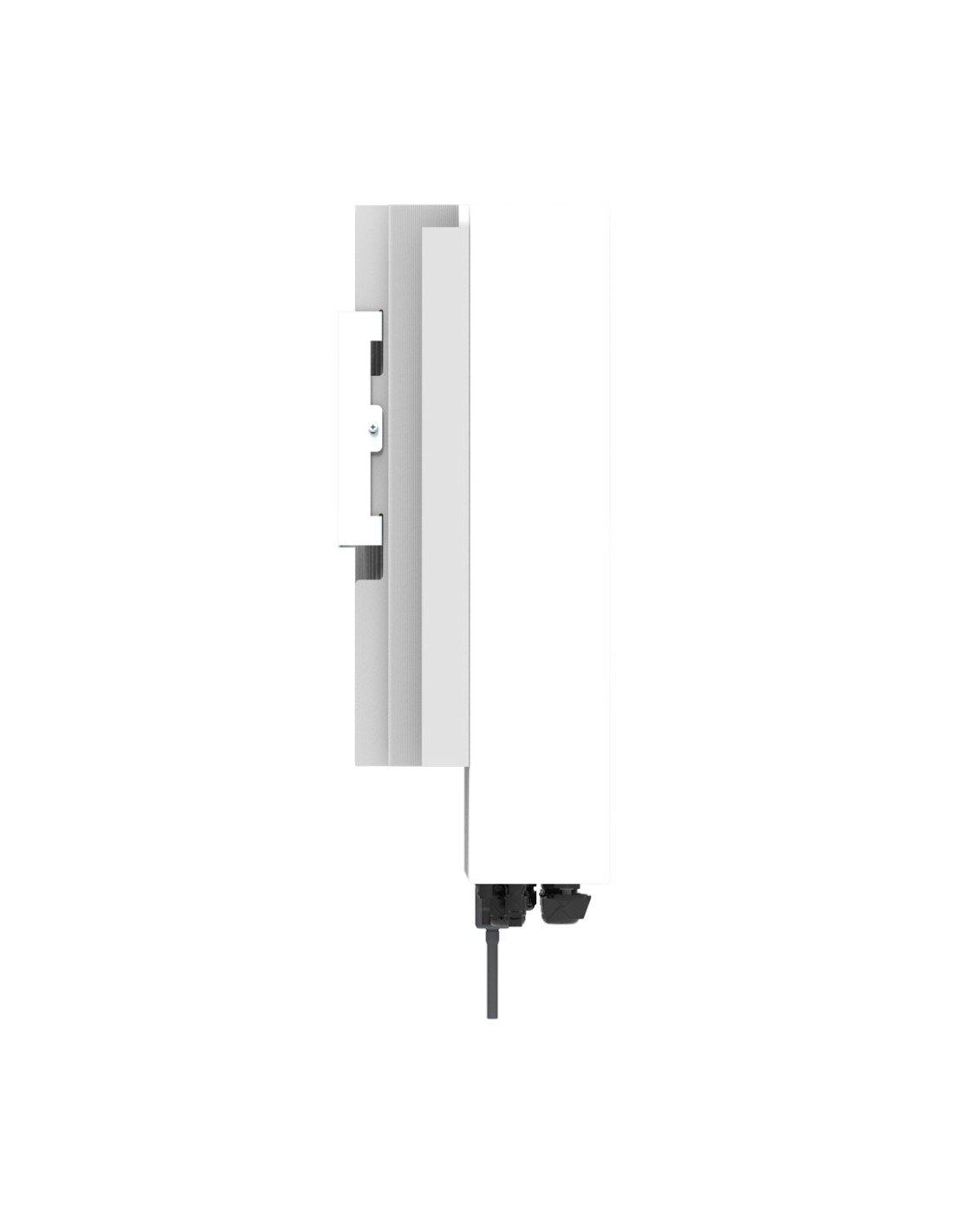

The Hybrid 6kW Dual MPPT Inverter is an electronic device that converts the direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for home or commercial consumption. This inverter has an integrated Smart Meter for current measurement: no need for an additional Smart Meter. It comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, RJ45 Cable and WiFi Dongle for remote monitoring.

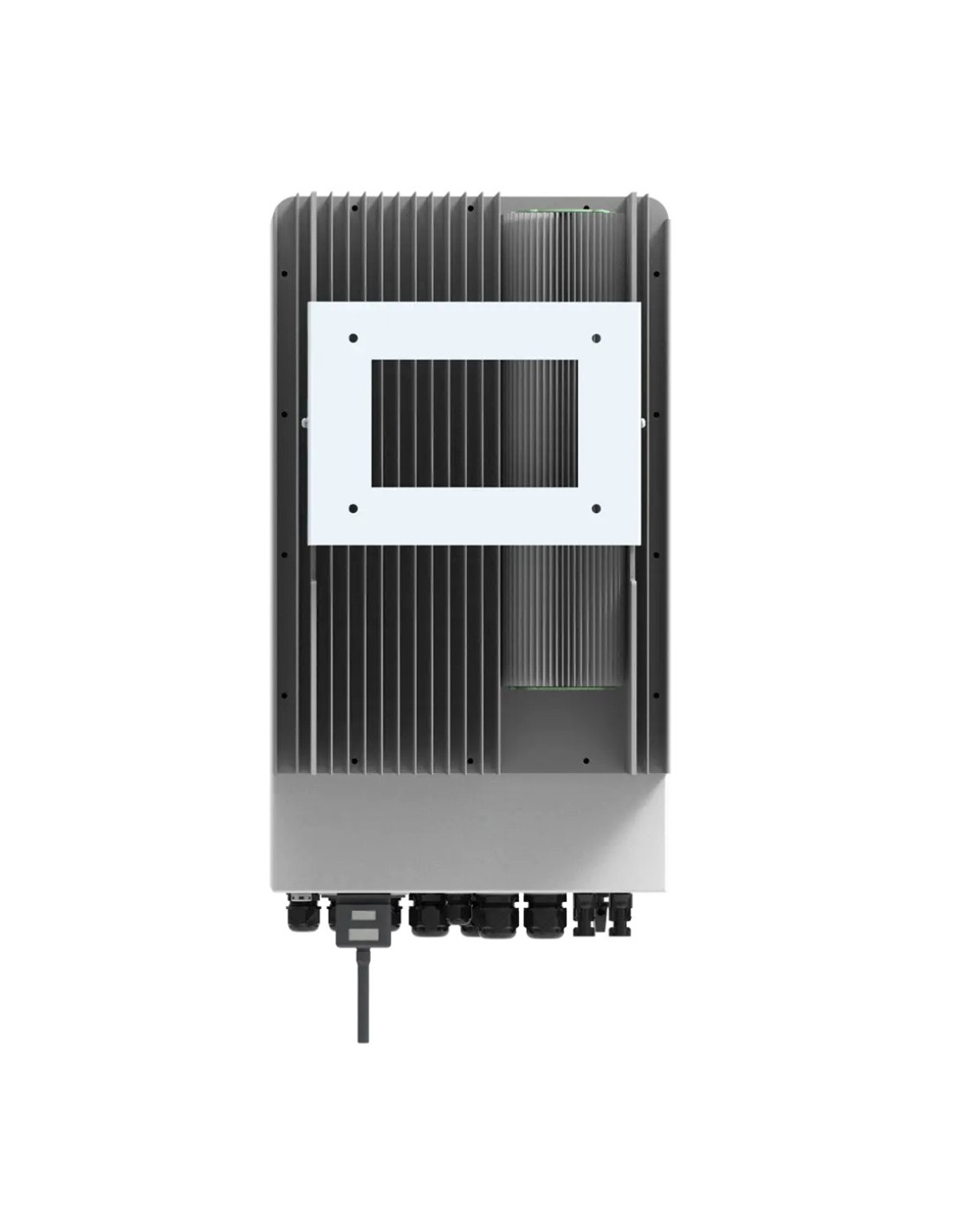

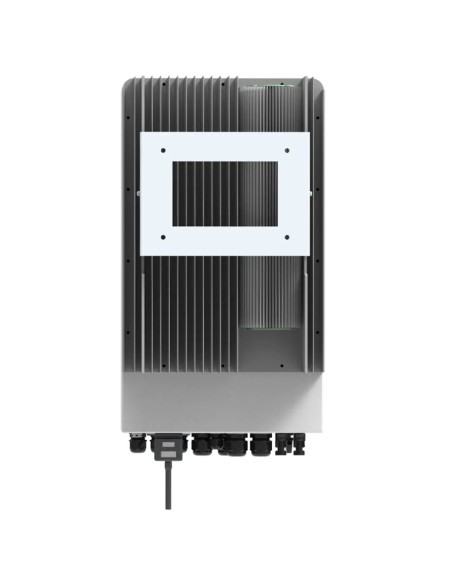

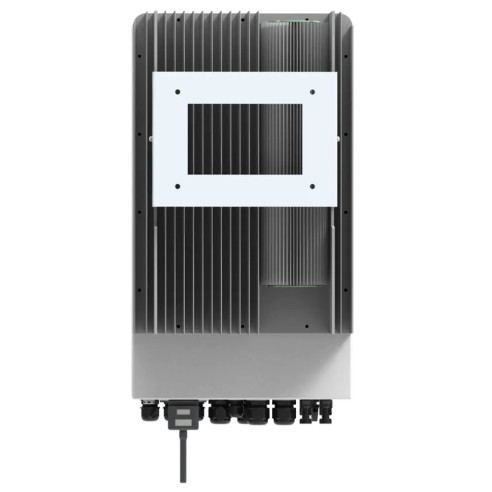

It is equipped with a colour LCD Touch Screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.
