| Entry |
| Maximum power | 15.6 KW |
| Input voltage | 550 V |
| MPPT voltage range | 200 - 650 V |
| Maximum current | 26 + 13 A |
| Number of MPP trackers | 2 |
| Output (AC) |
| Maximum current | 27,3 A |
| Power | 12 KW |
| Voltage | 220/380, 230/400Vac; 3L/N/PE |
| Battery |
| Voltage range | 40 - 60 V |
| Charge/discharge current | 240 A |
| Battery type | Li-ion / Lead |
| Efficiency |
| Maximum efficiency | 97,6% |
| MPPT efficiency | 99,9% |
| Features |
| Dimensions | 422 x 699.3 x 279 mm |
| Weight | 33.6 Kg |
| Operating temperature | -40ºC~ +60ºC |
| Cooling | Smart cooling |
| Noise | <45dB |
| IP Rating | IP65 |
| Model | SUN-12K-SG04LP3-EU 11543 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.

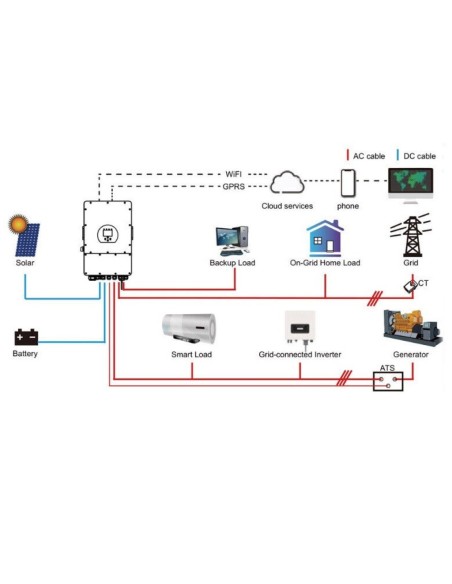

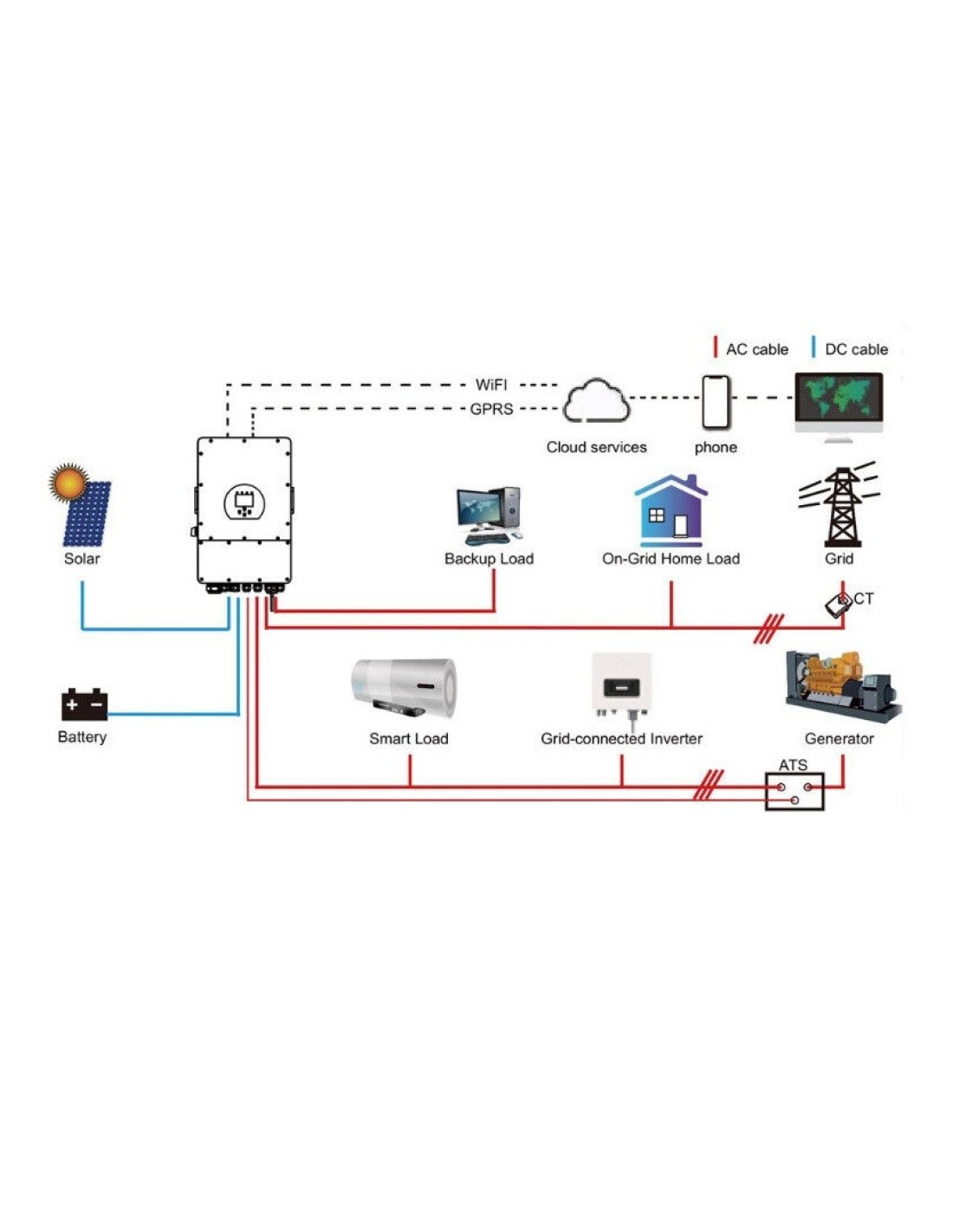

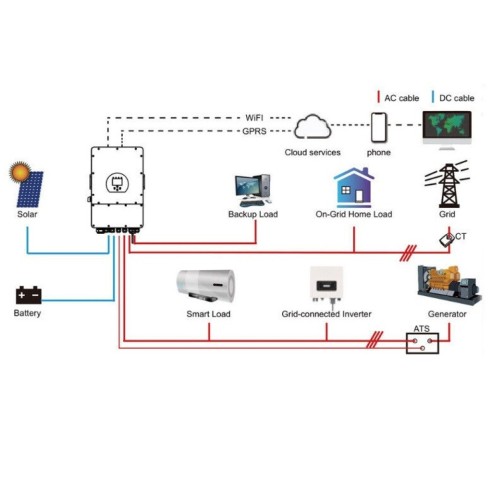

This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), 11539 (6kWh).
The three-phase Hybrid Inverter 12kW Dual MPPT, is an electronic device that converts the direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for consumption in homes or commercial premises. This inverter has an integrated Smart Meter for current measurement: no need for an additional Smart Meter. It comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, RJ45 Cable and WiFi Dongle for remote monitoring.

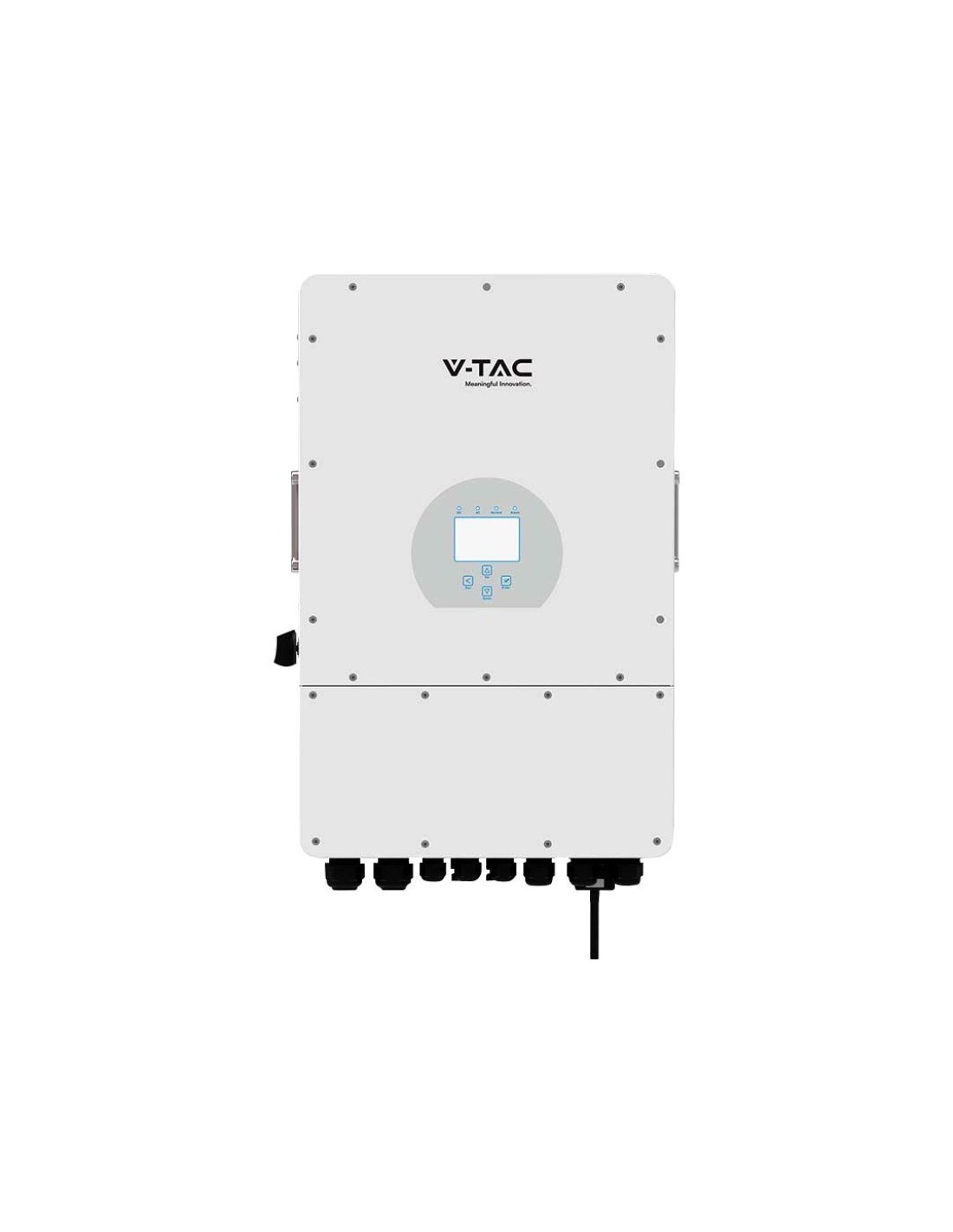

It is equipped with a colour LCD Touch Screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.
