| Entry | 220 - 240V AC - 50Hz - 500mA |
| No-load consumption | <1W |
| Reverse current | <5mA |
| Maximum charge current | 6V lead-acid battery: 2.5A |
| 12V lead-acid battery: 2.5A | |
| 12.8V LiFePO4 battery: 2.5A | |
| Holding current | 50mA |
| End-of-charge voltage | 6V lead-acid battery: 7.3V |
| 12V lead-acid battery: 14.5V | |
| LiFePO4 battery end-of-charge voltage | LiFePO4 12.8V battery: 14.5V |
| Rechargeable battery types | Wet, MF, VRLA, AGM GEL and LiFePO4 |
| Type of charge control | Constant Current (DC) |
| Battery sensing voltage | 6V lead-acid battery: 2V~7V |
| 12V lead battery: 7V~14V | |
| LiFePO4 12.8V battery: 11.6V~13.8V | |
| Recommended capacities | 6V lead battery: 4Ah~50Ah |
| 12V lead battery: 4Ah~50Ah | |
| LiFePO4 12.8V battery: 2Ah~15Ah | |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | -30°C ~ 60°C |
| IP Rating | IP65 |

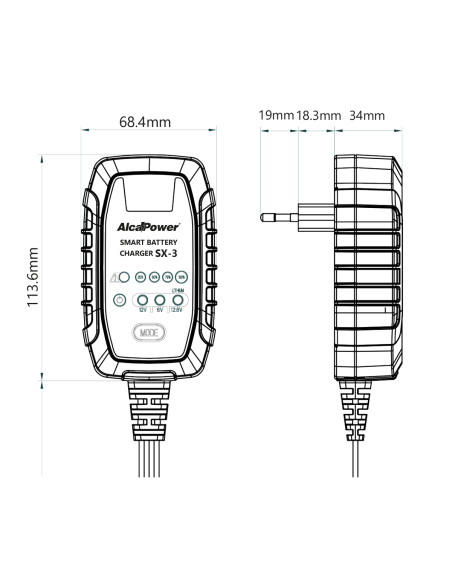

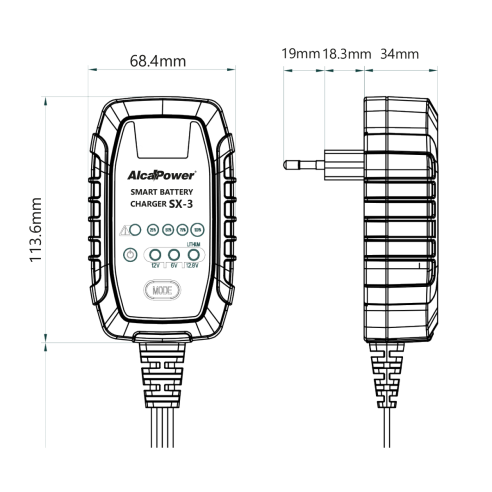

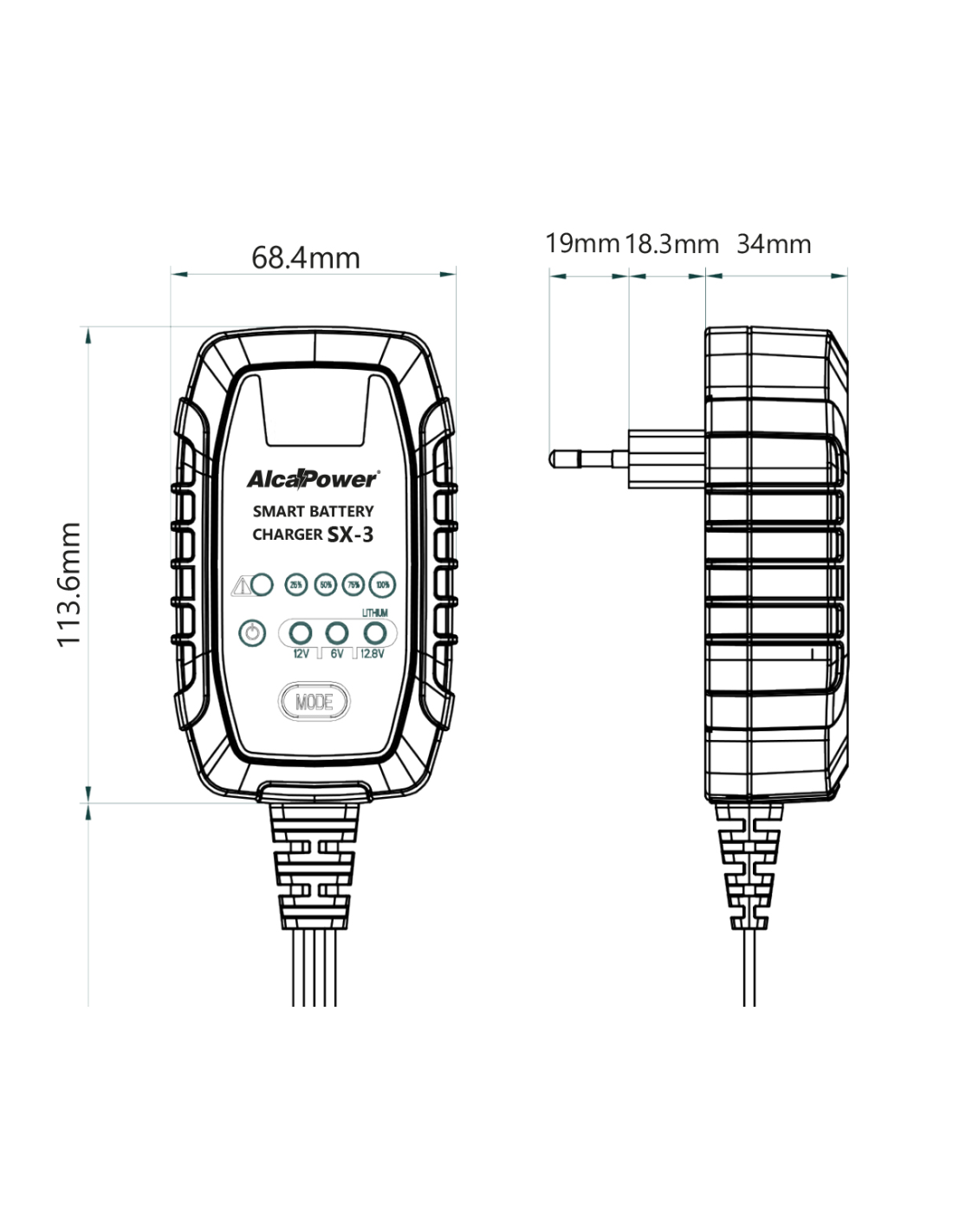

| Dimensions | 113.6 x 68.4 x 34 mm |
| Model | SX-3 |
| Manufacturer code | 702908 |
| Manufacturer | Alcapower |
