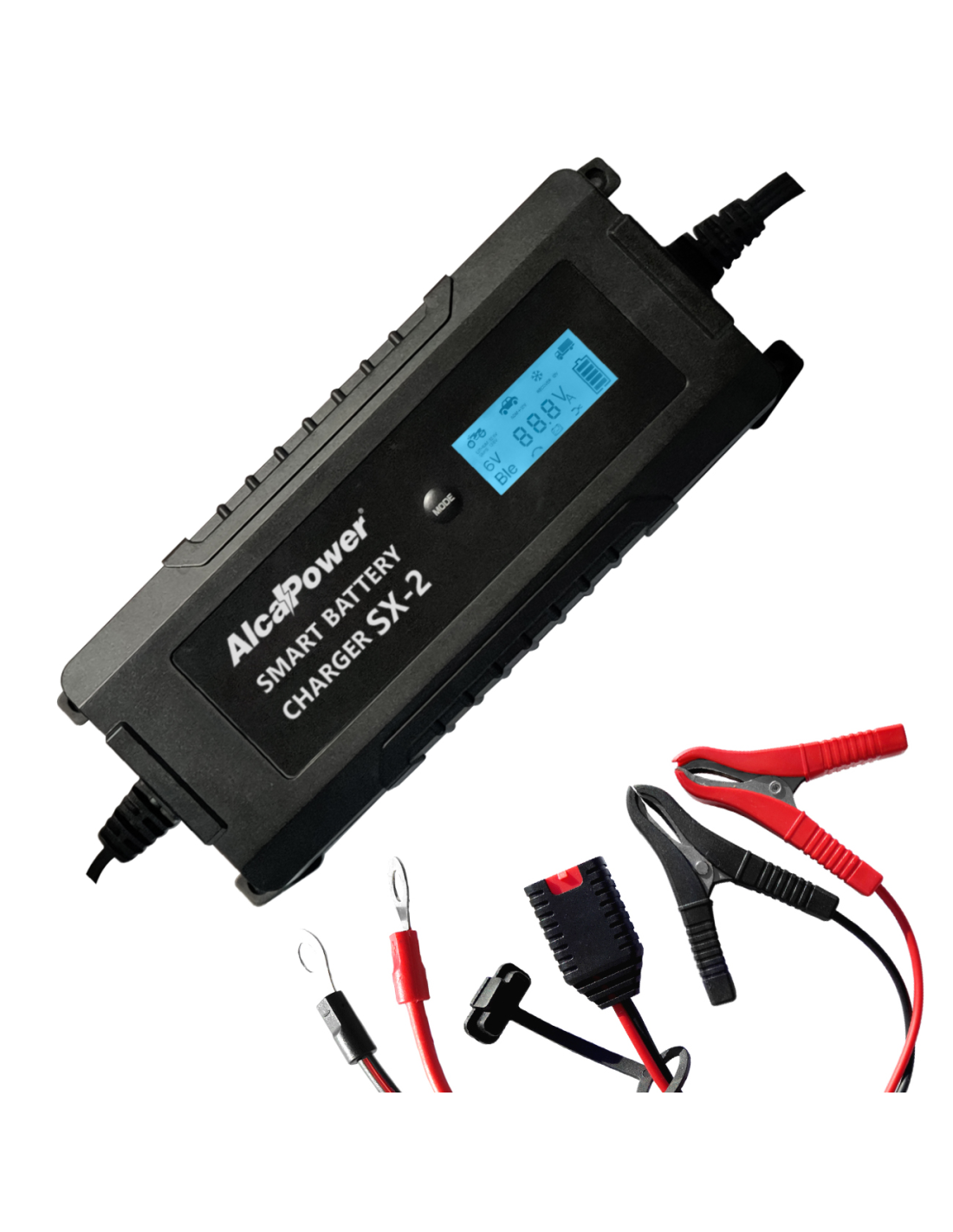

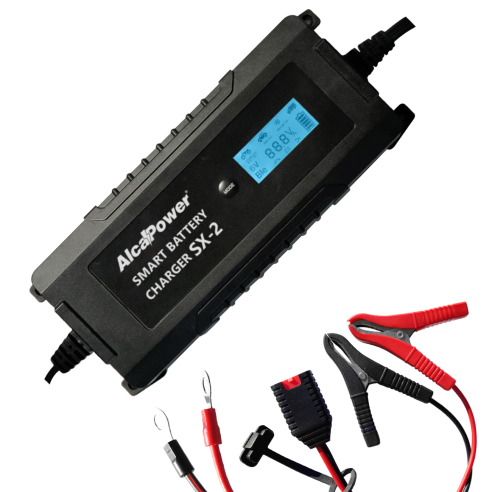

Name: Automatic charger, LiFePO4 12.8V 10~80Ah, lead 12V/24V 4~240Ah, trickle function, management via App - Alcapower SX-2
Brand: Alcapower
SKU: 01.100.0070002
Price: 70.8 EUR
Availability: InStock

SKU 01.100.0070002

In stock 3 Items

€70.80

Tax included

Selectable battery and power supply reset function
100% automatic from charge to maintenance. Equipped with fully interactive microcontroller.
Performs automatic diagnosis, restoration, charging and maintenance for months.
Automatic battery voltage detection. Selectable power supply function. 10 charging modes.

Can be operated via App on Apple iOS 8.0 or later and Android 4.4 or later systems.
To install the App, search for 'AP charger 2.0' in the App Store or Google Play.

Features:
- Input: 220-240V AC 50 Hz 1.5 A;
- Charging voltage: Normal 14.4V/28.8V DC - Cold/AGM: 14.7/29.4V DC;
- Charging current: 10A max (12V lead)- 5A max (24V lead and LiFePO4);
- Lead batteries: 12V/24V WET, GEL, AGM;
- 12V Small Mode capacity: 5Ah-18Ah;
- 12V Normal Mode capacity: 4Ah-240Ah;
- 24V Normal Mode capacity: 10Ah-120Ah;
- Lithium batteries: 12.8V 4-cell LiFePO4 10-80Ah;
- Enclosure Degree of Protection: IP65;
- Dimensions: 260.7x107.2x65.6mm.

Description

Entry	220-240V AC - 50Hz - 1.5A
No-load consumption	< 2W
Reverse current	< 10mA
Maximum charge current	12V lead batteries: 10A
	AGM+12V lead batteries: 10A
	Lead batteries 24V: 5A
	LiFePO4 12.8V batteries: 5A
	Power supply mode: 5A
	Lead batteries (SMALL mode): 1.5A
End-of-charge voltage NORMAL	12V lead batteries: 14.4V
	24V lead batteries: 28.8V
End-of-charge voltage COLD / AGM	12V lead batteries: 14.7A
	Lead batteries 24V: 29.4A
LiFePO4 battery end-of-charge voltage 12.8V	14,5V
Rechargeable battery types	Wet, MF, AGM, GEL and LiFePO4
Type of charge control	Constant Current (DC)
Battery sensing voltage	12V lead battery: 3.7V~14V
	24V lead-acid battery: 14V~28V
	LiFePO4 12.8V battery: 11.6V~13.8V
Recommended capacities	12V lead battery: 4Ah~240Ah
	24V lead-acid battery: 10Ah~120Ah
	LiFePO4 12.8V battery: 10Ah~80Ah
Protections	Short circuit, reverse polarity (>1.5V), battery overvoltage, high temperature, maximum time (50h).
0V battery function	In standby, pulses 16.5V 120mA as long as Vbat>2.0V
Operating temperature	0°C ~ 40°C
Storage temperature	-30°C ~ 60°C
IP Rating	IP65
Insulation class	Class II
Cable length	AC input: 180 cm
	Output: 150 cm
Length of accessory cables	40 cm

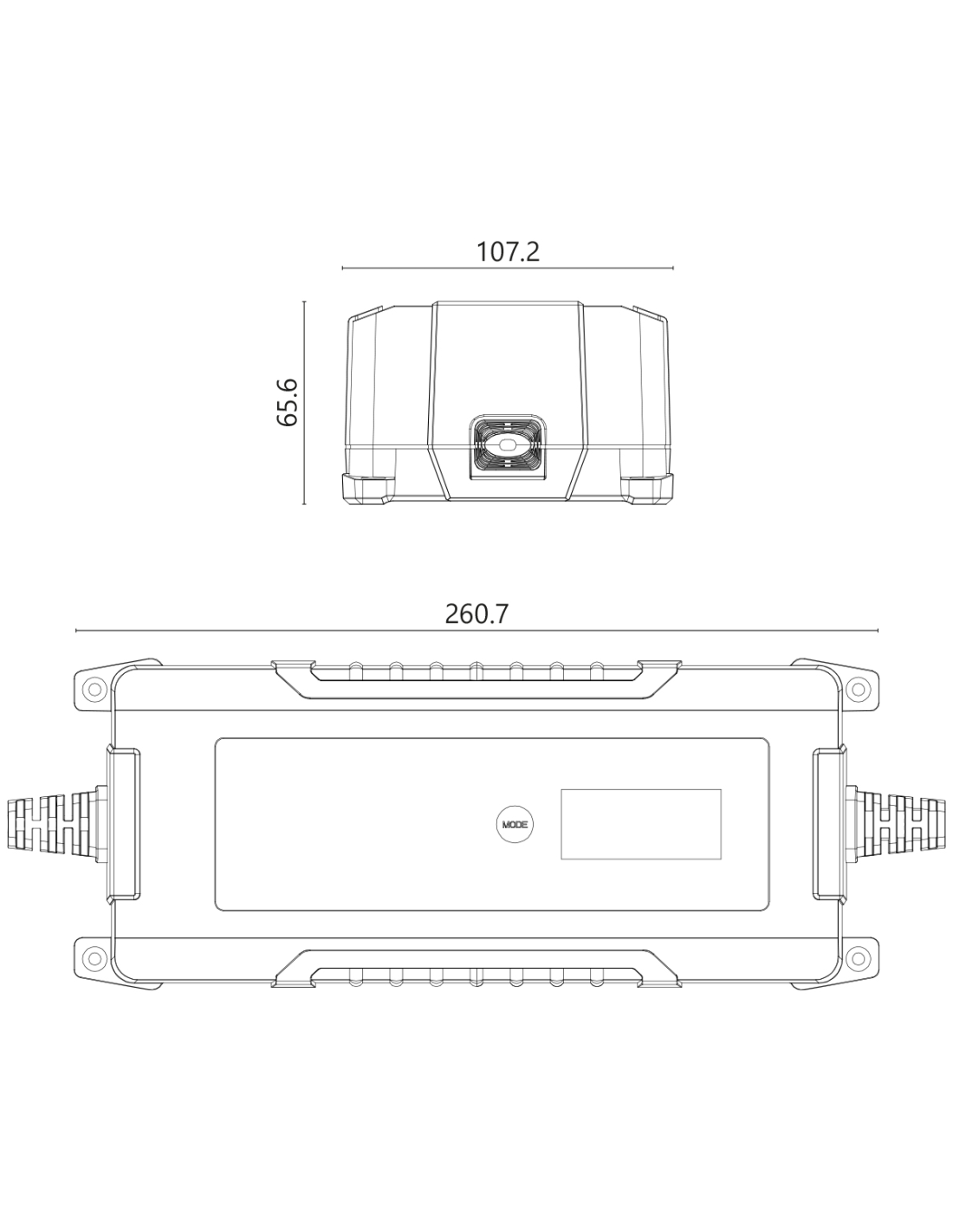

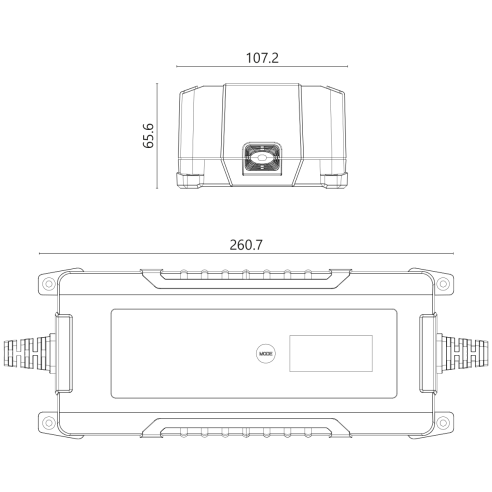

Dimensions	260.7 x 107.2 x 65.6 mm
Model	SX-2
Manufacturer code	702911
Manufacturer	Alcapower
