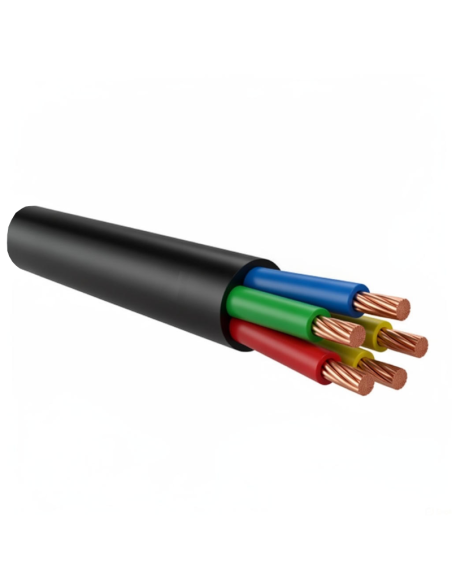

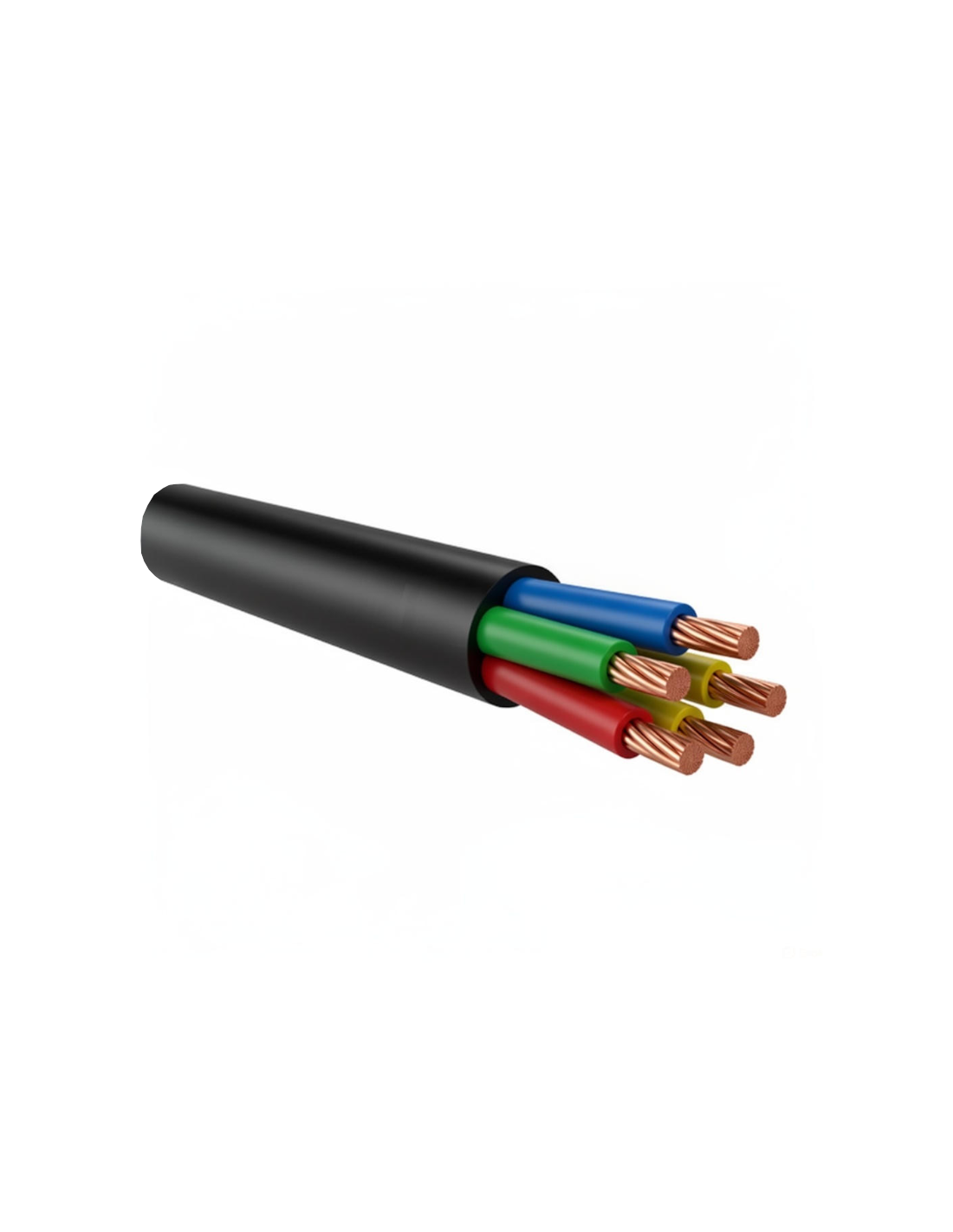

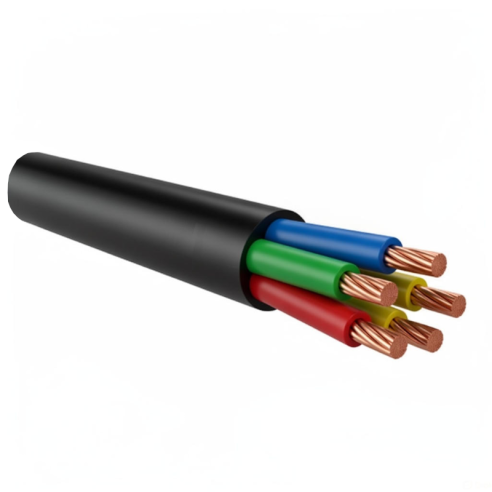

Cable H05VVF 5G2,5, cross-section 5x2,5 mm2, 5 conductors, 300/500V, CPR, black

SKU 62.501.3125020

In stock 20 Items

€382.10

Tax included

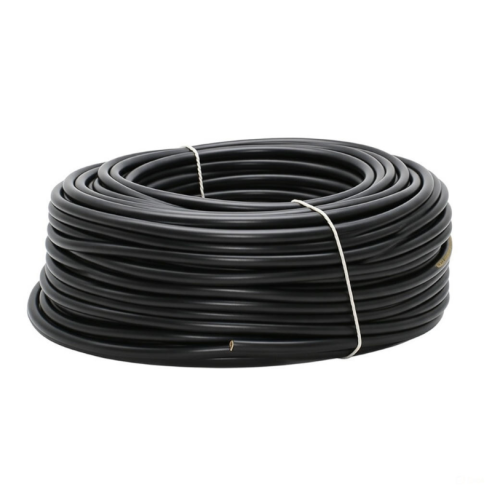

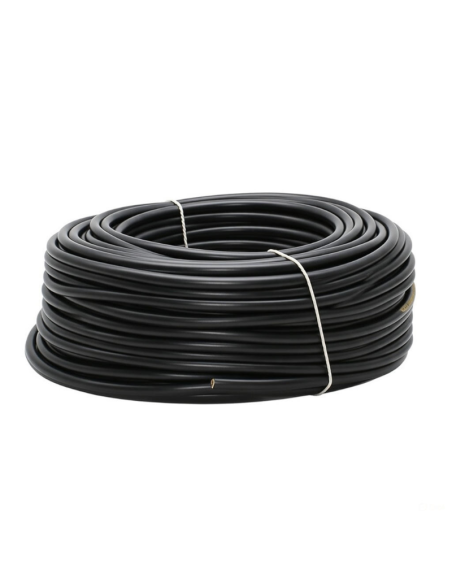

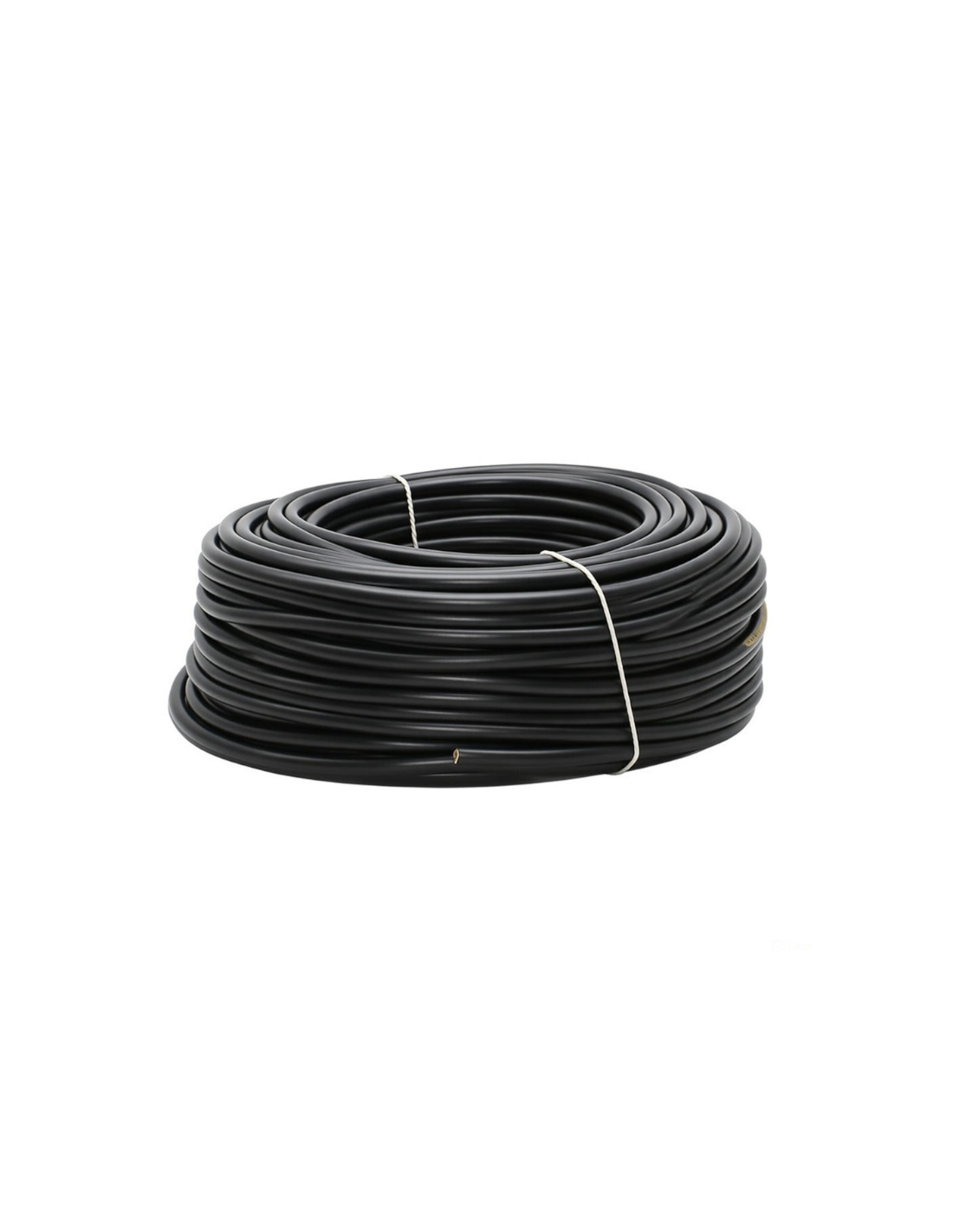

Available in hanks of 100 metres and by the metre.

Flexible energy cable, PVC insulated, under lightweight PVC sheath. For mobile laying. Use in domestic and office premises, for applications and appliances for ordinary service, including wet rooms (e.g. hoovers, washing machines, dryers and refrigerators). Outdoor use is permitted for short-term temporary periods.

Packaging

Description

Number of conductors	5
Conductor material	Flexible annealed red copper rope, class 5
Insulation	TI2 quality PVC compound
Outer sheath	TM2 quality PVC compound
Rated voltage	300/500V
Maximum operating temperature:	60°C
Minimum installation temperature:	5°C
Maximum short-circuit temperature:	150°C
Maximum tractive effort:	15 N/mm2
Colour of outer sheath	Black
Conductor diameter	1.9 mm
Average insulation thickness	0.8 mm
Average sheath thickness	1.2 mm
Outer diameter	13.2 mm
Regulations	CPR (EU) No. 305/11, EN 50525-2-11 - CEI 20-107/2-11, 2014/35/EU, 2011/65/EC
Manufacturer	According to stock availability. Main suppliers: La Triveneta, Prysmian, Baldassarri Cavi.
