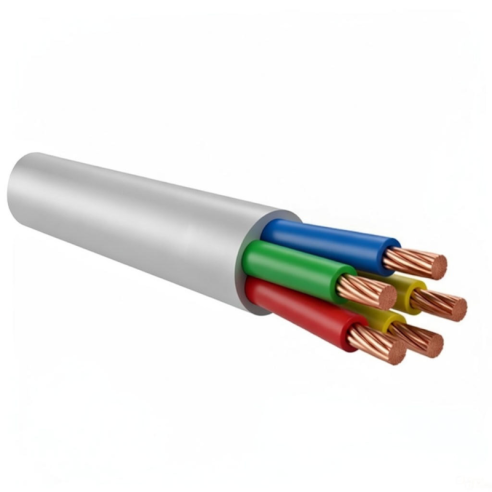

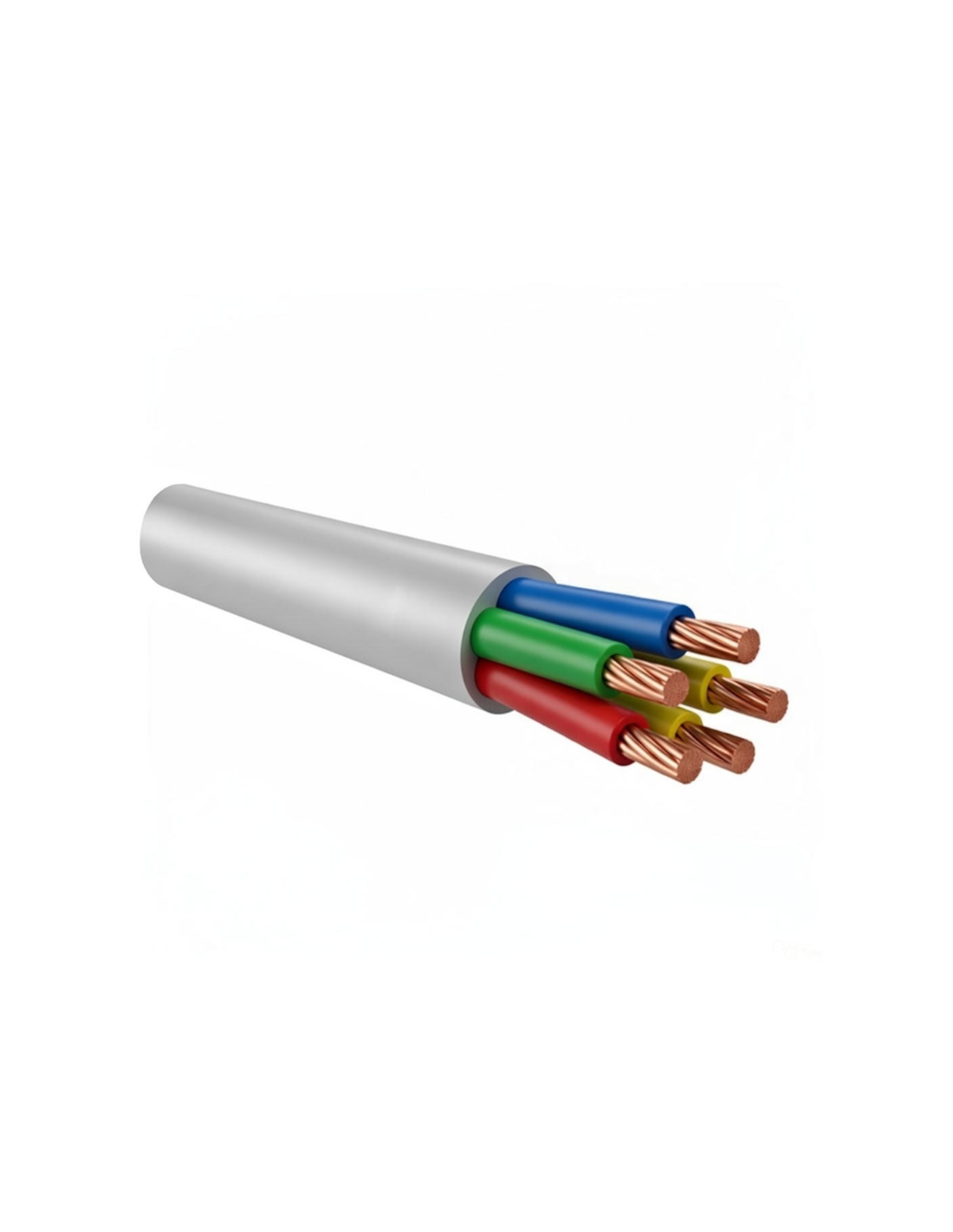

H05VVF 5G0.75 cable, cross-section 5 × 0.75 mm², 5 conductors, 300/500 V, CPR, white

SKU 62.502.3122060

In stock 1000 Items

€1.73

Tax included

Available in 100-metre balls and by the metre.

Flexible power cable, PVC-insulated, with a lightweight PVC sheath. For temporary installation. For use in domestic premises and offices, for applications and appliances intended for general use, including damp locations (e.g. vacuum cleaners, washing machines, tumble dryers and refrigerators). Outdoor use is permitted for short, temporary periods.

Packaging

Description

Number of conductors	5
Conductor material	Flexible annealed red copper wire, Class 5
Insulation	TI2 quality PVC compound
Outer sheath	TM2 quality PVC compound
Rated voltage	300/500V
Maximum operating temperature:	60°C
Minimum installation temperature:	5°C
Maximum short-circuit temperature:	150°C
Maximum tractive effort:	15 N/mm2
Colour of outer sheath	White
Conductor diameter	1.1 mm
Average insulation thickness	0.6 mm
Average sheath thickness	0.9 mm
Outer diameter	9.3 mm
Regulations	Regulation (EU) No 305/11, EN 50525-2-11 – CEI 20-107/2-11, 2014/35/EU, 2011/65/EC
Manufacturer	Subject to stock availability. Main suppliers: La Triveneta, Prysmian, Baldassarri Cavi.
