Solid-state slim relay, 24Vdc, SPST-NO, 2 A, switching voltage 240Vac, series 34.81 - Finder 34.81.7.024.8240

Solid-state slim relay, 24Vdc, SPST-NO, 2 A, switching voltage 240Vac, series 34.81 - Finder 34.81.7.024.8240

Name: Solid-state slim relay, 24Vdc, SPST-NO, 2 A, switching voltage 240Vac, series 34.81 - Finder 34.81.7.024.8240
Brand: Finder
SKU: 52.130.7104001
Price: 32.5 EUR
Availability: InStock

SKU 52.130.7104001

In stock 20 Items

€32.50

Tax included

Solid State Relay (SSR) for PCB or 93 series sockets.
Quiet, high switching speed and long electrical life, ultra-slim.
Suitable for PCB mounting.

Features:
- PCB mounting (direct or on PCB sockets) or 35 mm rail mounting (EN 60715) on sockets with socket, spring or push-in terminals;
- Single output circuit 2 A, 240 V AC;
- Quiet, high switching speed and electrical life;

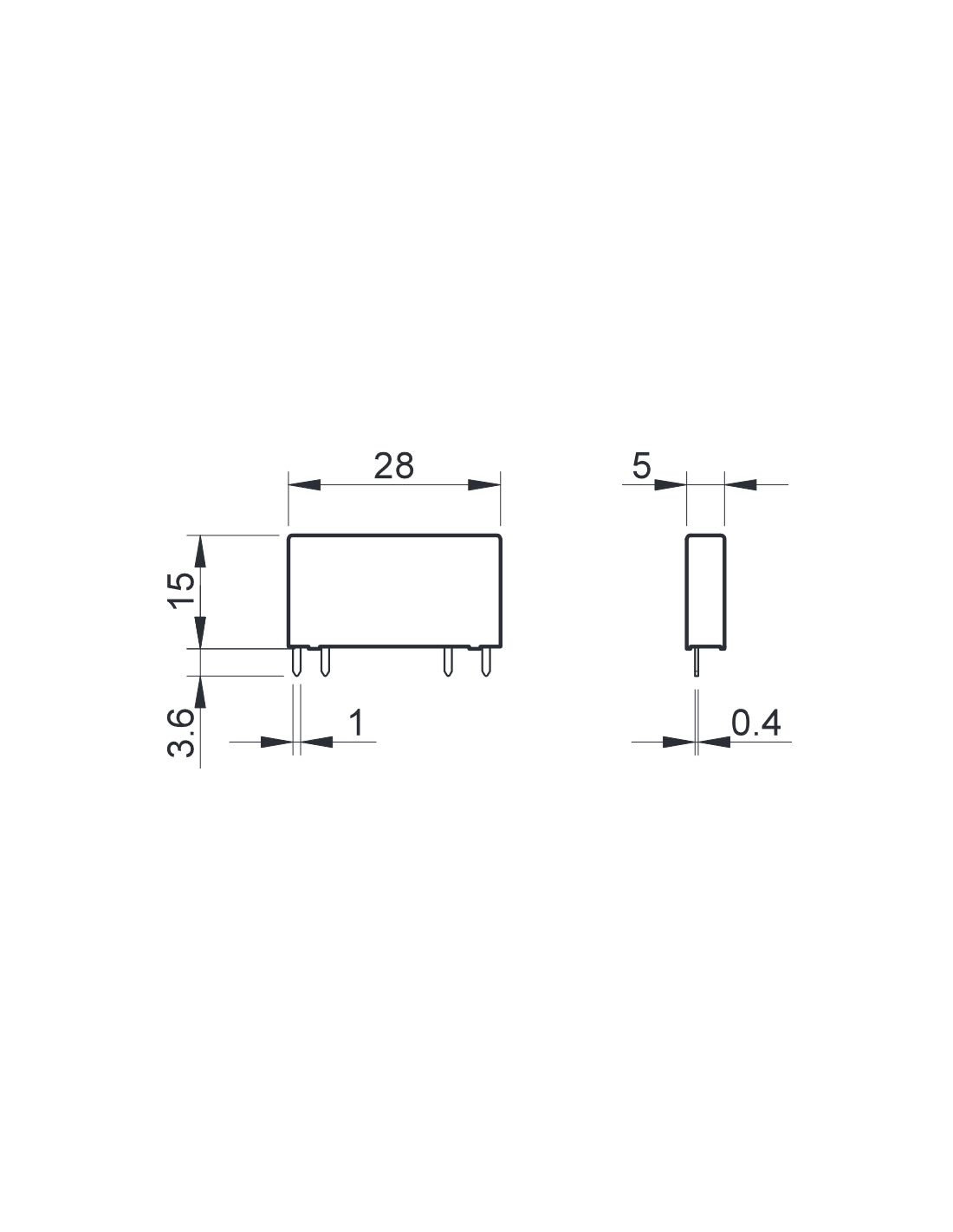

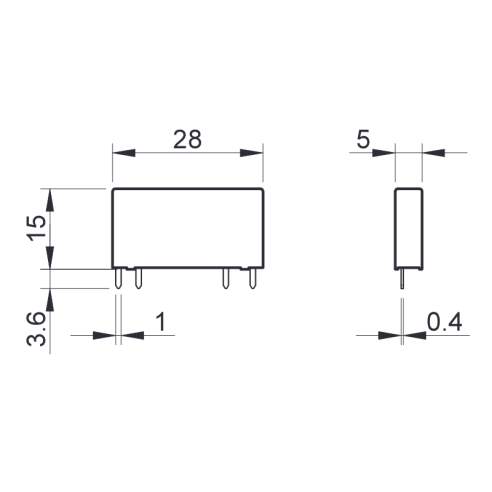

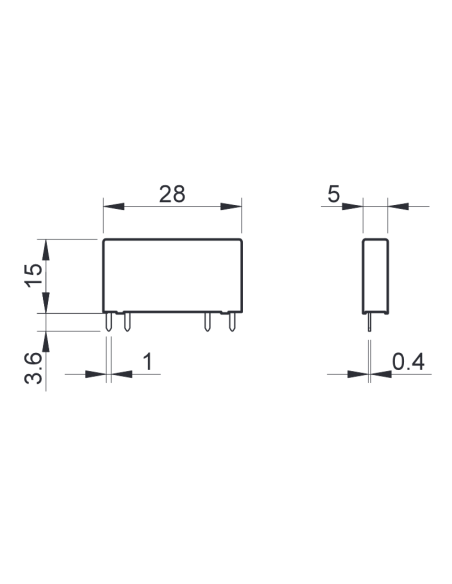

- Ultra slim, 5 mm wide;
- Sensitive DC coil, input circuit (AC/DC power supply possible using 93 series sockets);
- UL Listing (relay/socket combination);
- Washable: RT III;
- Input-to-output isolation 3000 V AC.

Description

Output circuit

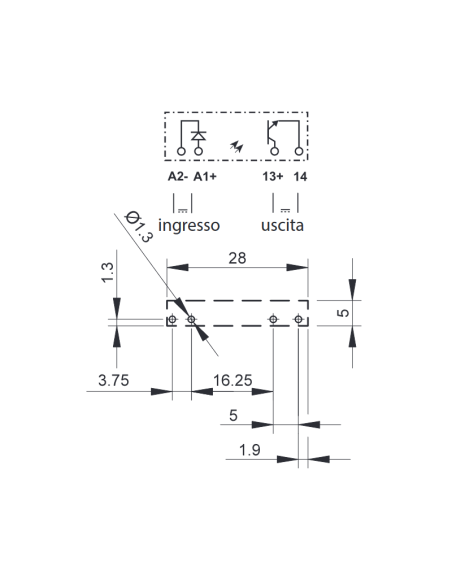

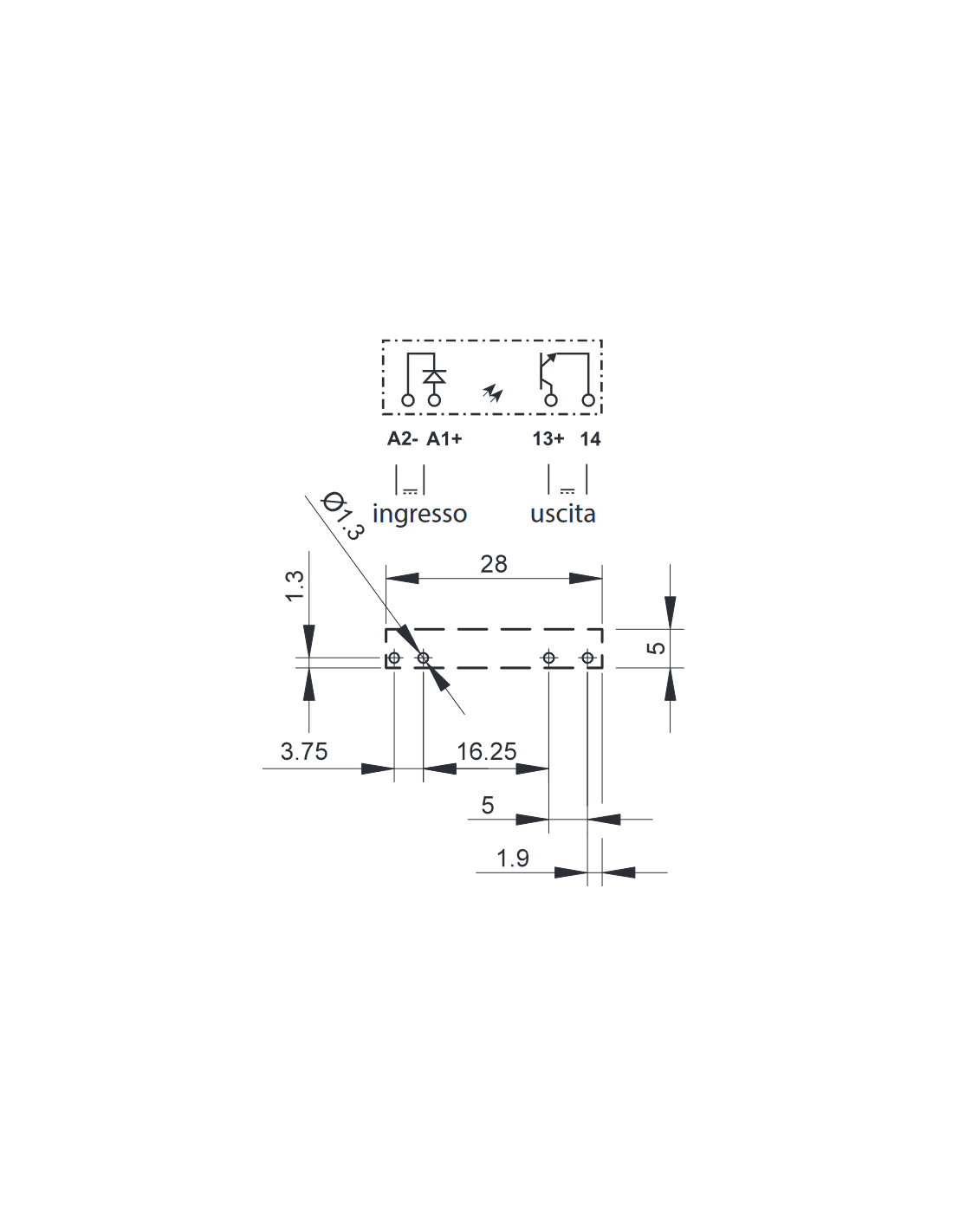

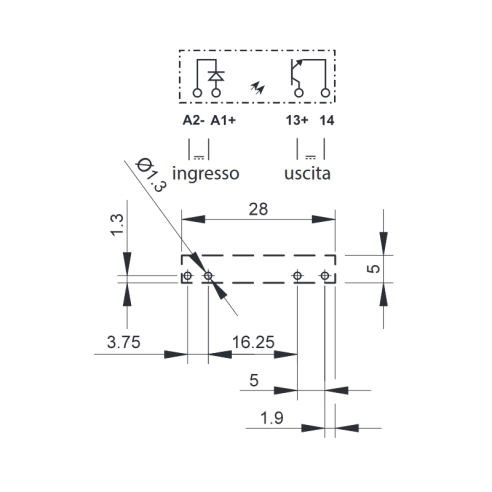

Contact configuration	1 NO contact
Rated current/maximum instantaneous current	2A / 80A
Rated switching voltage	240 Vac
Switching voltage	12 ~ 275 Vac
Repetitive peak voltage in OFF state	800 V
Nominal load in AC15	300 VA
Minimum switching current	35 mA
Maximum output drop-out voltage ON	1,6 V
Input circuit
Supply voltage	24 Vdc
Nominal power	0,17 W
Operating range	16 ~ 30 Vdc
Nominal absorption	7 mA
Release voltage	10 Vdc
General features
Electrical service life at rated load	> 10⁶ cycles
Tripping time: ON/OFF	11 mS
Isolation between entrance and exit	4 KV
Operating temperature	-20°C ~ +50°C
Protection category	RTIII
Product information
Model	34.81.7.024.8240
Manufacturer	Finder
