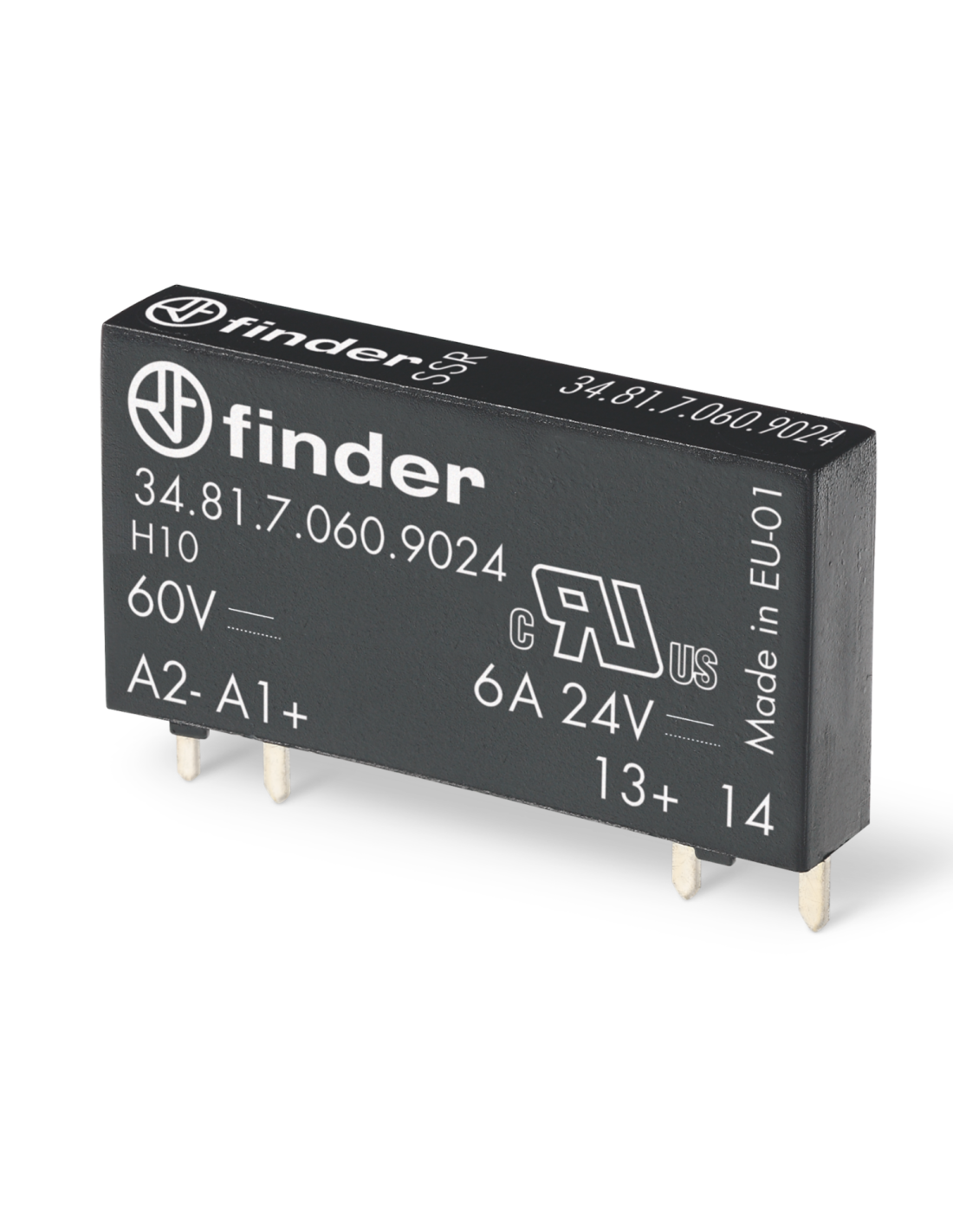

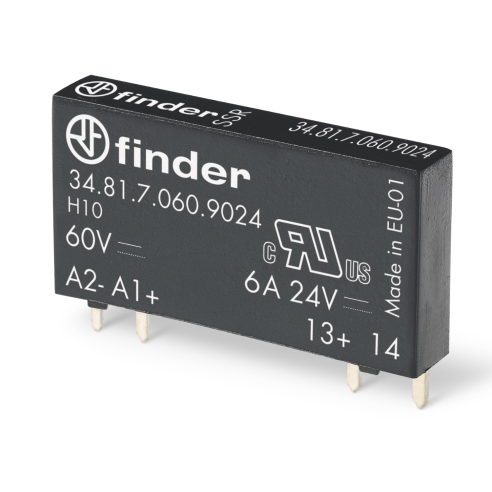

Solid-state slim relay, 60Vdc, SPST-NO, 6 A, switching voltage 24Vdc, through-hole (THT), series 34.81 - Finder 34.81.7.060.9024

Solid-state slim relay, 60Vdc, SPST-NO, 6 A, switching voltage 24Vdc, through-hole (THT), series 34.81 - Finder 34.81.7.060.9024

Name: Solid-state slim relay, 60Vdc, SPST-NO, 6 A, switching voltage 24Vdc, through-hole (THT), series 34.81 - Finder 34.81.7.060.9024
Brand: Finder
SKU: 52.130.7105000
Price: 30.6 EUR
Availability: InStock

SKU 52.130.7105000

In stock 25 Items

€30.60

Tax included

Solid State Relay (SSR) for PCB or 93 series sockets.
Low noise, high switching speed and long electrical life.0.1 - 6 A, ultra-slim.
Suitable for PCB mounting.

Features:
- PCB mounting (direct or on PCB sockets) or 35 mm rail mounting (EN 60715) on sockets with socket, spring or push-in terminals;
- Single output circuit 6 A, 24 V DC;
- Noiseless, high switching speed and electrical life;

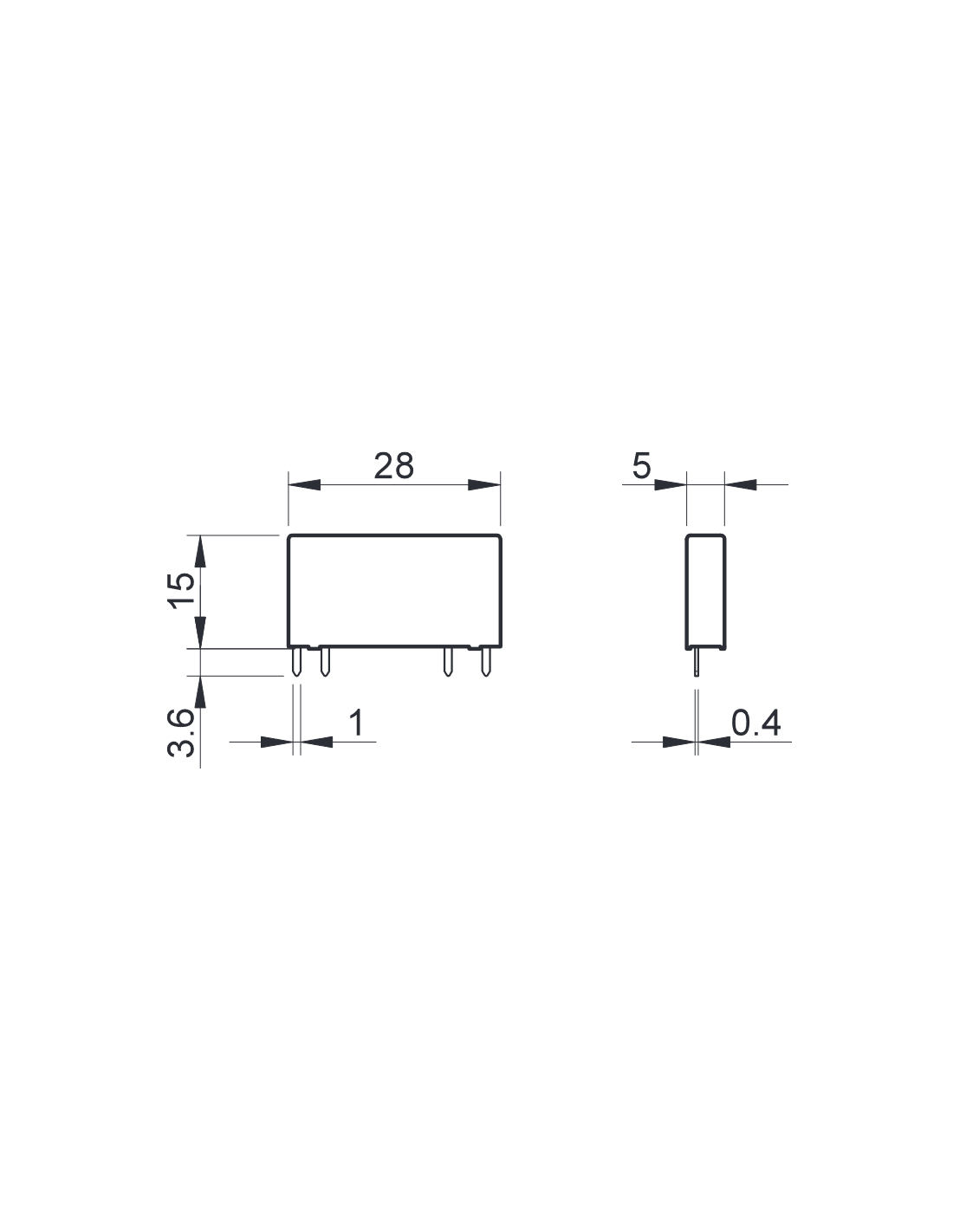

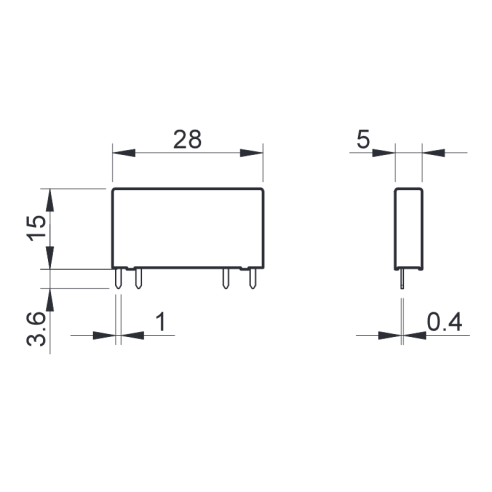

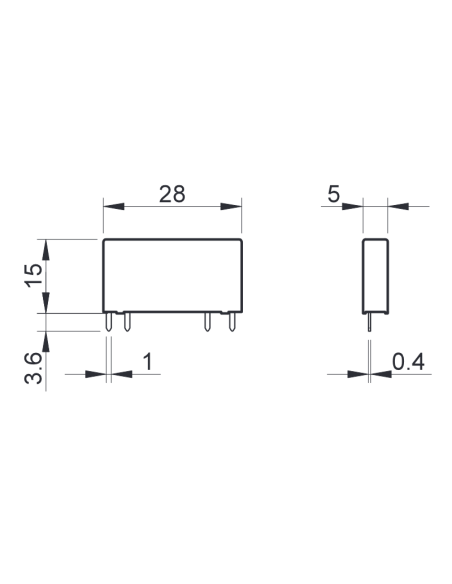

- Ultra slim, 5 mm wide;
- Sensitive DC coil, input circuit (AC/DC power supply possible using 93 series sockets);
- UL Listing (relay/socket combination);
- Washable: RT III;
- Input-to-output isolation 3000 V AC.

Description

Output circuit

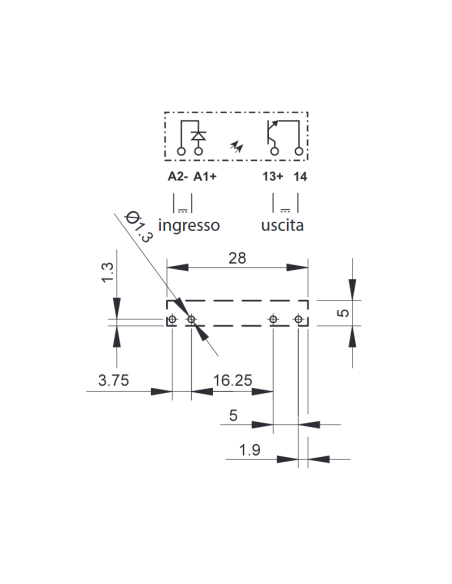

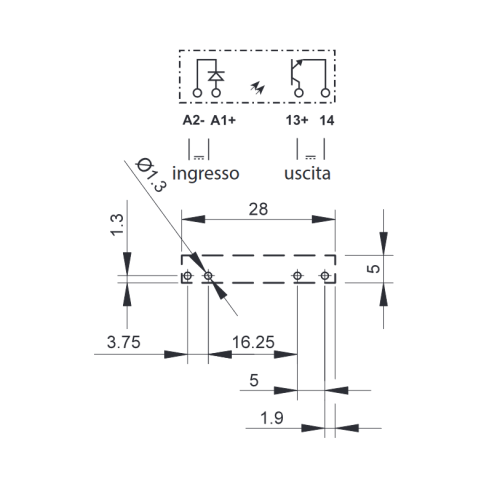

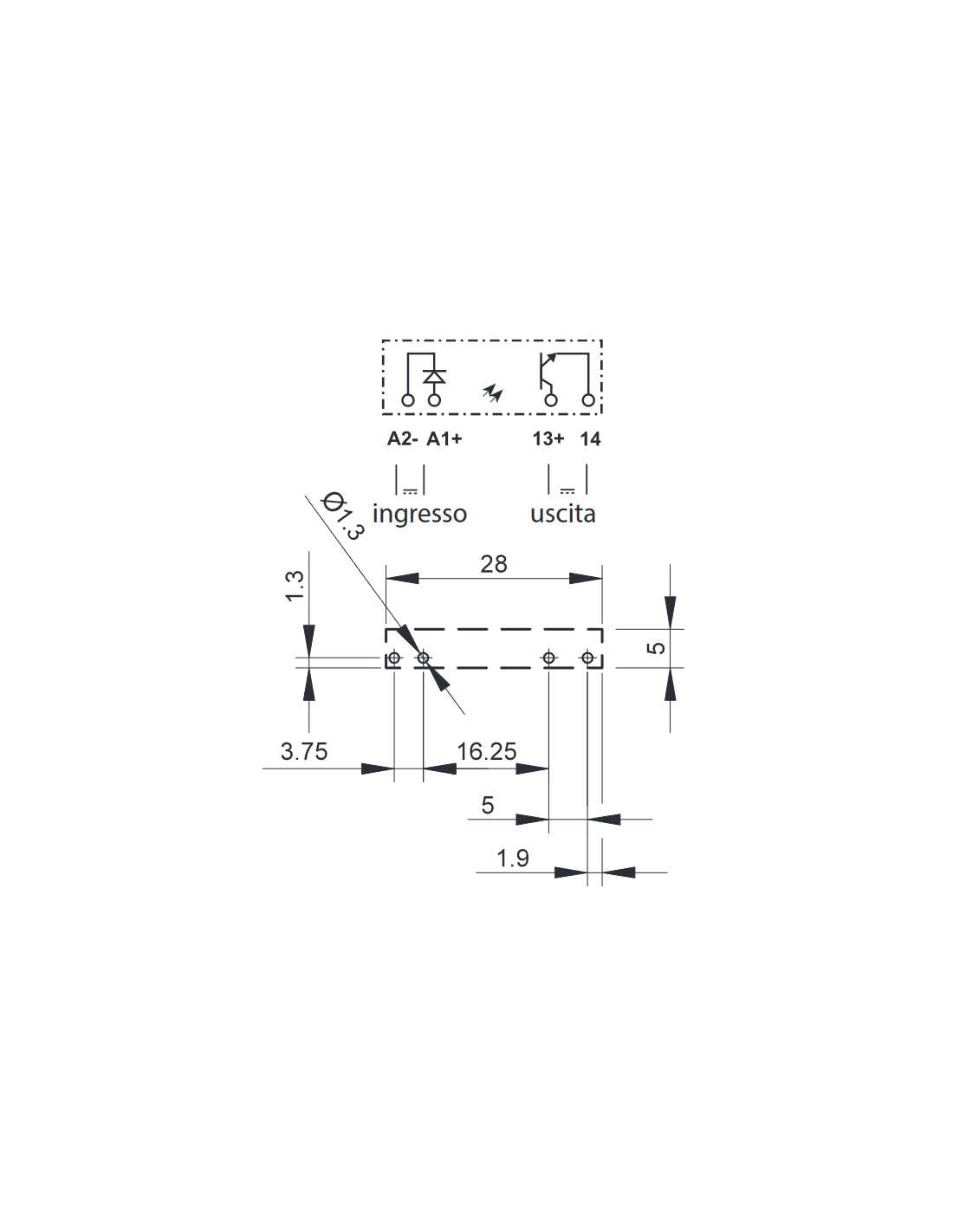

Contact configuration	1 NO contact
Rated current/maximum instantaneous current	6A / 50A
Rated switching voltage	24 Vdc
Switching voltage	1.5 ~ 33 Vdc
Maximum blocking voltage	33 Vdc
Nominal load in DC13	36 W
Minimum switching current	1 mA
Maximum output drop-out voltage ON	0,4 V
Input circuit
Supply voltage	60 Vdc
Nominal power	0,21 W
Operating range	35 ~ 72 Vdc
Nominal absorption	3.5 mA
Release voltage	20 Vdc
General features
Electrical service life at rated load	> 10⁶ cycles
Tripping time: ON/OFF	0.2 mS
Isolation between entrance and exit	4 KV
Operating temperature	-20°C ~ +70°C
Protection category	RTIII
Product information
Model	34.81.7.060.9024
Manufacturer	Finder
