Solid-state slim relay, 24Vdc, SPST-NO, 0.1 A, switching voltage 48Vdc, 34.81 series - Finder 34.81.7.024.7048

Solid-state slim relay, 24Vdc, SPST-NO, 0.1 A, switching voltage 48Vdc, 34.81 series - Finder 34.81.7.024.7048

Name: Solid-state slim relay, 24Vdc, SPST-NO, 0.1 A, switching voltage 48Vdc, 34.81 series - Finder 34.81.7.024.7048
Brand: Finder
SKU: 52.130.7104002
Price: 23.9 EUR
Availability: InStock

SKU 52.130.7104002

In stock 27 Items

€23.90

Tax included

Solid State Relay (SSR) for PCB or 93 series sockets.
Quiet, high switching speed and long electrical life, ultra-slim.
Suitable for PCB mounting.

Features:

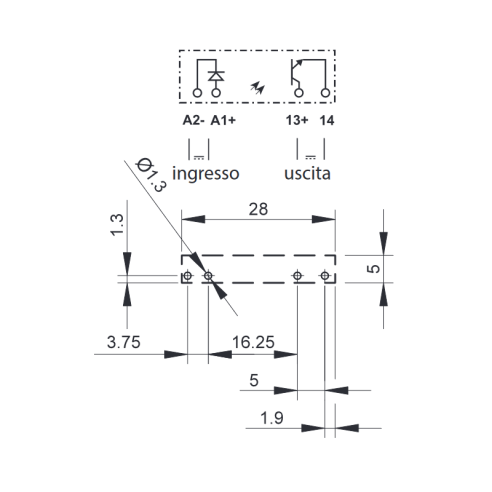

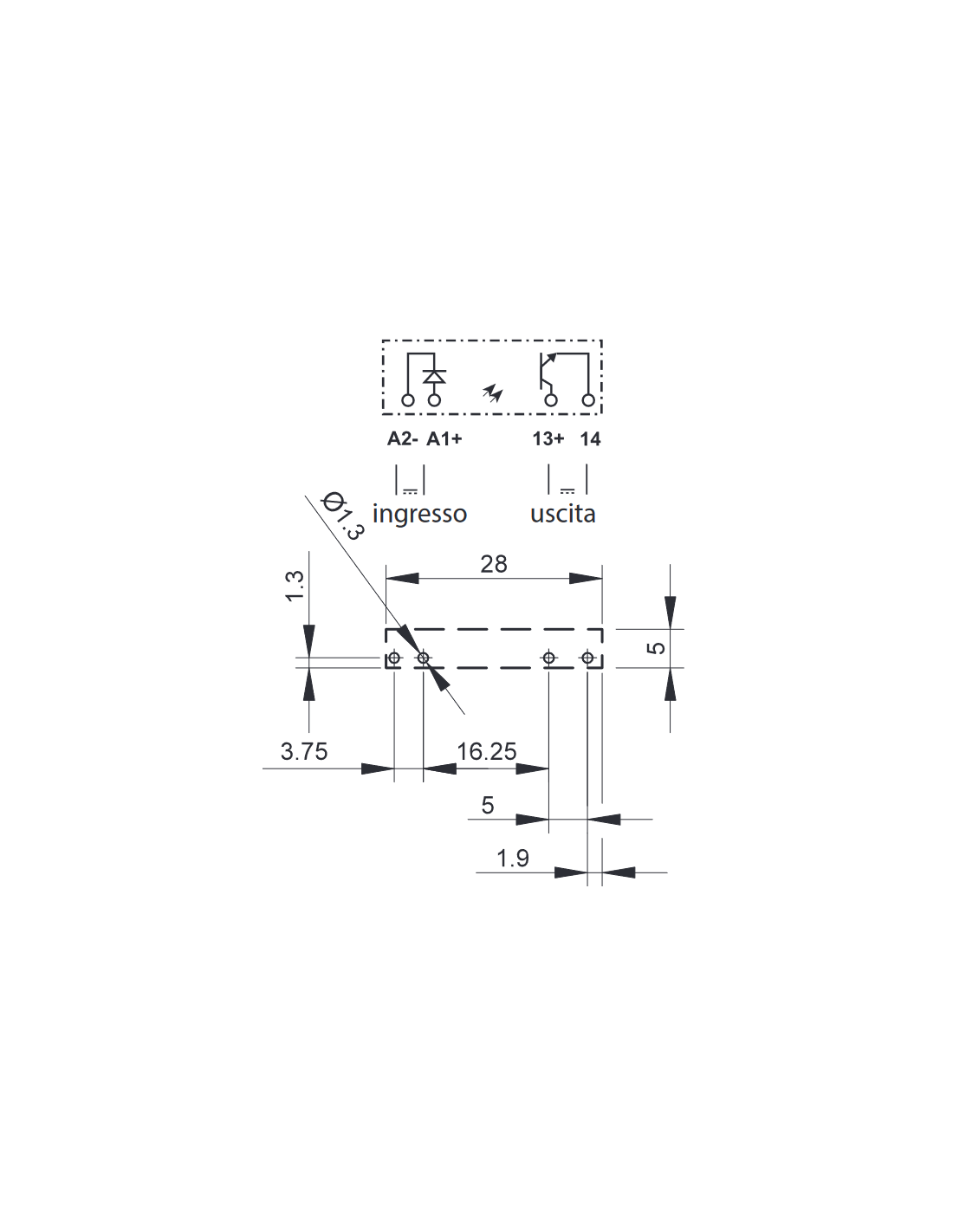

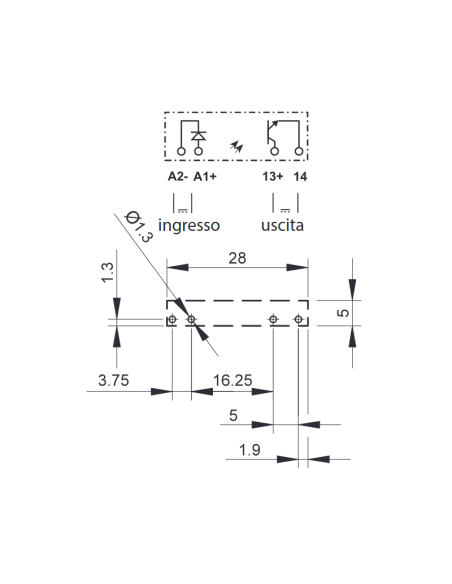

- PCB mounting (direct or on PCB sockets) or 35 mm rail mounting (EN 60715) on sockets with socket, spring or push-in terminals;
- Single output circuit 0.1 A, 48 V DC;
- Noiseless, high switching speed and electrical life;

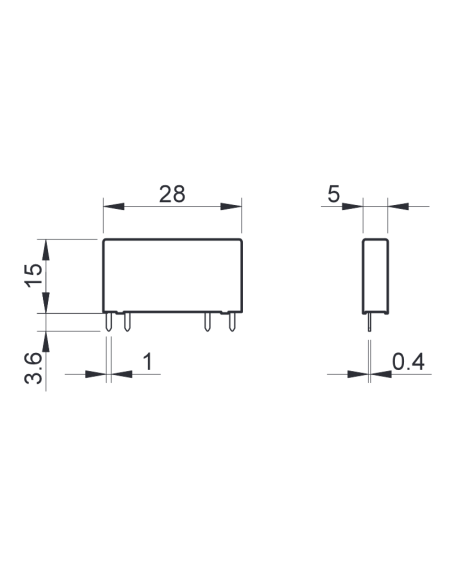

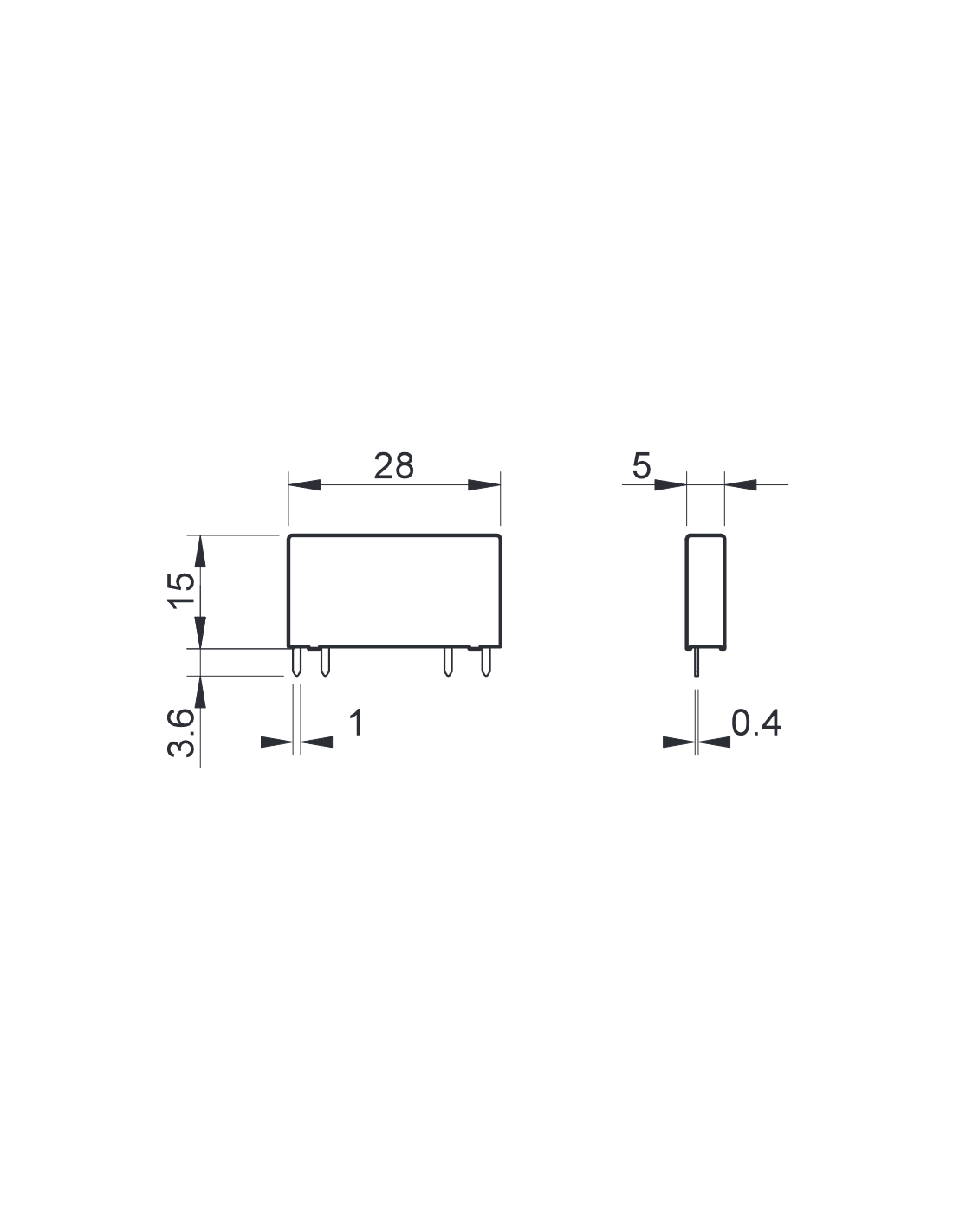

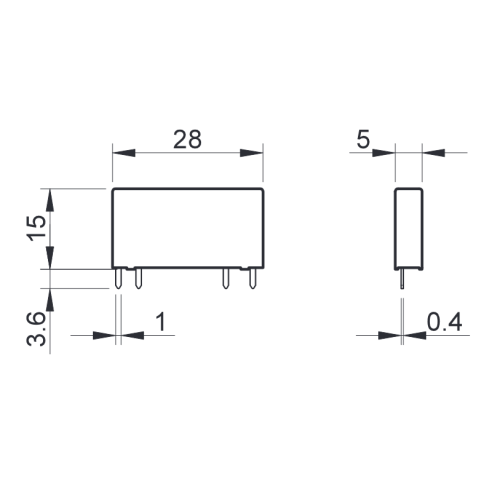

- Ultra slim, 5 mm wide;
- Sensitive DC coil, input circuit (AC/DC power supply possible using 93 series sockets);
- UL Listing (relay/socket combination);
- Washable: RT III;
- Input-to-output isolation 3000 V AC.

Description

Output circuit
Contact configuration	1 NO contact
Rated current/maximum instantaneous current	0.1A / 0.5A
Rated switching voltage	48 Vdc
Switching voltage	1.5 ~ 53 Vdc
Maximum blocking voltage	53 V
Nominal load in DC13	2,4 W
Minimum switching current	0.05 mA
Maximum output drop-out voltage ON	1 V
Input circuit
Supply voltage	24 Vdc
Nominal power	0,17 W
Operating range	16 ~ 30 Vdc
Nominal absorption	7 mA
Release voltage	10 Vdc
General features
Electrical service life at rated load	> 10⁶ cycles
Tripping time: ON/OFF	0.03 / 0.06 ms
Isolation between entrance and exit	4 KV
Operating temperature	-20°C ~ +70°C
Protection category	RTIII
Product information
Model	34.81.7.024.7048
Manufacturer	Finder
