NFC and Bluetooth digital astronomical switch, annual, 1 minute interval, DPDT, 16A, 230Vac, 12 series - Finder 12.B2.8.230.0000

NFC and Bluetooth digital astronomical switch, annual, 1 minute interval, DPDT, 16A, 230Vac, 12 series - Finder 12.B2.8.230.0000

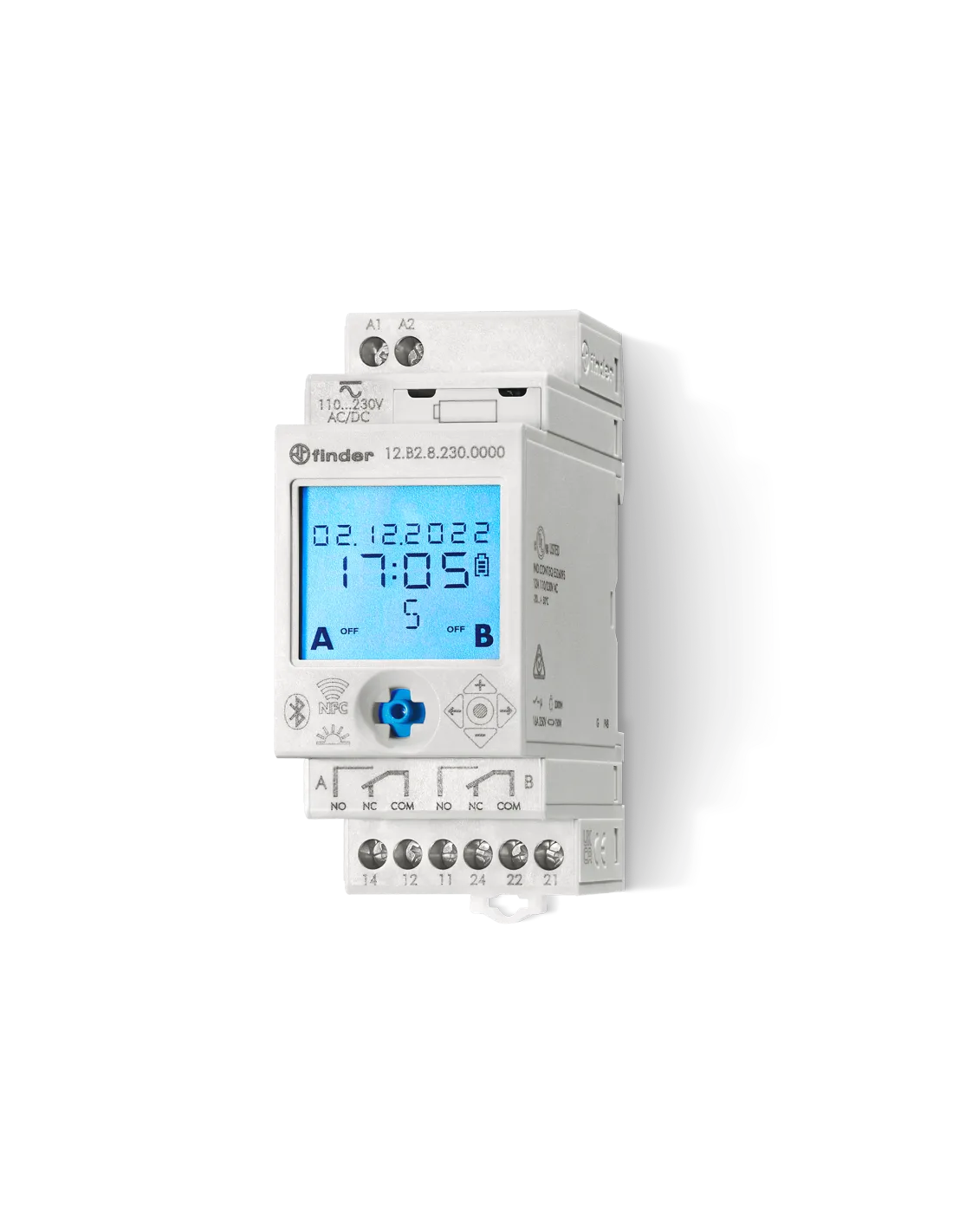

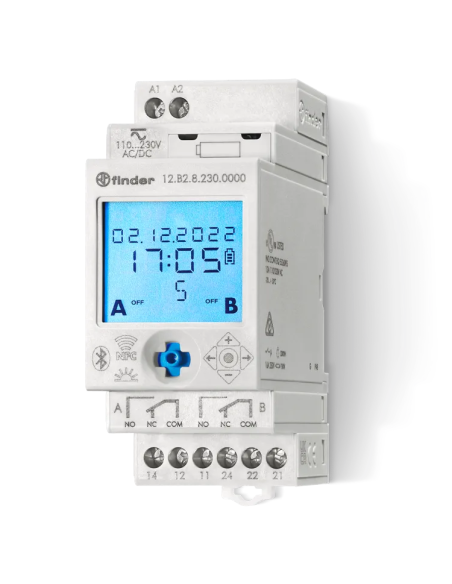

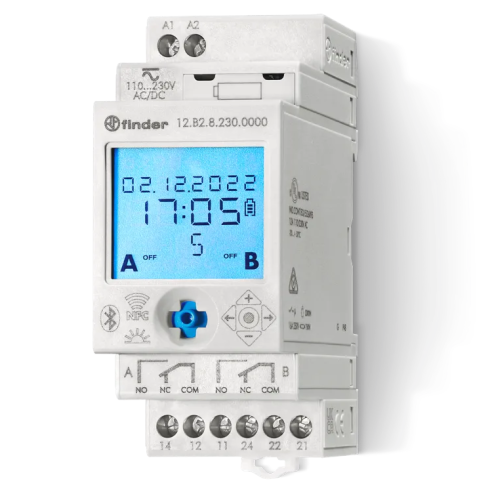

Name: NFC and Bluetooth digital astronomical switch, annual, 1 minute interval, DPDT, 16A, 230Vac, 12 series - Finder 12.B2.8.230.0000
Brand: Finder
SKU: 61.181.0303005
Price: 166.3 EUR
Availability: InStock

SKU 61.181.0303005

In stock 4 Items

€166.30

Tax included

Bluetooth annual astronomical time switch with specific weekly programming for different periods or days.
Ideal for use in schools, small automations, public and advertising lighting.
Synchronisable via wireless GPS antenna (Type 012. BG.8.230) and expandable via Bluetooth inputs and outputs (Type 13.21-B and Type 1Y.P2).

Different programming modes:
- "Smart" via Smartphone - Android and Apple - with Bluetooth and NFC technology
- Classic" via integrated joystick for manual programming

Technical features:
- Annual programming with advanced functions
- Bluetooth 5 + NFC for configuration by app and for expandability
- 2 changeover contacts 16 A
- Power supply 110 ~ 230 V AC/DC
- Expandable outputs and inputs via 1Y.P2 and 13.21-B
- Synchronisable via external wireless GPS antenna (Type 012.BG.8.230)

Description

Contact configuration
Contact configuration	2 changeover contacts
Rated current / maximum instantaneous current	16A / 30A
Rated / maximum switchable voltage	250 / 400 Vac
Nominal load in AC1	4000 VA
Nominal load in AC15	750 VA
Lamp range	Incandescent/Halogen: 2000W
	Fluorescence: 1000W
	CFL: 400W
	Led: 400W
	Halogen: 800W
Minimum switchable load	1000mW
Contact material	AgSnO2
Power supply characteristics
Supply voltage	110 ~ 230 Vac
Nominal power	2.8 VA
General features
Electrical durability	100 x 10³ cycles
Programming type	Annual
Memories	100
Minimum programming interval	1 minute
Accuracy	1 second/day
Communication protocol	NFC, Bluetooth 5
IP Rating	IP20
Product Information
Model	12.B2.8.230.0000
Manufacturer	Finder
