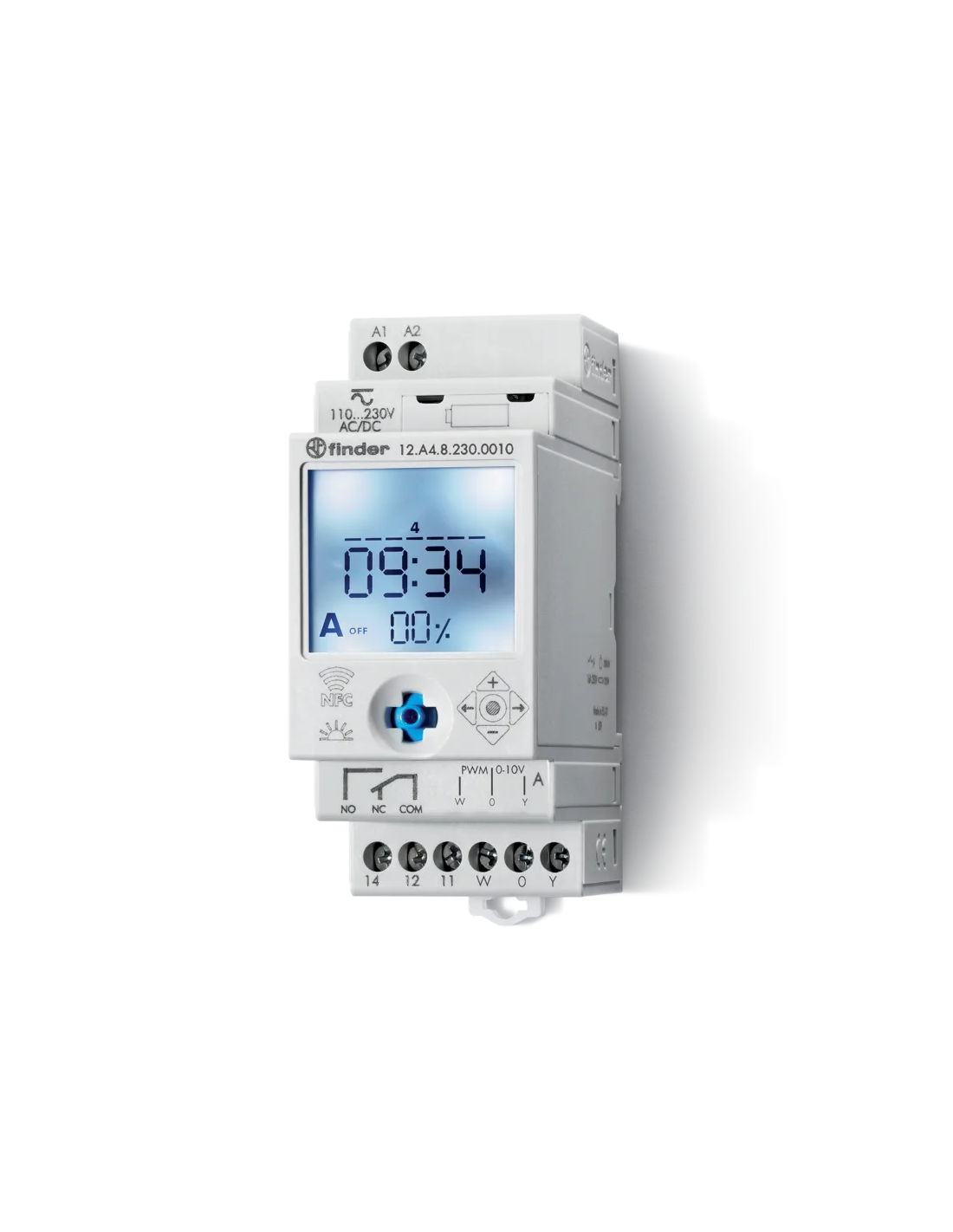

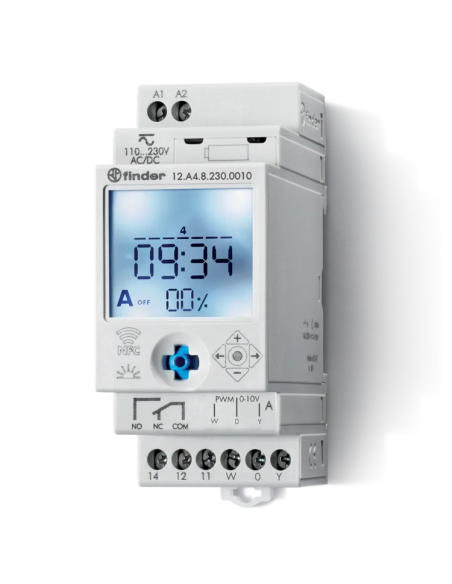

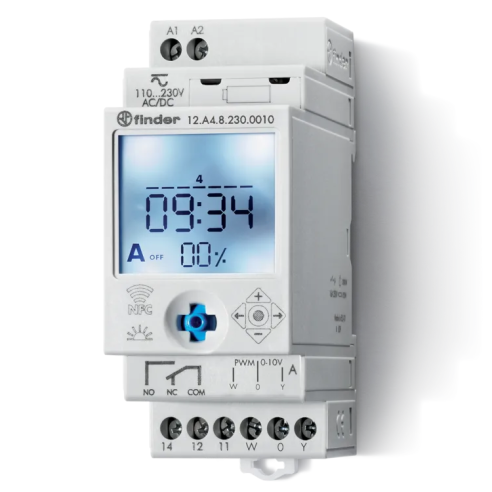

NFC astronomical switch, weekly, 1 minute interval, output 0-10 V or PWM, SPST, 16A, 230Vac - Finder 12.A4.8.230.0010

The weekly time/time switch Type 12.A4, which is compatible with power supplies with 0-10 V or PWM inputs, is the right product for applications where a variation of the load intensity level is required in a certain time slot.

Features:
- 1 analogue output: 0-10 V or PWM
- Functions: 'Astro' ON, 'Astro' OFF, ON/OFF
- Easily set geographical coordinates, by postcode, for most European countries
- Offset function: allows you to advance or delay (up to 90′, in steps of 1′) the switching on and off of lights relative to sunrise and sunset times
- Minimum programming interval 1 minute
- Automatic summer/winter time change, or by Latitude and Longitude
- LCD display for visualisation, configuration and programming
- 4-digit PIN lock
- Backlit display
- Internal battery for programming without power supply, easily replaceable
- Separation of power supply and contact circuits
- 35 mm width
- 35 mm bar mounting (EN 60715)
- Cadmium-free contacts
