| Hybrid inverter |
| Entry |
| Maximum power | 7.8 KW |
| Input voltage | 370 V |
| MPPT voltage range | 125 - 425 V |
| Maximum current | 13 + 13 A |
| Number of MPP trackers | 2 / 1 |
| Output (AC) |
| Maximum current | 30 A |
| Power | 6 KW |
| Voltage | 230V, L + N + PE |
| Network frequency | 50Hz / 60Hz |
| Battery |
| Voltage range | 40 - 60 V |
| Charge/discharge current | 135 A |
| Battery type | Lithium/Lead |
| Efficiency |
| Maximum efficiency | 97,6% |
| MPPT efficiency | 99,9% |
| Features |
| Dimensions | 330 x 580 x 232 mm |
| Weight | 24 Kg |
| Operating temperature | -40ºC~ +60ºC |
| Cooling | Passive |
| Noise | <35dB |
| IP Rating | IP65 |
| Model | SUN-6KSG03LP1-EU 11529 |
| Battery |
| Capacity | 120 Ah |
| Voltage | 51,2 V |
| Energy | 6.14 KWh |
| Charge/discharge current | Recommended: 60A; Maximum: 100A; Peak: 150A (2 minutes, 25°C) |
| Led indicator | 5 LEDs (SOC: 20% ~ 100%); alarm, protection |
| IP Rating | IP65 |
| Operating temperature | Charge: 0°C - 55°C; Discharge: -20°C - 55°C |
| Charge/discharge cycles | >6000 (<0.5C) |
| Communication | RS485, CAN 2.0 |
| Model | 11539 |
| Kit model | 100160 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.

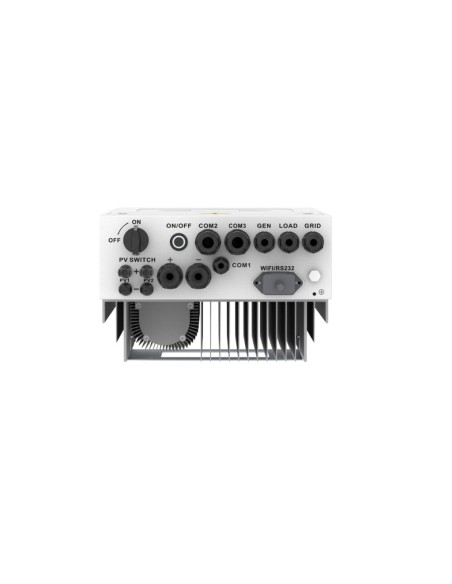

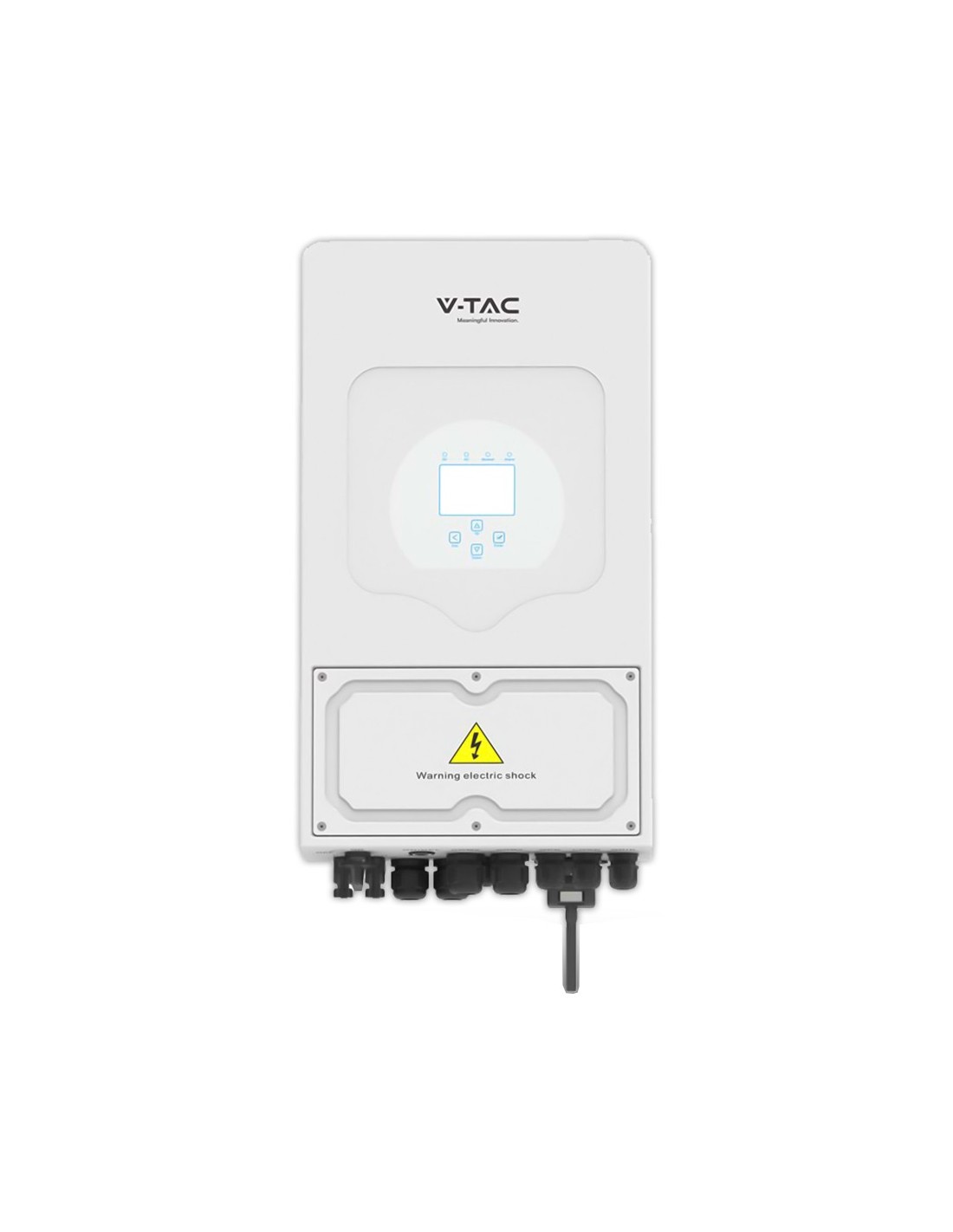

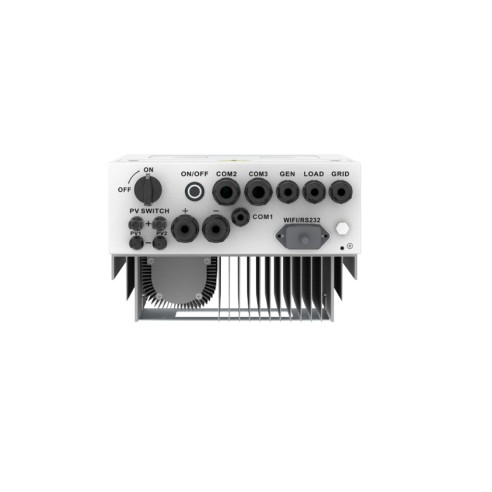

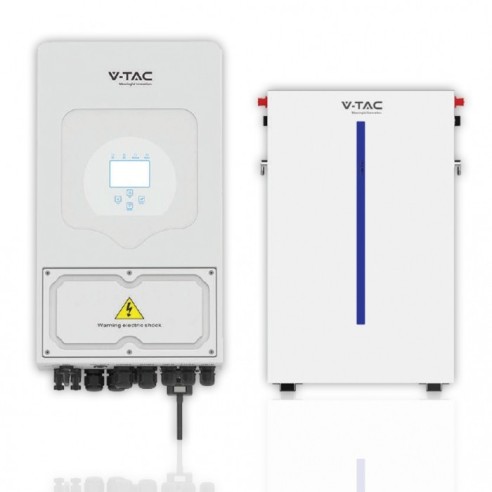

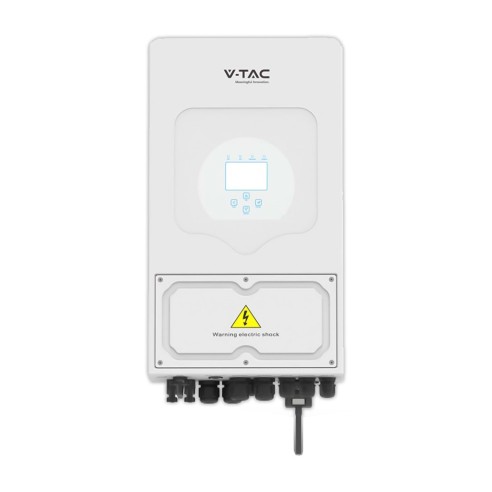

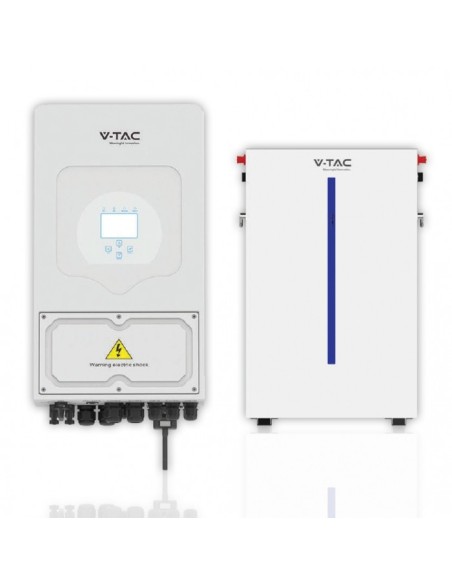

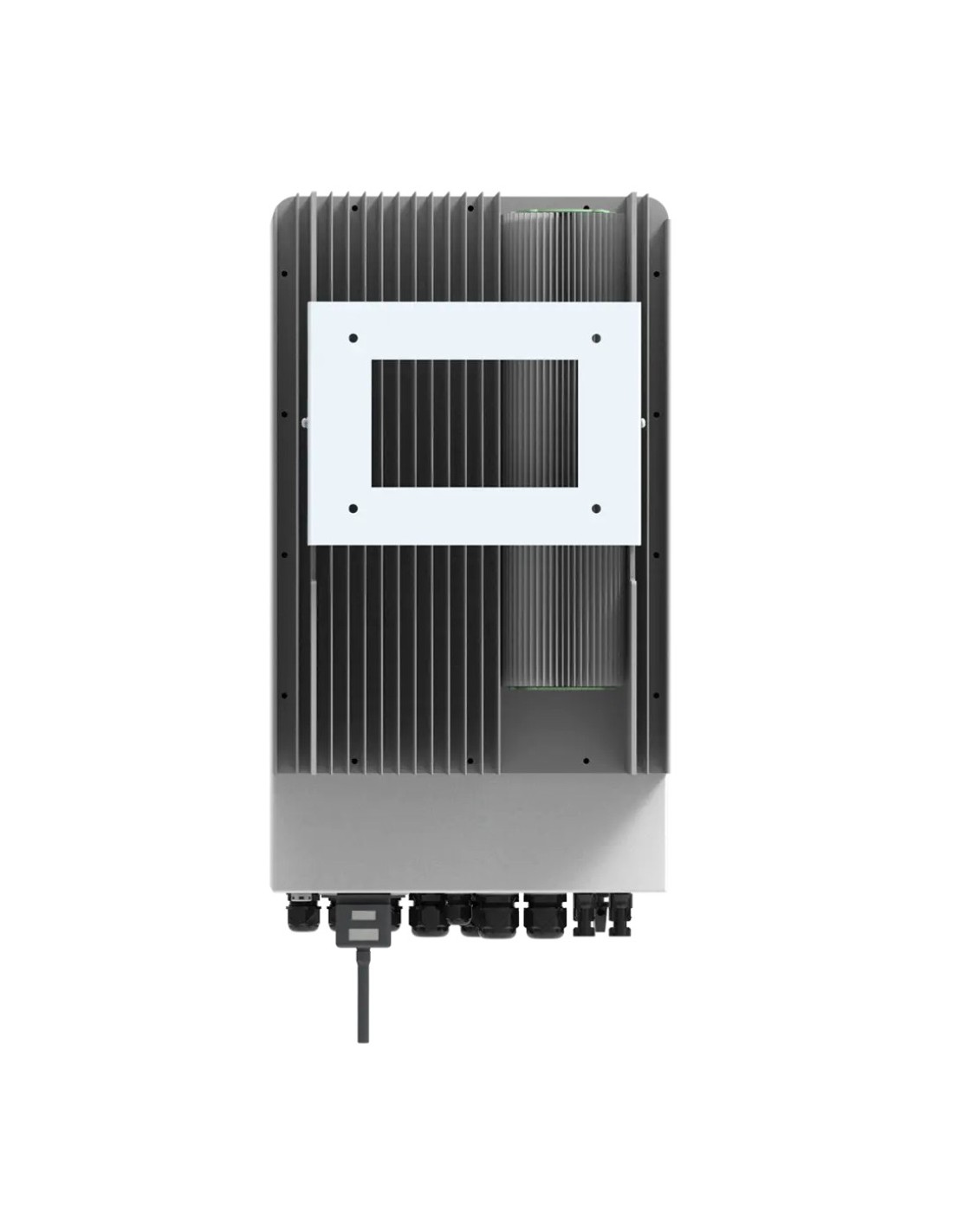

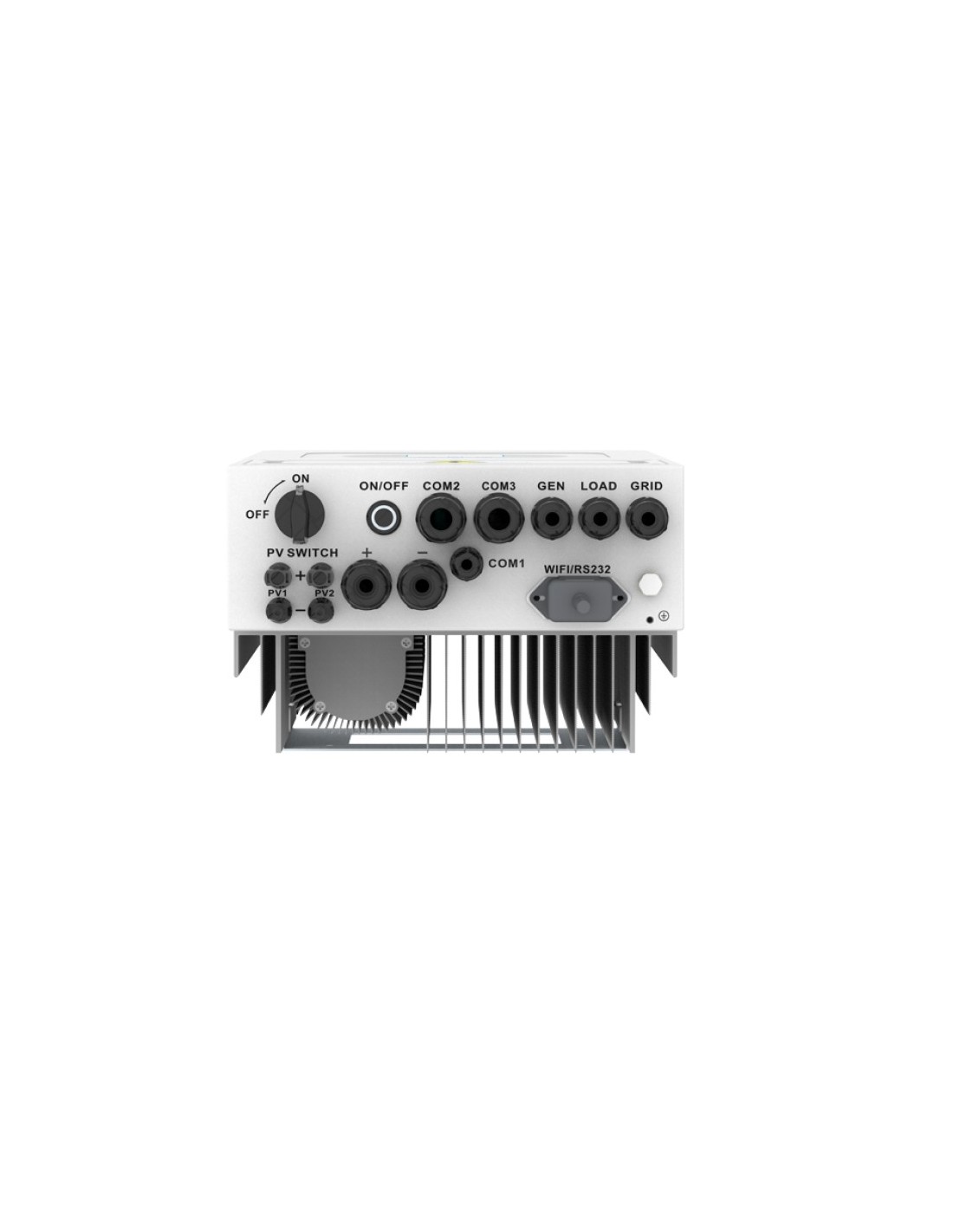

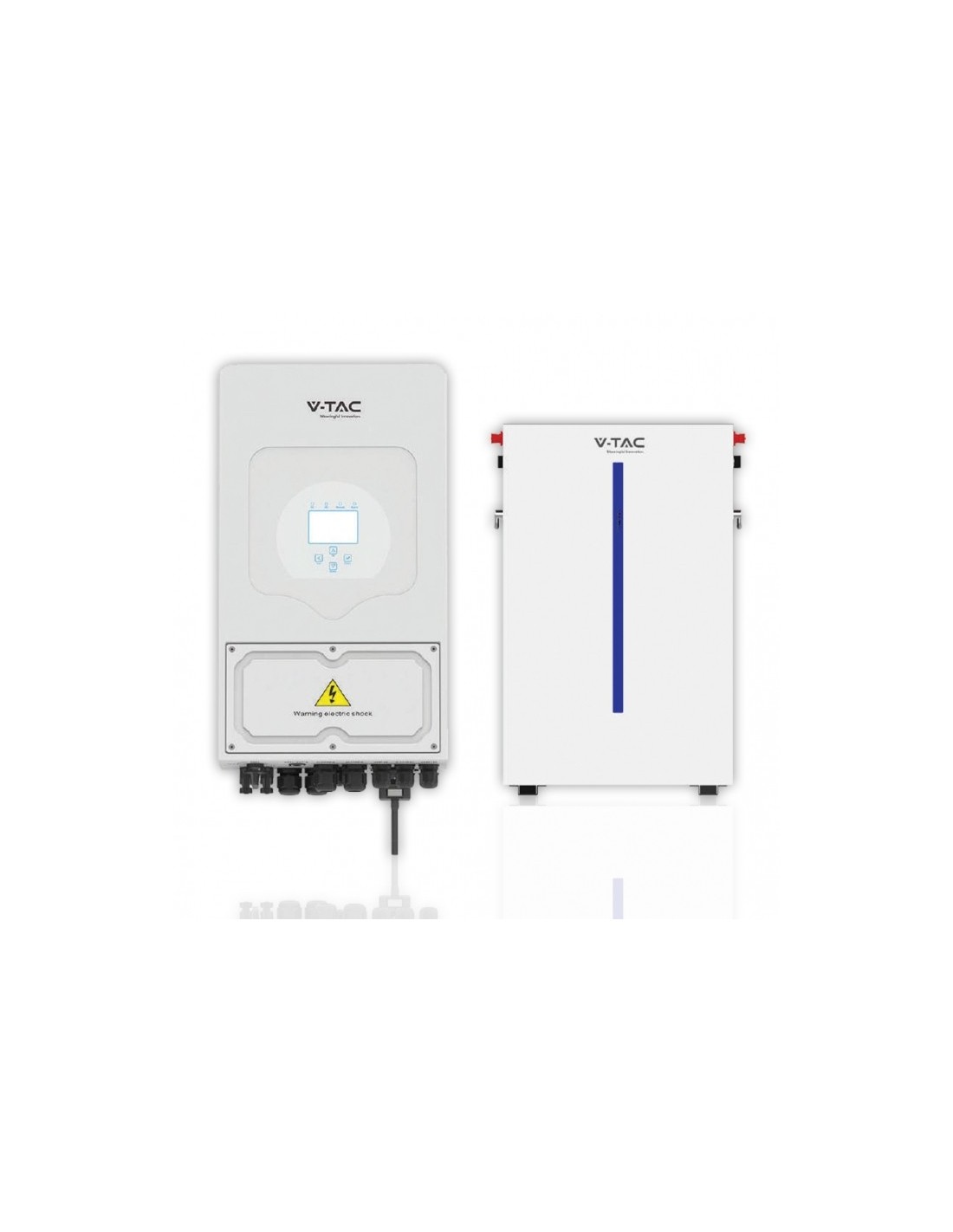

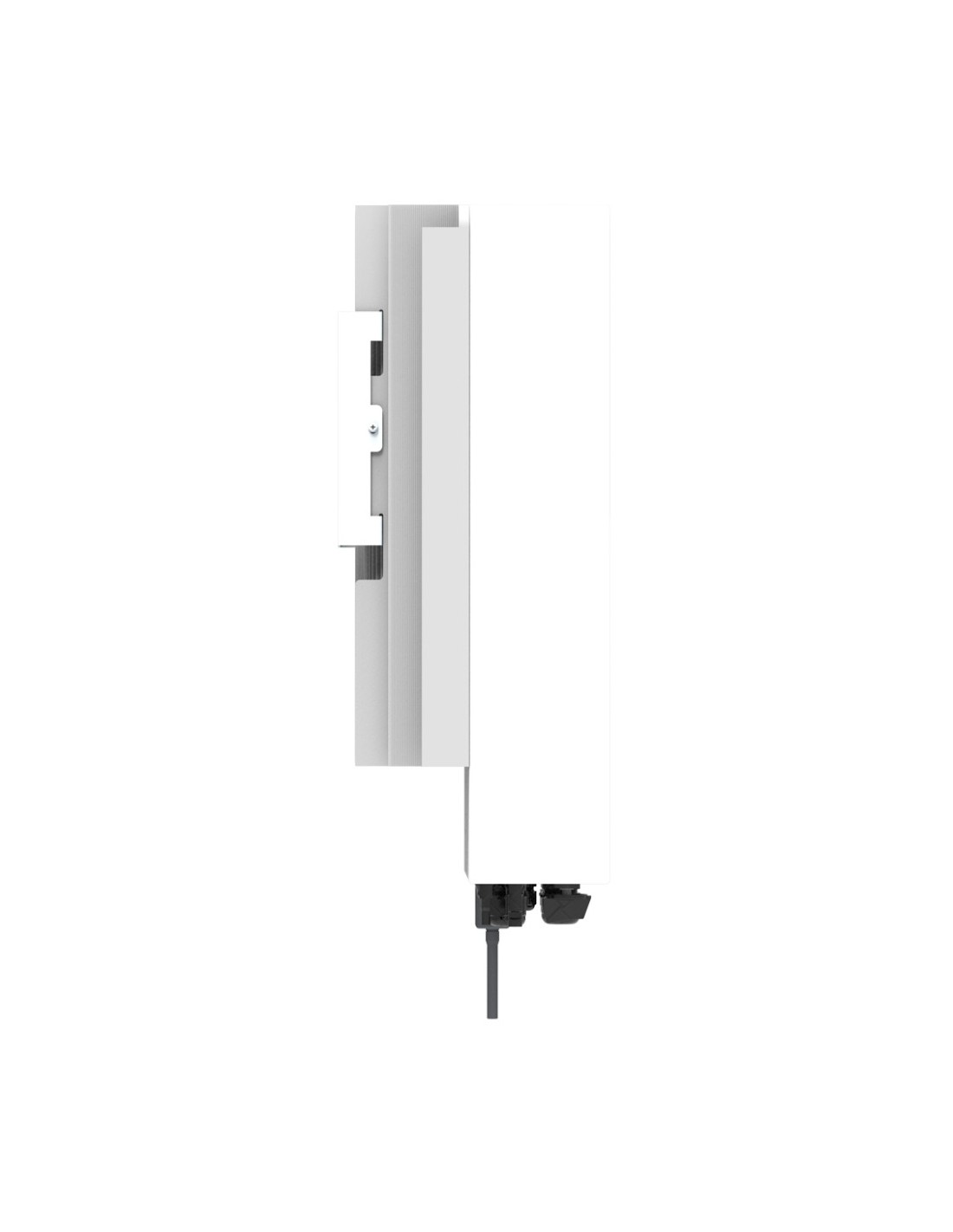

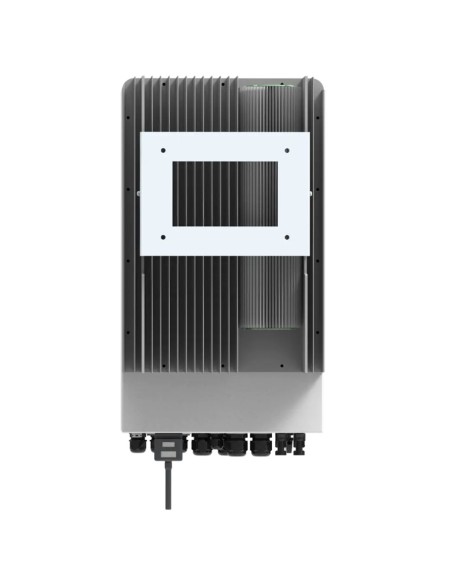

The 6kW Dual MPPT Single-Phase Hybrid Inverter is an electronic device that converts the direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for home or commercial consumption. This inverter has an integrated Smart Meter for current measurement: no need for an additional Smart Meter. It comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, RJ45 Cable and WiFi Dongle for remote monitoring.

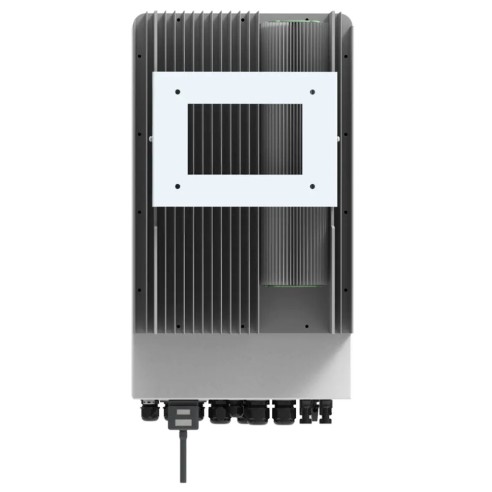

It is equipped with a colour LCD Touch Screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.

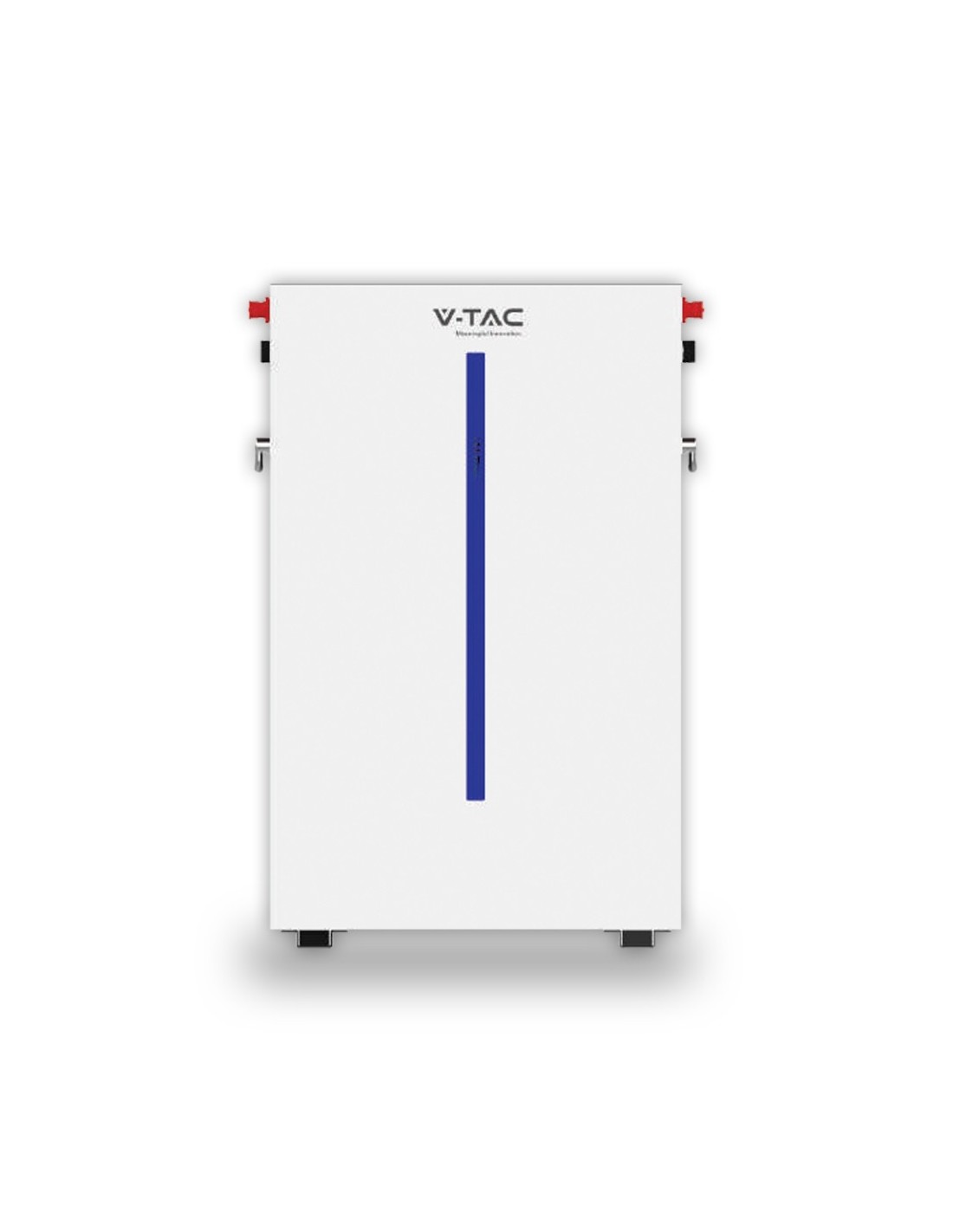

The LiFePO4 Battery for Photovoltaic Inverters 51.2V 120Ah, can store electricity up to a maximum capacity of 6.14kWh.
It has a 5-year warranty and a long service life: 6000 charge/discharge cycles.
This battery is equipped with wall mounting brackets and is therefore suitable for wall mounting.
