| Hybrid inverter |
| Entry |
| Maximum power | 9 KW |
| Input voltage | 550 V |
| MPPT voltage range | 80 - 500 V |
| Maximum current | 18,5 A |
| Number of MPP trackers | 2 / 2 |
| Output (AC) |
| Maximum current | 28 A |
| Power | 6 KW |
| Voltage | 220 / 230 V |
| Battery |
| Voltage range | 40 - 60 V |
| Charge/discharge current | 80 A |
| Battery type | Li-ion / Lead |
| Efficiency |
| Maximum efficiency | 97,6% |
| Communication |
| Display | LCD |
| Communication | RS485 / CAN / DRM / WIFI / 4G |
| Features |

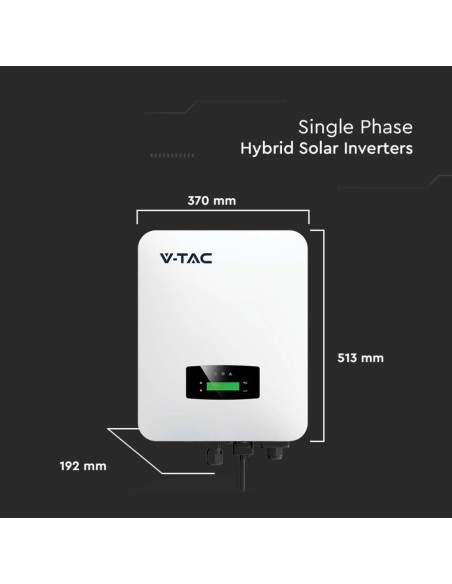

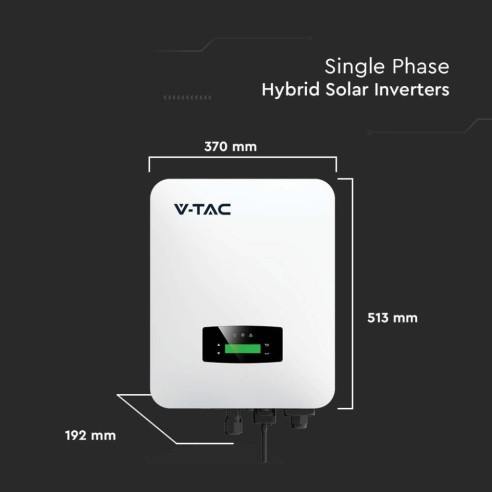

| Dimensions | 513 x 370 x 192 mm |
| Weight | 17 Kg |
| Operating temperature | -25ºC~ +60ºC |
| Cooling | Active |
| Noise | <25dB |
| Maximum operating altitude | 4000 m |
| IP Rating | IP65 |
| Stand-by consumption | <10W |
| Model | VT-6607106 11514 |

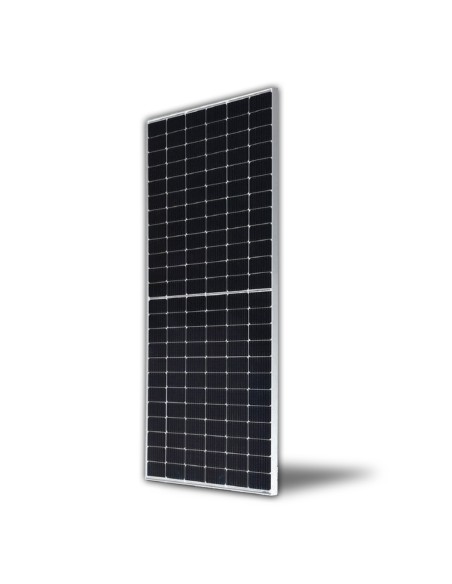

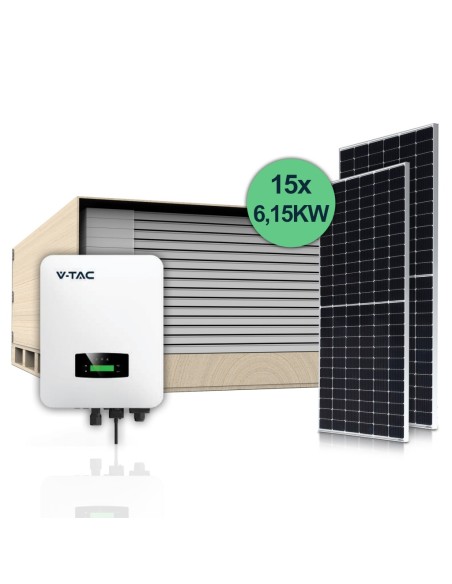

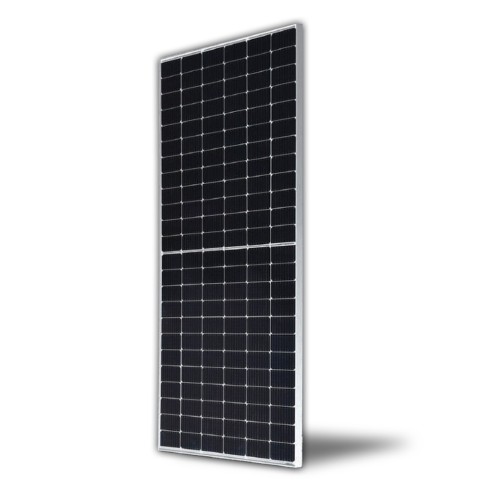

| Photovoltaic panels |
| IP Rating | IP68 |
| Producibility Guarantee | 85% in 25 years |
| Material | Aluminium alloy and tempered glass |
| Working temperature | -40 ~ +85°C |
| Panel dimensions | 1722 x 1134 x 35 mm |
| Photovoltaic module power | 410 W |
| Nominal power | 6.15 KW |
| Version | Silver |
| Model | VT-410 11552 |
| Kit model | 100176 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506;
- Single-phase Smart Meter for Energy Consumption Monitoring, V-tac VT-DDSU666 11545;
- Cables for connecting the inverter with the battery, V-tac 11628.
This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), VT-48100E-P2 11377 (5kWh Rack).

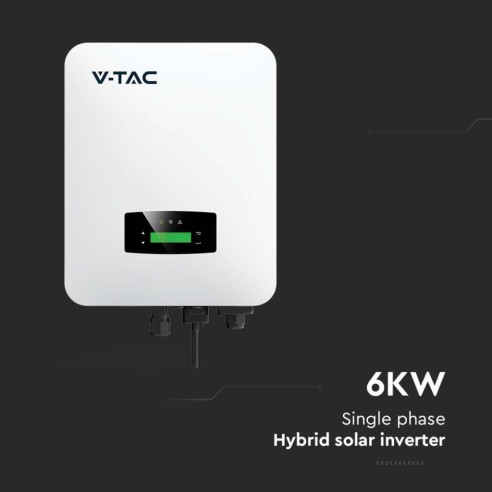

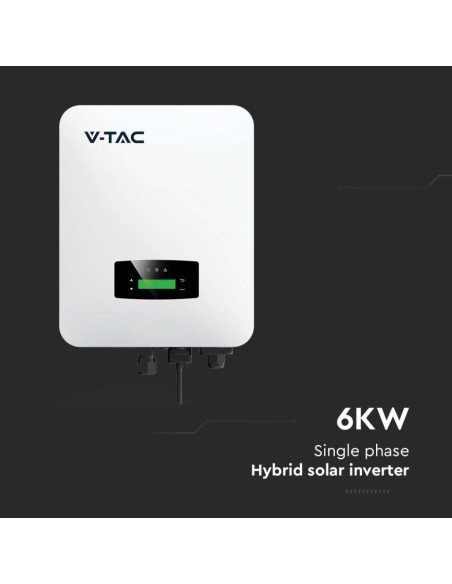

The Single Phase Hybrid Inverter 6kW Dual MPPT, is an electronic device that allows the conversion of direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for consumption in homes or commercial premises. This inverter comes complete with accessories: Smart Meter, CT Current Transformer, 2 pairs of MC4 Solar Connectors, Positive and Negative Cables for connection to the storage battery and WiFi Dongle for remote monitoring.

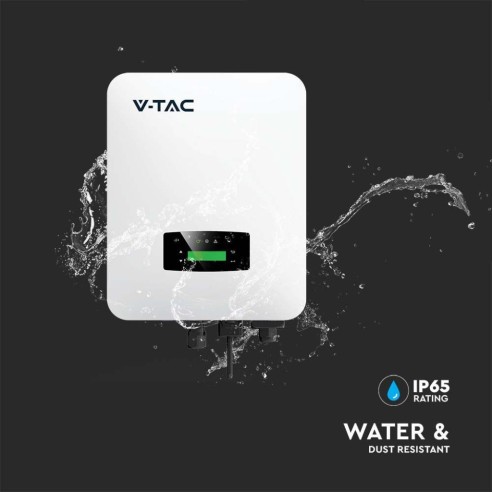

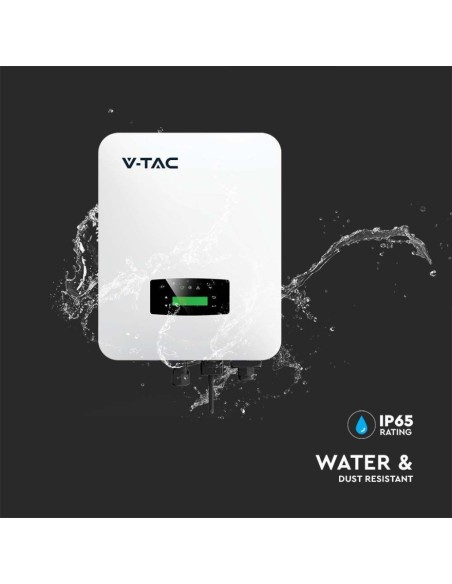

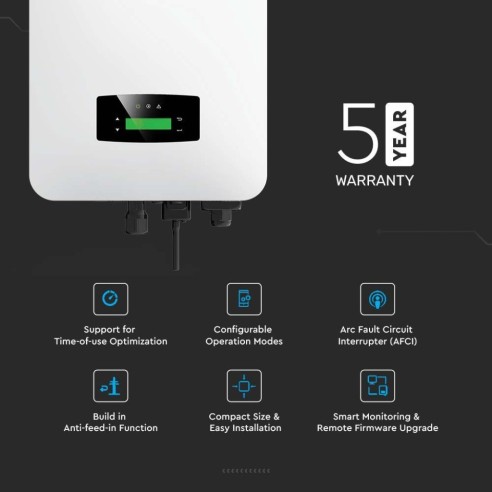

It is equipped with an LCD screen that allows you to interact with the settings. The degree of protection is IP65, so it can also be used outdoors.
