| Hybrid inverter |
| Entry |
| Maximum power | 7.8 KW |
| Input voltage | 370 V |
| MPPT voltage range | 125 - 425 V |
| Maximum current | 13 + 13 A |
| 13 + 13 A | 2 / 1 |
| Output (AC) |
| Maximum current | 30 A |
| Power | 6 KW |
| Voltage | 230V, L + N + PE |
| Network frequency | 50Hz / 60Hz |
| Battery |
| Voltage range | 40 - 60 V |
| Charge/discharge current | 135 A |
| Battery type | Lithium/Lead |
| Efficiency |
| Maximum efficiency | 97,6% |
| MPPT efficiency | 99,9% |
| Features |
| Dimensions | 330 x 580 x 232 mm |
| Weight | 24 Kg |
| Operating temperature | -40ºC~ +60ºC |
| Cooling | Passive |
| Noise | <35dB |
| IP Rating | IP65 |
| Model | SUN-6KSG03LP1-EU 11529 |
| Battery |
| Capacity | 200 Ah |
| Voltage | 51,2 V |
| Energy | 10.24 KWh |
| Charging voltage | 57,6 - 60 V |
| Charging current | 100 A |
| Discharge current | 100 A |
| Cut-off voltage | 36 - 48 V |
| Self-discharge | <3% / month |
| Operating temperature | -20°C - 70°C; Recommended: 10°C - 45°C |
| Charge/discharge cycles | >5000 (<0.5C) |
| Model | VT-12040 11447 |

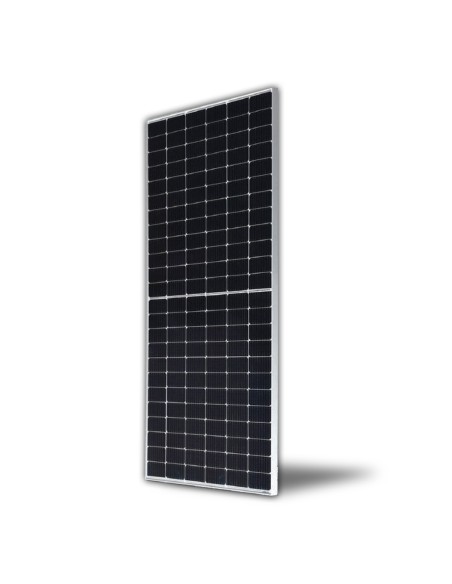

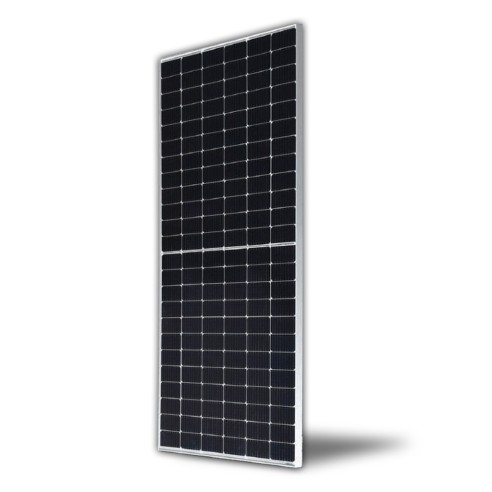

| Photovoltaic panels |
| IP Rating | IP68 |
| Producibility Guarantee | 85% in 25 years |
| Material | Aluminium alloy and tempered glass |
| Working temperature | -40 ~ +85°C |
| Panel dimensions | 1722 x 1134 x 30mm |
| Photovoltaic module power | 410 W |
| Nominal power | 6.15 KW |
| Version | Silver slim |
| Model | VT-410 11551 |

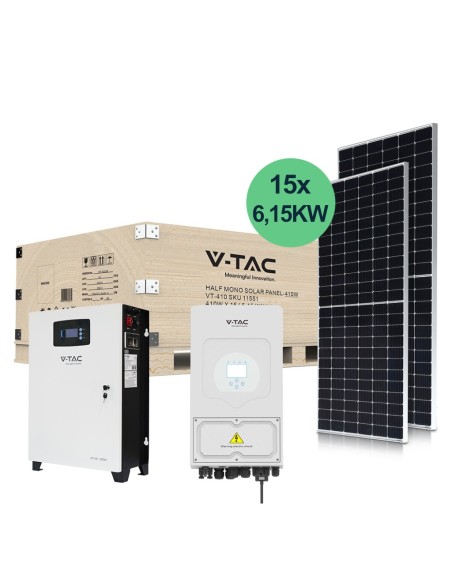

| Kit model | 100170 |
| Brand | V-TAC |
Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.
This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), 11539 (6kWh).

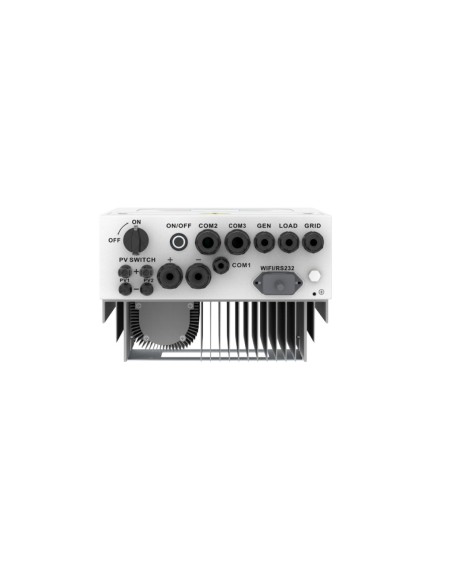

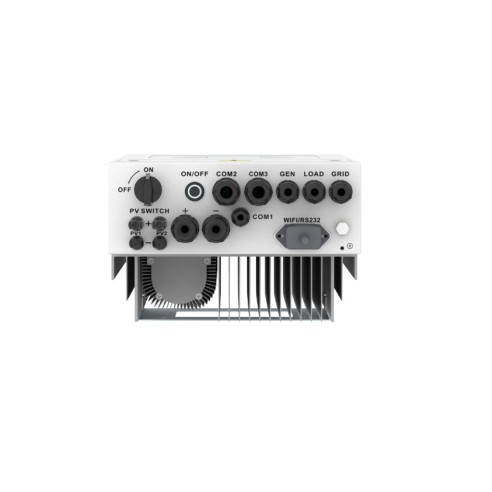

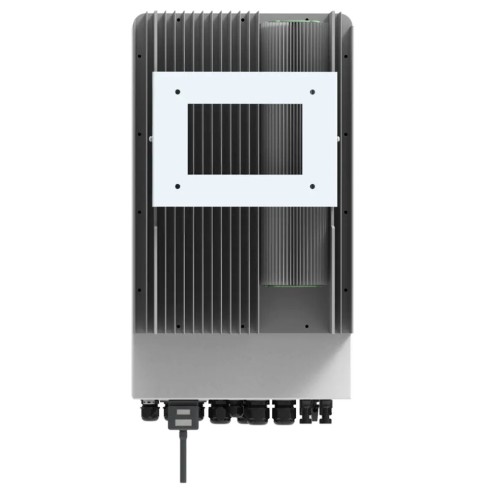

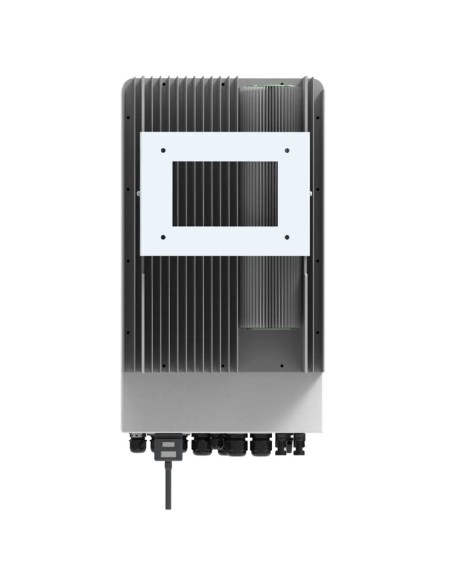

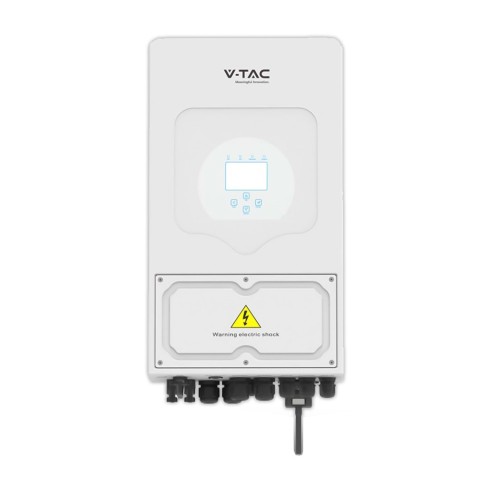

The Single Phase Hybrid Inverter 6kW Dual MPPT, is an electronic device that converts direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for home or commercial consumption. This inverter has an integrated Smart Meter for current measurement: no need for an additional Smart Meter. It comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, RJ45 Cable and WiFi Dongle for remote monitoring.
It is equipped with a colour LCD Touch Screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.
The LiFePO4 Battery for Photovoltaic Inverters 51.2V 200Ah, can store electricity up to a maximum capacity of 10.24kWh.
It has a 5-year warranty and a long service life of 5000 charge/discharge cycles.
This storage battery is compatible with single-phase and three-phase Hybrid Inverters:
VT-66036103 11374;
VT-6606103 11508;
SUN-5KSG03LP1-EU 11547;
VT-6605103 11376;
VT-6606 115086;
VT-6607106 11514;
SUN-6KSG03LP1-EU 11529;
SUN-10K-SG04LP3-EU 11542;
SUN-12K-SG04LP3-EU 11543;
And in general with inverters of the following brands:
Must Power System, Senergy, Invt, Afore, Growcol, Sol-Ark, Srne, Voltronic Power, Studer, Sunpro power, LuxPower, Solis, Phocos, Livoltek, Deye, Sma, Goodwe, Megarevo and many others
Up to 4 batteries can be connected in parallel for each device
