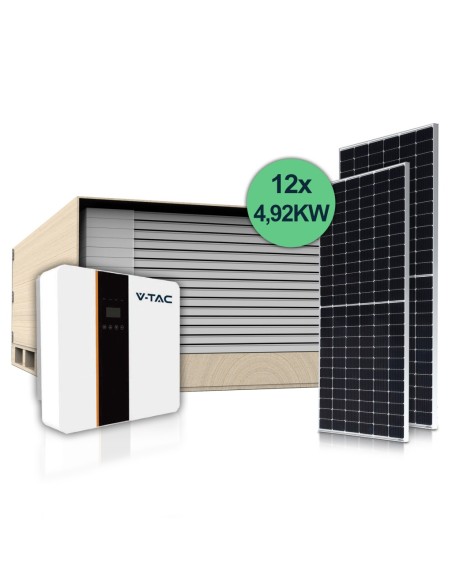

5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175
5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175

5kW Photovoltaic Kit with Single Phase Hybrid Inverter (11508) and 12 410W Monocrystalline Solar Panels (11550) - V-TAC 100175

65.025.0000013
Out-of-Stock
€4,129.50
Tax included

Description

Hybrid inverter
Entry
Maximum power7 KW
Input voltage550 V
MPPT voltage range125 - 500 V
Maximum current14 A
Number of MPP trackers2
Output (AC)
Maximum current21,7 A
Power5 KW
Voltage230V, L + N + PE
Voltage range176 ~ 270 V
Network frequency50Hz / 60Hz
THDi<3%
Output (EPS)
Power5 KVA
Voltage230 Vac
Current21,7 A
Frequency50Hz / 60Hz
Overload capacity110%, 30s / 120%, 10s / 150%, 0.02s
THDu<2%
Battery
Voltage range40 - 58 V
Maximum charging voltage58 V
Charge/discharge current95 A / 104.2 A
Battery typeLi-ion / Lead
CommunicationRS485, CAN
Efficiency
Maximum DC efficiency97,6%
MPPT efficiency99,9%
Battery charging/discharging efficiency95%
Communication
DisplayLCD
CommunicationStandard: RS485 / CAN / DRM; optional: WIFI / 4G
Features

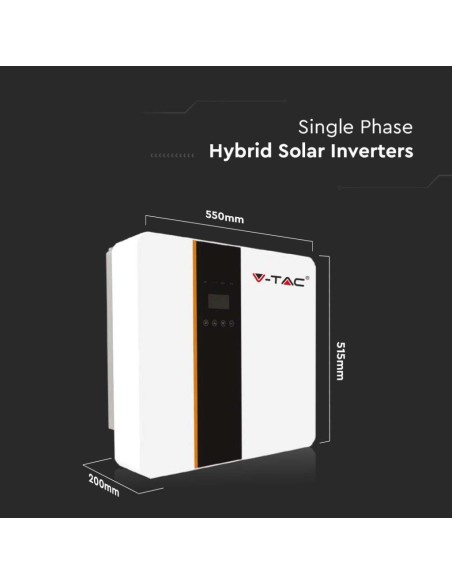

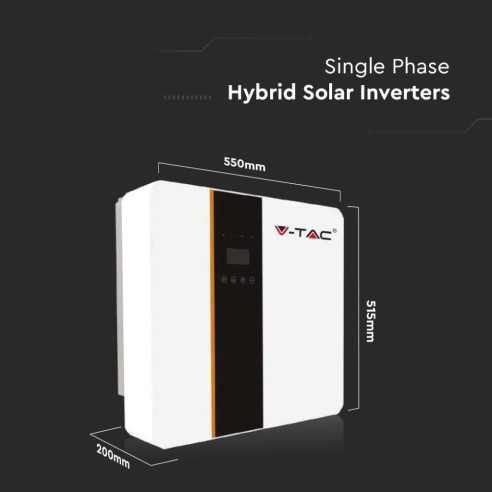

Dimensions550 x 515 x 200 mm
Weight25 Kg
Operating temperature-25ºC~ +60ºC
CoolingPassive
Noise<35dB
Maximum operating altitude2000 m
IP RatingIP65
Stand-by consumption<3W
ModelVT-6606103 11508

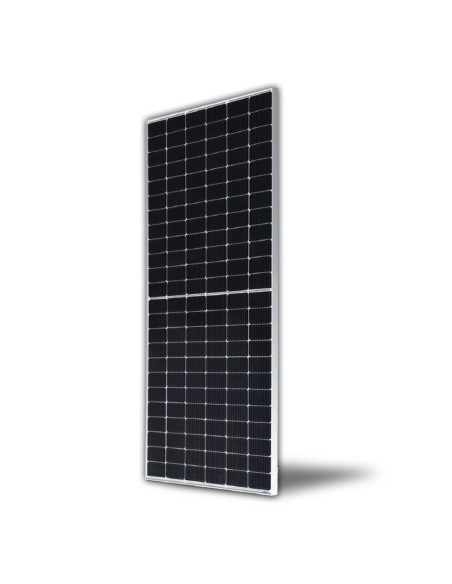

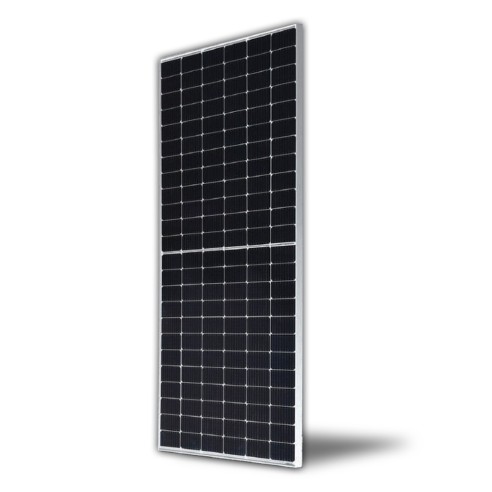

Photovoltaic panels
IP RatingIP68
Producibility Guarantee85% in 25 years
MaterialAluminium alloy and tempered glass
Working temperature-40 ~ +85°C
Panel dimensions1722 x 1134 x 35 mm
Photovoltaic module power410 W
Nominal power4.92 KW
VersionSilver
ModelVT-410 11550
Kit model100175
BrandV-TAC

Accessories included:
- WiFi Stick Logger for Inverter, V-tac VT-660000 11378;
- 2 Pairs of MC4 Solar Cable Connectors, V-tac 11413;
- CT Current Transformer for Current Measurement, V-tac 11506.

This inverter is hybrid, so it can work with or without batteries.
Compatible with V-Tac 48V batteries, VT-5139 11448 (5kWh), VT-10240 11447 (10kWh), VT-48100E-P2 11377 (5kWh Rack).

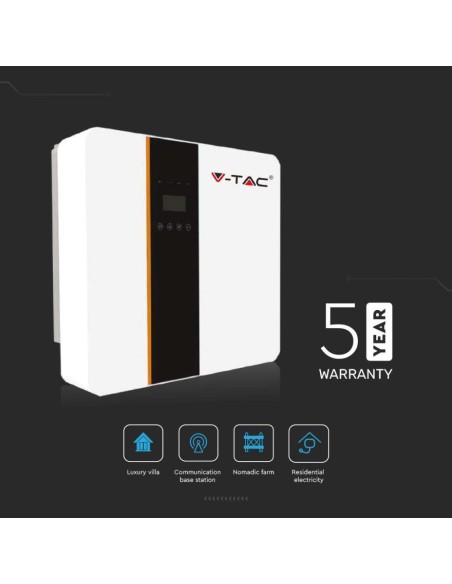

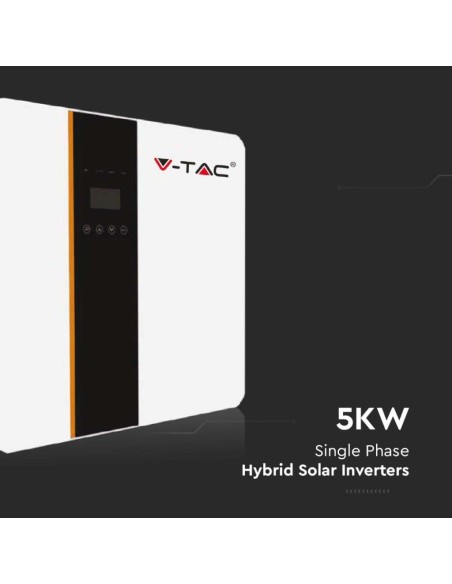

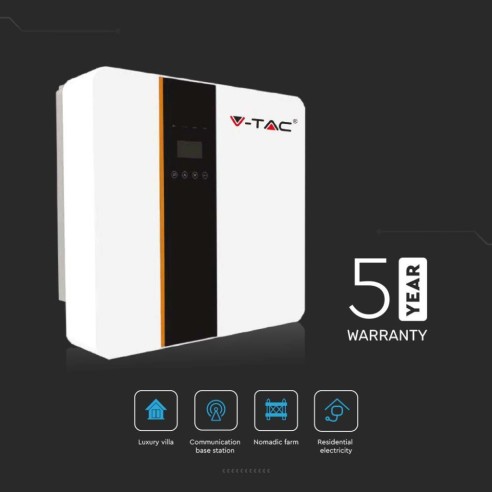

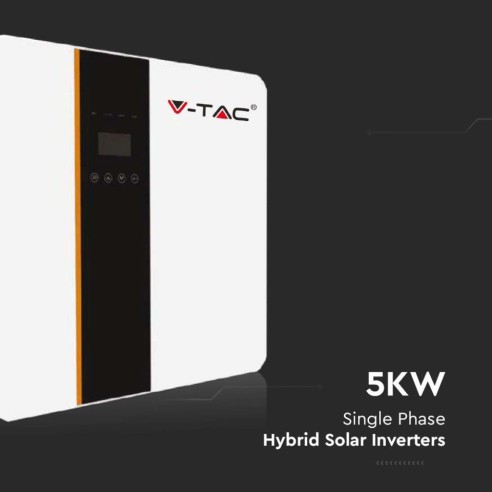

The 5kW Dual MPPT Single Phase Hybrid Inverter is an electronic device that converts the direct current supplied by photovoltaic solar panels into alternating current, with a single-phase output suitable for consumption in homes or commercial premises. This inverter comes complete with accessories: CT Current Transformer, 2 pairs of MC4 Solar Connectors, USB Cable and WiFi Dongle for remote monitoring.

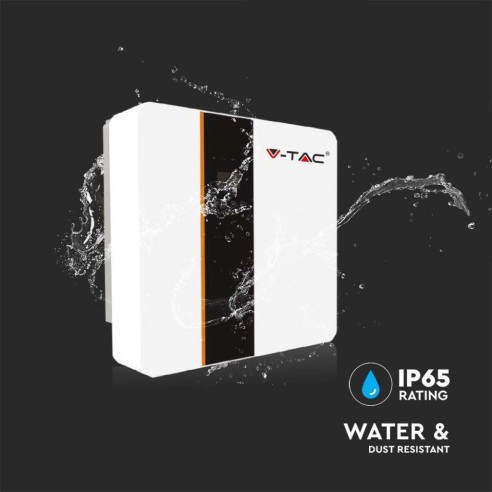

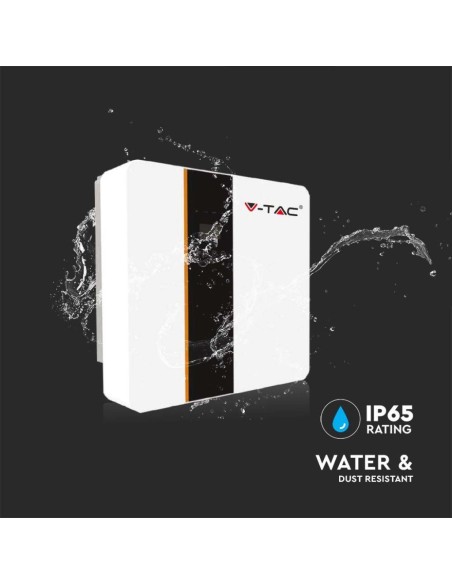

It is equipped with an LCD screen that allows you to interact with the settings. Integrated Zero Emission function. Heat dissipation is via radiators thus ensuring low noise. Equipped with charge/discharge protection. The degree of protection is IP65, so it can also be used outdoors.

Product Details

Capacity - Wh
Battery not included
Brand
V-TAC
Electrical system
Single-phase
Potenza massima
5 KW
Products included
Inverters, photovoltaic panels
Photovoltaic module power
410 W
